A-TS Latch Deadbolt 2 Hooks Automatic Locking Multipoint Door Lock

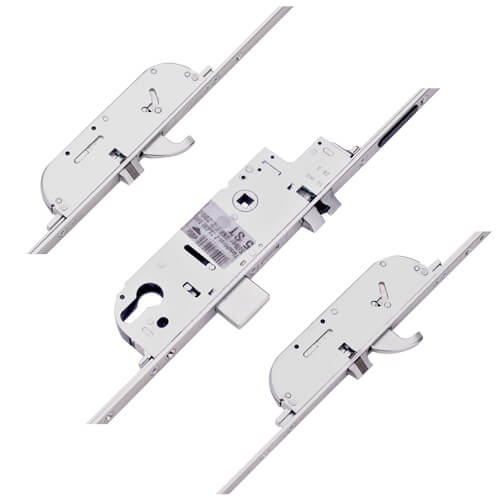

Product Overview: Maco A-TS Multipoint Door Lock

The Maco A-TS multipoint door lock is engineered for security and convenience, featuring a robust design with 2 hooks, 1 deadbolt, 1 latch, and 2 autolatches. This innovative locking system ensures maximum protection while offering versatile opening options.

Key Features:

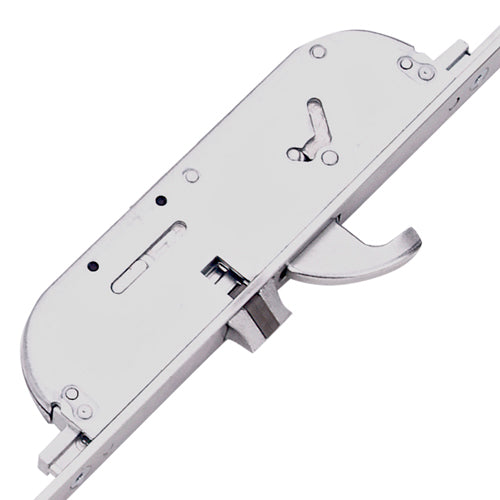

• Automatic Locking Mechanism: The A-TS lock engages automatically upon closing the door, securing it in three places—two hooks and a deadbolt—without the need for a key.
• Enhanced Door Seal: The locking system provides immediate and consistent gasket compression, effectively sealing the door against draughts and moisture.
• Magnetic Trigger System: A built-in magnetic trigger ensures all latches engage perfectly every time the door is closed.
• Interchangeable Design: The A-TS lock is compatible with the earlier Maco Z-TA model, allowing for easy upgrades or replacements.

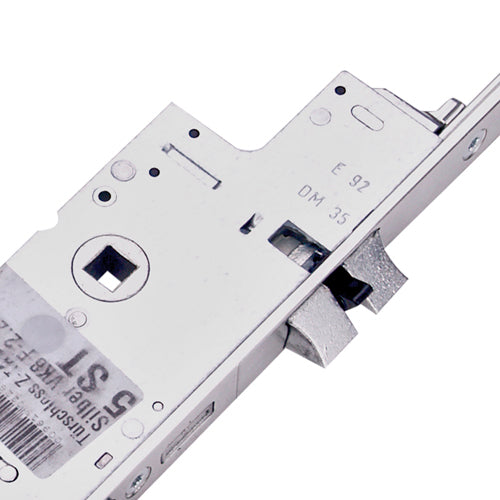

• Compact Gearbox: Measuring 202mm high, the A-TS gearbox is one of the smallest available, featuring a unique "soft" latch design.

Specifications:

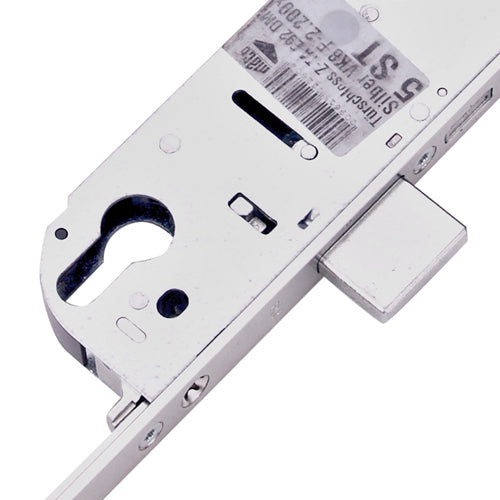

• Latch and Deadbolt Dimensions: Both measure 30mm high, with a spacing of 55mm between them.
• Screw Placement: The top screw to the center measures 102mm, while the center to the bottom screw measures 110mm.
• Backset Measurement: When measuring the backset, account for an additional 2-3mm for the faceplate.

Operation Instructions:

• To Lock: Simply close the door. The latches will engage the hooks and deadbolt automatically.
• To Unlock: Use a key from the outside or a thumbturn/handle from the inside. A single key turn will unlock the mechanism.
• Deadlocking: For added security, turn the key to deadlock the mechanism after closing the door.

Associated Products:

We offer a variety of accessories for the Maco A-TS multipoint door lock, including keeps, spindles, handles, and more, ensuring you have everything needed for a complete installation.

This lock is suitable for various door types, including UPVC, aluminum, timber, and composite doors, making it a versatile choice for any security needs.

Product Specification

• Manufacturer: Maco
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Autolatches: 2
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1490mm
• Height: 1750mm
• Top Hook to Spindle: 730mm
• Bottom Hook to Spindle: 760mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines:

To ensure accurate measurements for your Maco A-TS multipoint door lock, follow these guidelines:

Backset Measurement:

1. Measure from the edge of the door to the center of the keyhole or cylinder.
2. Add an additional 2-3mm for the faceplate thickness.

Centres PZ Measurement:

1. Measure the distance from the center of the keyhole to the center of the handle spindle.
2. Ensure this measurement is consistent for proper alignment.

Faceplate Measurement:

1. Measure the width and height of the existing faceplate.
2. Ensure compatibility with the Maco A-TS lock for a seamless fit.

These measurements are crucial for a successful installation and optimal performance of your door lock system.
