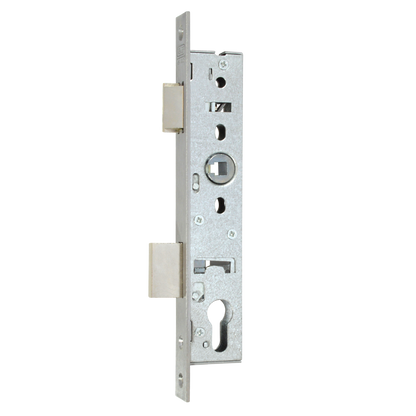

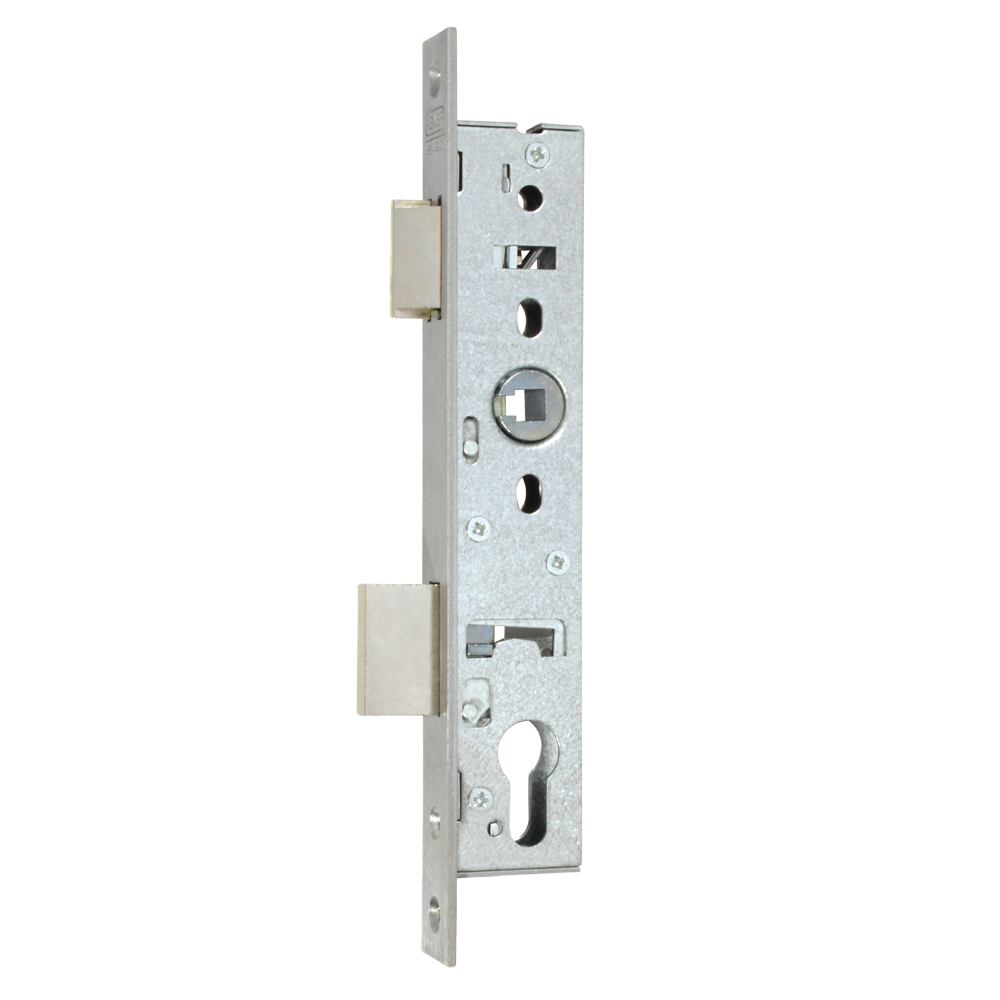

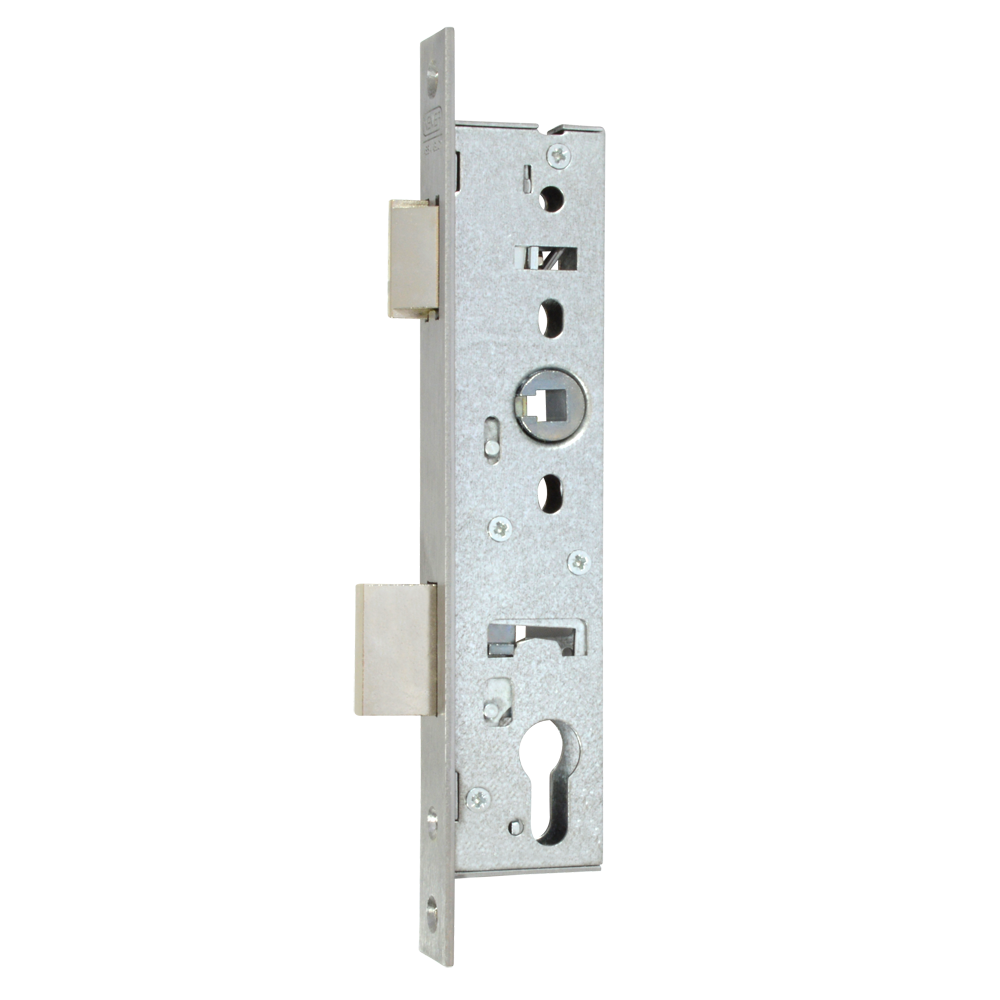

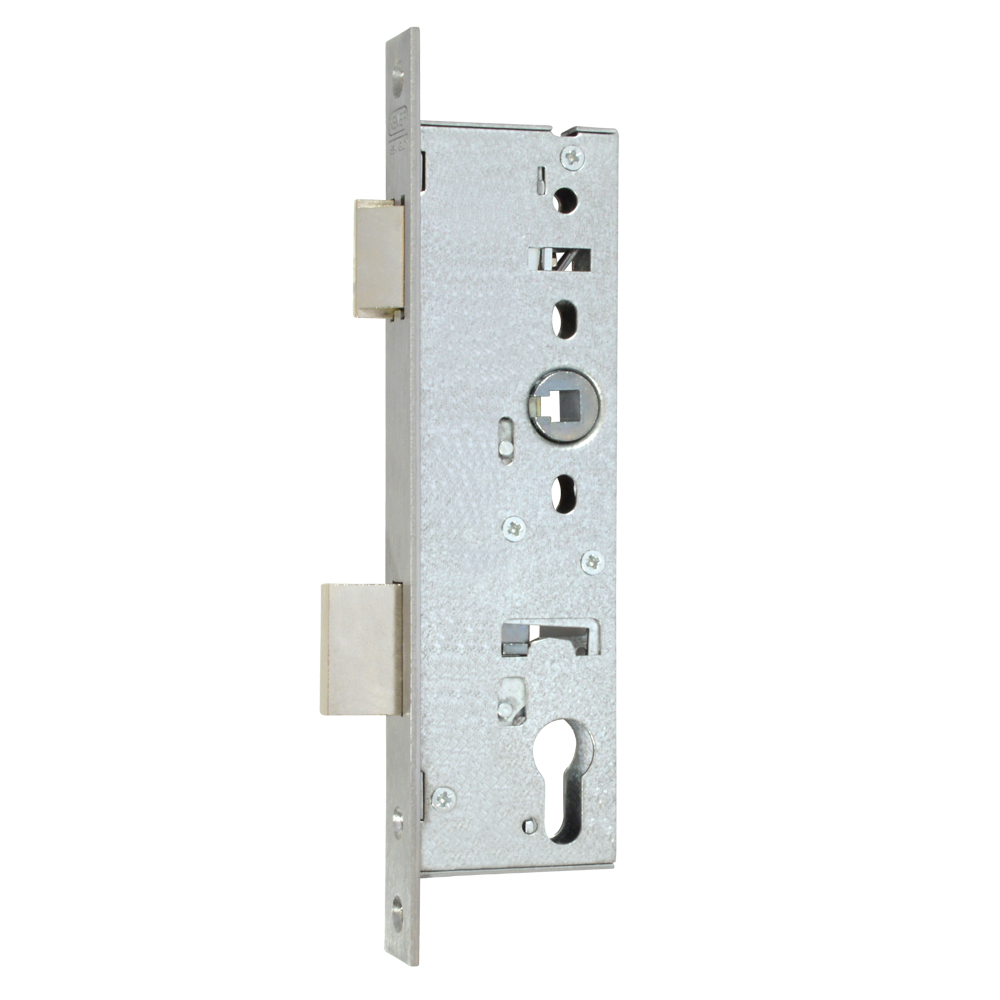

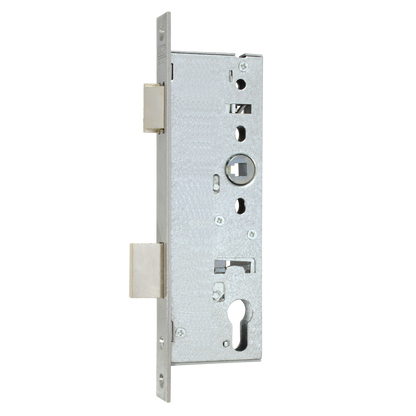

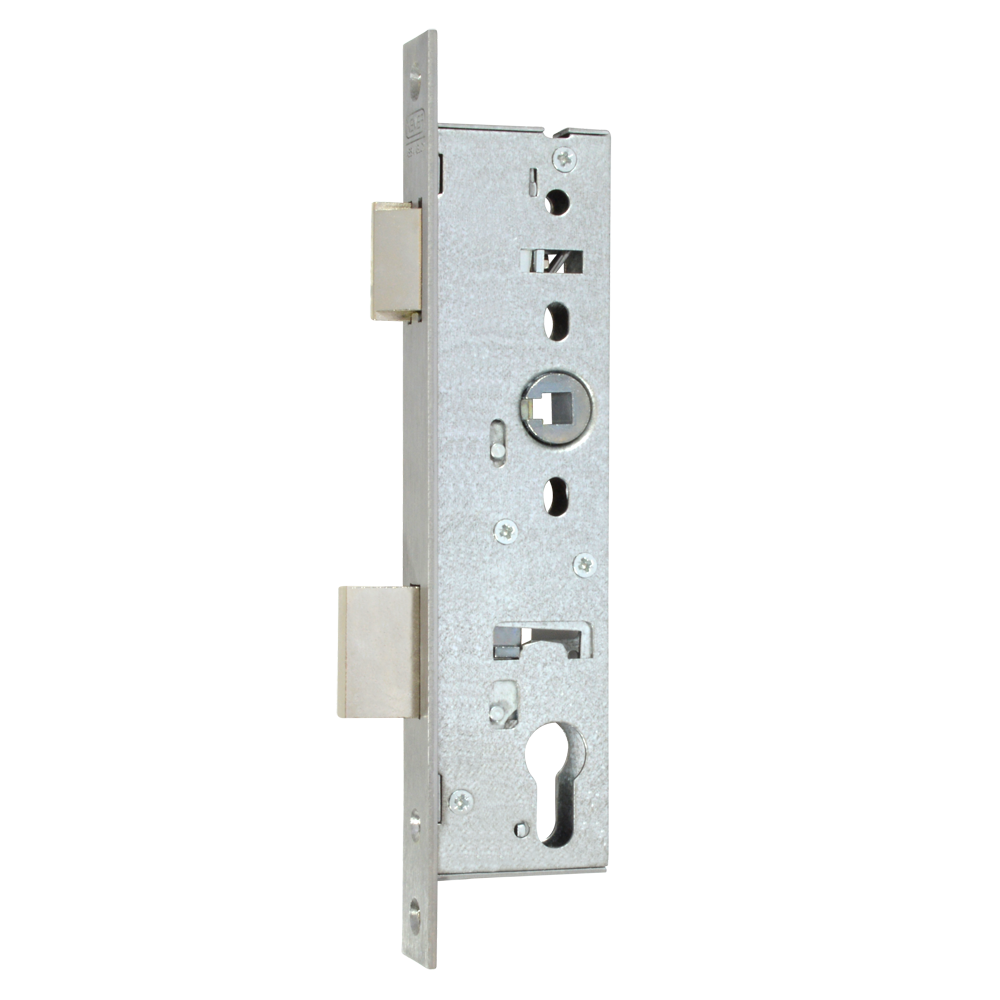

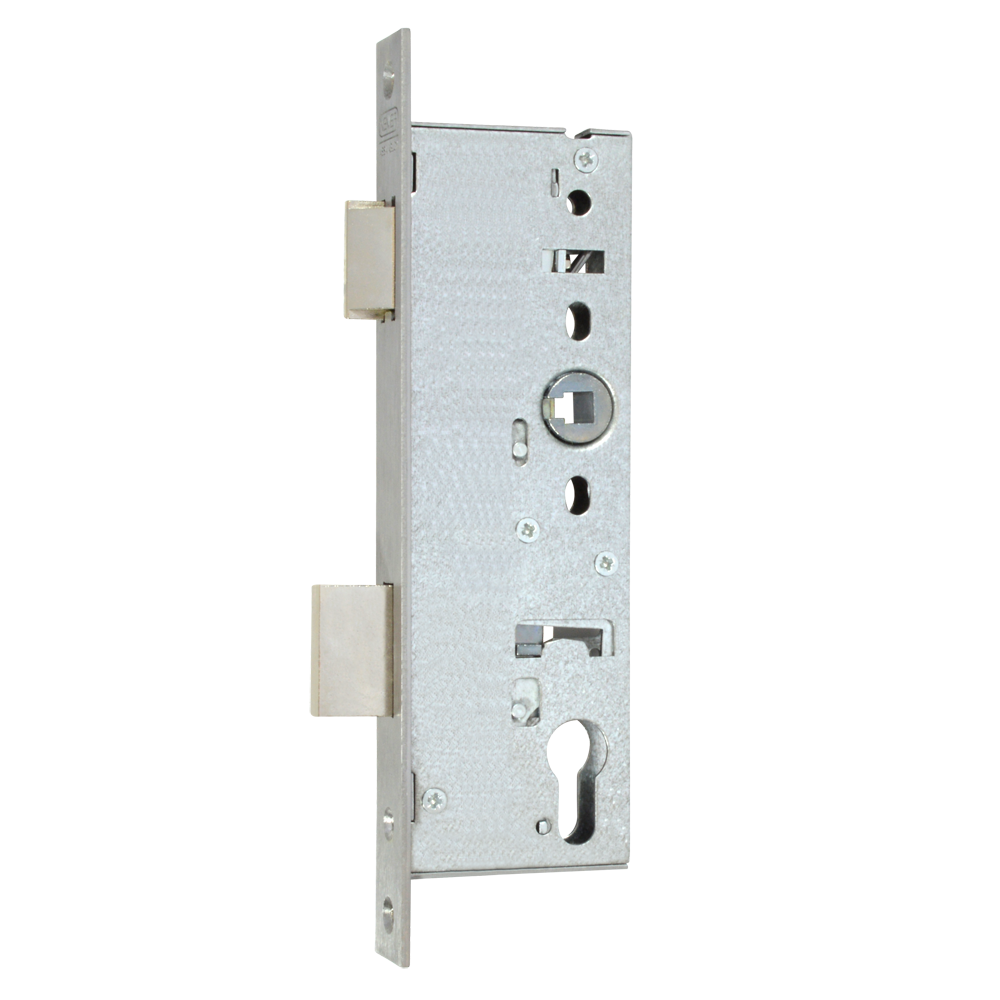

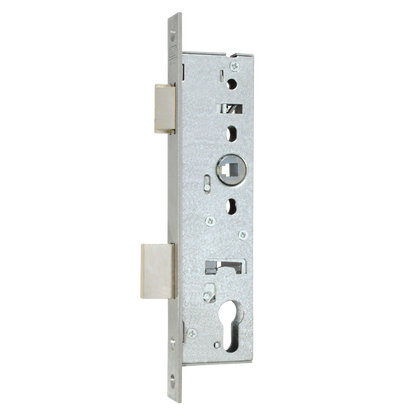

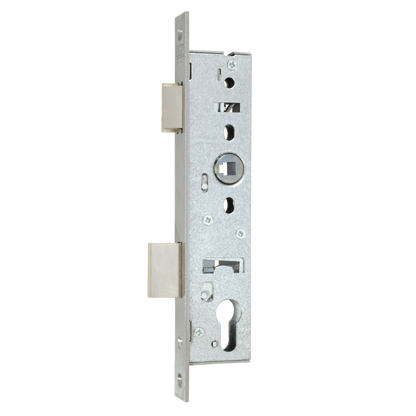

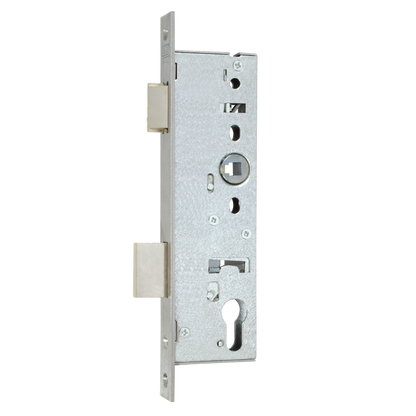

The NEMEF 9600 Euro Sashcase is a versatile locking solution designed specifically for aluminum doors. With options for backsets of 25 mm, 30 mm, 35 mm, or 40 mm and a standard 92 mm center, this narrow stile sash lock is engineered for efficiency and security.
Key Specifications
Backset Options: 25mm, 30mm, 35mm, 40mm
Center Measurement: 92 mm
Case Dimensions:
Height: 198 mm
Width: 24 mm
Faceplate Width: 24mm
Operation: Single spindle with latch and deadbolt functionality
Handing
The latch can be easily reversed to accommodate different door configurations. Simply remove the faceplate, reverse the latch, and reattach the faceplate for seamless adaptability.
Operation
Locking Method: Sash 2
Functionality: The deadbolt is operated by the cylinder, while the latchbolt can be engaged via the handle or cylinder, ensuring flexibility in operation.
Features
Standard sashlock operation
Single throw deadbolt for enhanced security
Key action on the latch bolt for added convenience
Reversible design for easy installation
Euro profile lock case, ideal for modern aluminium doors
This lock combines practicality with robust security features, making it an excellent choice for both residential and commercial applications.
