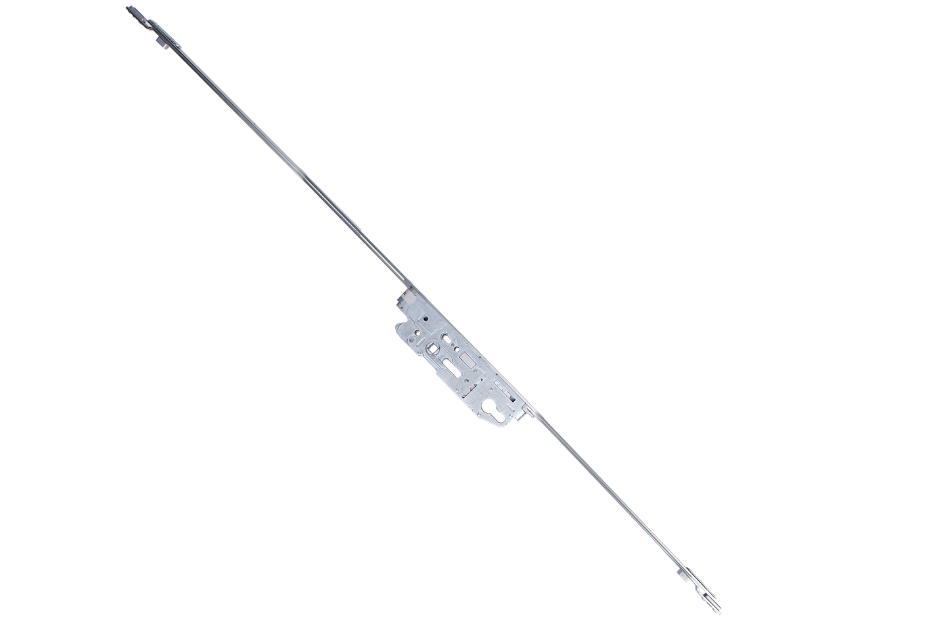

870 Type 8 Passive Deadbolt Emergency Exit & Panic Door Lock

The FUHR 870 Emergency Exit Passive Panic Multipoint Door Lock is an essential component for ensuring safety and compliance in emergency exit scenarios. Specifically designed for the passive leaf of French doors, this lock integrates seamlessly into emergency exit arrangements, providing reliable panic operation.

This lock is engineered to meet the EN 1125 standard for double doors, requiring the use of the 870 EN 1125 passive lock in conjunction with a standard master leaf setup. Its design features no locking points, allowing it to function effectively as the passive lock within the overall door system.

Operation:

• Locking: To secure the door, simply lift the handle upwards to engage the locking points, followed by turning the key to lock the system.

• Unlocking: To unlock, turn the key to release the system, then push the handle downwards to disengage the locking points and retract the latch.

Specifications:

• 92mm centres
• Flat 16mm square-ended faceplate
• Single 9mm spindle
• Non-handed operation

Key Features:

• Facilitates emergency or panic escape at all times when installed correctly
• Designed for use as part of an EN 1125 Panic Exit or EN 179 Emergency Exit door set
• Compatible with the 870 or 871 Type 8 for the master door
• Euro profile lock case
• Ideal for the passive leaf on a pair of doors

This lock not only enhances security but also ensures that safety protocols are met, making it a vital addition to any emergency exit system.
