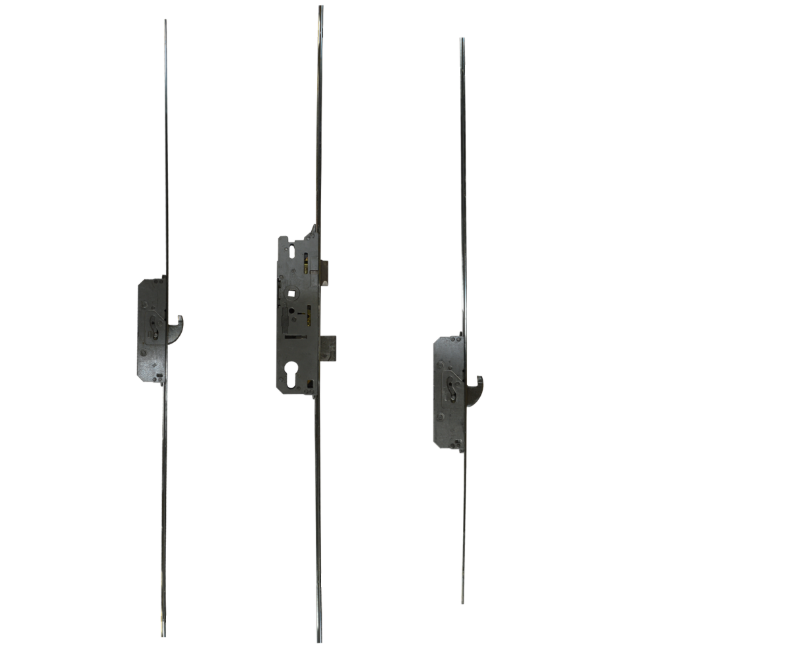

859 Type 3 Lever Operated Latch & Deadbolt 20mm Faceplate 2 Hook

The FUHR 859 Type 3 Lever Operated Latch & Deadbolt is a robust locking solution designed for security and convenience. Here’s a detailed overview of its features and specifications:

Key Specifications

• Faceplate Dimensions: 20mm wide and 2170mm long, suitable for composite and timber doors.
• Backset: 45mm
• Centres: 92mm
• Case Dimensions:
  • Height: 200mm
  • Width: 60mm
• Locking Points: Incorporates 2 hooks along with the latch and deadbolt.

Identification

• The faceplate prominently features "FUHR" stamped into it, ensuring authenticity.

Gearbox Features

• The gearbox includes a split spindle design, enhancing flexibility in operation.
• Case height and width are optimized for durability and performance.

Additional Locking Points

• The full-length strip adds security with 2 additional hooks, providing enhanced protection.

Locking Point Distances

• Distance A: 736mm
• Distance B: 754mm

Croppable Design

• The unit is croppable, allowing for height adjustments to fit various door sizes seamlessly.

Handing

• The latch can be easily reversed by adjusting the Allen screw located on the side of the lockcase, providing versatility for installation.

Sprung Mechanism

• The gearbox features an internal spring mechanism, ensuring smooth lever return without the need for additional sprung handles.

Operation

• Locking Method:
  • Lift the lever to engage the locking mechanisms.
  • Turn the cylinder one full turn to lock.
  • To unlock, turn the key one full turn and push down on the lever.

Features Summary

• Euro profile lock case
• Split spindle design
• Reversible handing for installation flexibility
• User-friendly operation with clear locking and unlocking instructions

This locking system combines advanced security features with ease of use, making it an excellent choice for both residential and commercial applications.
