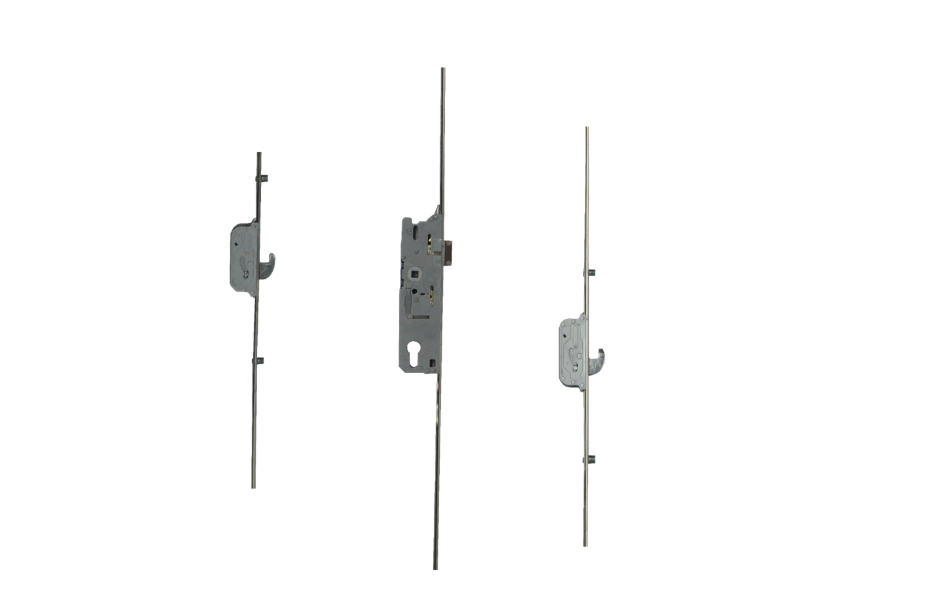

859 Type 19 Lever Operated Latch & Deadbolt - 2 Hook & 4 Roller

The FUHR 859 Type 19 Lever Operated Latch & Deadbolt is designed for optimal security and ease of use, featuring a robust construction with a 35mm backset and 92mm centres. This unit is perfect for UPVC applications, thanks to its 16mm wide faceplate and full-length strip that includes 2 hooks and 4 rollers for additional locking points.

With a case height of 200mm and a width of 50mm, the latch and deadbolt gearbox incorporates a split spindle mechanism, ensuring reliable operation. The internal sliding strip is engineered with a small notch that engages a spring-loaded ball bearing, providing a secure and defined locking action when the handle is operated.

Key Features:

• Accreditation: Backed by a 10 Year Guarantee, compliant with PAS24, and Secured by Design accredited.

• Identification: The faceplate prominently displays "FUHR," ensuring authenticity.

• Locking Point Distances:

  • A = 367 mm
  • B = 408 mm
  • C = 480 mm
  • D = 540 mm
  • E = 603 mm
  • F = 644 mm

• Croppable Design: The full-length unit can be cropped to fit various door heights, providing flexibility during installation.

• Handing: Easily reversible by adjusting the Allen screw, allowing for versatile installation options.

• Sprung Mechanism: The gearbox features an internal spring to assist with lever return, eliminating the need for additional sprung handles.

Operation:

To operate, simply lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to secure the lock. Unlocking is just as straightforward: turn the key one full turn and push down on the lever.

This latch and deadbolt combination not only enhances security but also offers user-friendly features, making it an excellent choice for any door installation.
