FUHR

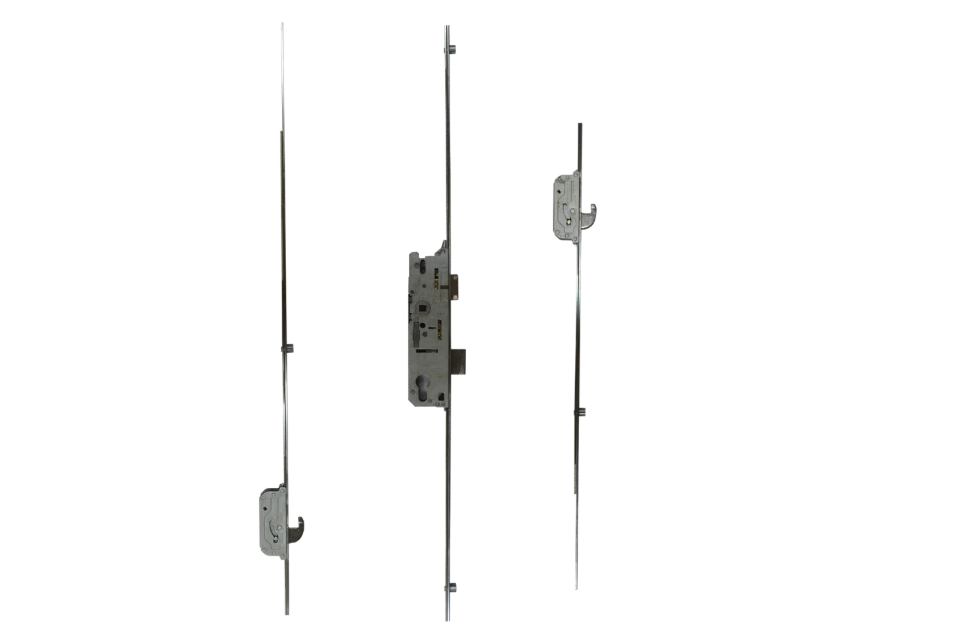

859 Type 17 Lever Operated Latch & Deadbolt - 2 Hook & 4 Roller

859 Type 17 Lever Operated Latch & Deadbolt - 2 Hook & 4 Roller

l31114-AL

£132.02 GBP
£132.02 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

15 in stock

  • Free shipping on all orders over £50
  • Easy Free Return and Refund
  • Trusted by Trade Professional

The FUHR 859 Type 17 Lever Operated Latch & Deadbolt is a robust locking solution designed for enhanced security and ease of use. With its precise specifications, including a 35mm backset and a 92mm centre distance, this unit is engineered to fit seamlessly into your door setup.

Key Features

  • Durable Design: The latch and deadbolt mechanism features a split spindle, ensuring reliable operation and longevity.

  • Enhanced Security: Equipped with 2 hook and 4 roller locking points, this system provides superior locking strength, making it ideal for high-security applications.

  • Accreditation: This product is Secured by Design accredited and complies with PAS 24 standards, offering peace of mind with a 10-year guarantee.

  • User-Friendly Operation: The locking method is straightforward—simply lift the lever to engage the mechanisms and turn the key to lock or unlock.

Technical Specifications

  • Dimensions:

    • Case Height: 200mm
    • Case Width: 50mm
    • Faceplate Width: 16mm
    • Overall Length: 2170mm

  • Locking Point Distances:

    • A: 337mm
    • B: 362mm
    • C: 509mm
    • D: 509mm
    • E: 730mm
    • F: 780mm

  • Croppable Unit: The full-length strip can be cropped to fit various door heights, providing flexibility during installation.

  • Reversible Handing: Easily reverse the latch by adjusting the Allen screw, allowing for versatile installation options.

Additional Information

The internal sliding strip features a notch for the spring-loaded ball bearing, ensuring a positive locking action. If components like the ball bearing, screw, and spring are not retained from the existing unit, they must be purchased separately (see Associated Products).

This gearbox is sprung, eliminating the need for additional sprung handles or a separate spring cassette, making it a practical choice for modern installations.

For those seeking a reliable and secure locking solution, the FUHR 859 Type 17 is an excellent choice, combining functionality with advanced security features.
