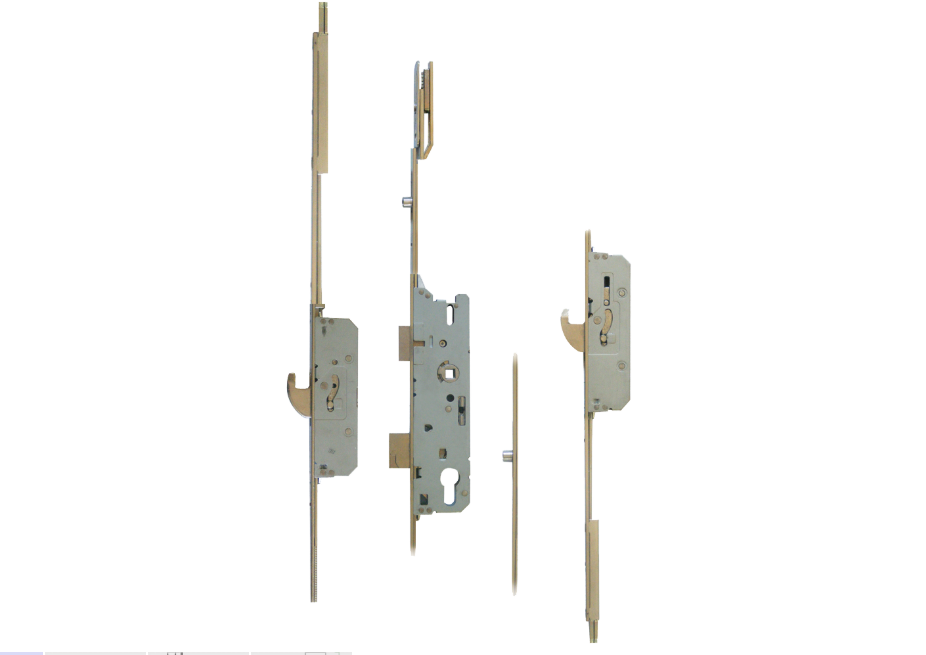

856 Type 6 Lever Operated Latch & Deadbolt With Shootbolts - 2 Hook & 2 Roller

The FUHR 856 Type 6 Lever Operated Latch & Deadbolt with Shootbolts is designed for robust security and ease of use. Here’s a detailed overview of its features and specifications:

Key Specifications

• Backset: 35mm
• Centres: 92mm
• Case Height: 200mm
• Case Width: 50mm
• Faceplate Width: 16mm
• Overall Faceplate Length: 2195mm

Locking Mechanism

This unit features a single spindle latch and deadbolt center case, ensuring a reliable locking action. The internal sliding strip includes a small notch for the spring-loaded ball bearing, enhancing the locking mechanism's effectiveness when the handle is operated.

Additional Locking Points

In addition to the primary locking mechanism, the full-length strip incorporates:

• 2 Hook Locking Points
• 2 Roller Locking Points

These additional points provide enhanced security, making it difficult for unauthorized access.

Shootbolts

The unit comes with pre-fitted shootbolts, which add an extra layer of security and stability to the locking system.

Locking Point Distances

• Locking Point Distance A: 361mm
• Locking Point Distance B: 420mm
• Locking Point Distance D: 848mm

Handing

The latch can be easily reversed by locating the Allen screw on the side of the lockcase. Simply remove the screw, reverse the latch, and refit the screw to adjust the handing as needed.

Operation

To operate the lock:

1. Locking Method: Lift the lever to engage the locking mechanisms.
2. Locking: Turn the key one full turn to secure the lock.
3. Unlocking: Turn the key one full turn and push down on the lever to disengage.

Sprung Mechanism

The gearbox is sprung, featuring an internal spring mechanism that assists with lever return, eliminating the need for separate sprung handles or a spring cassette.

Important Notes

• Component Retention: If the ball bearing, screw, and spring are not retained from the existing unit, these components must be purchased separately (refer to Associated Products).
• Croppable: This unit cannot be cropped on-site; please verify the required unit length before purchasing.

Identification

The faceplate is clearly marked with "FUHR," ensuring easy identification and authenticity.

This comprehensive overview highlights the FUHR 856 Type 6's features, making it an excellent choice for those seeking a reliable and secure locking solution for UPVC applications.
