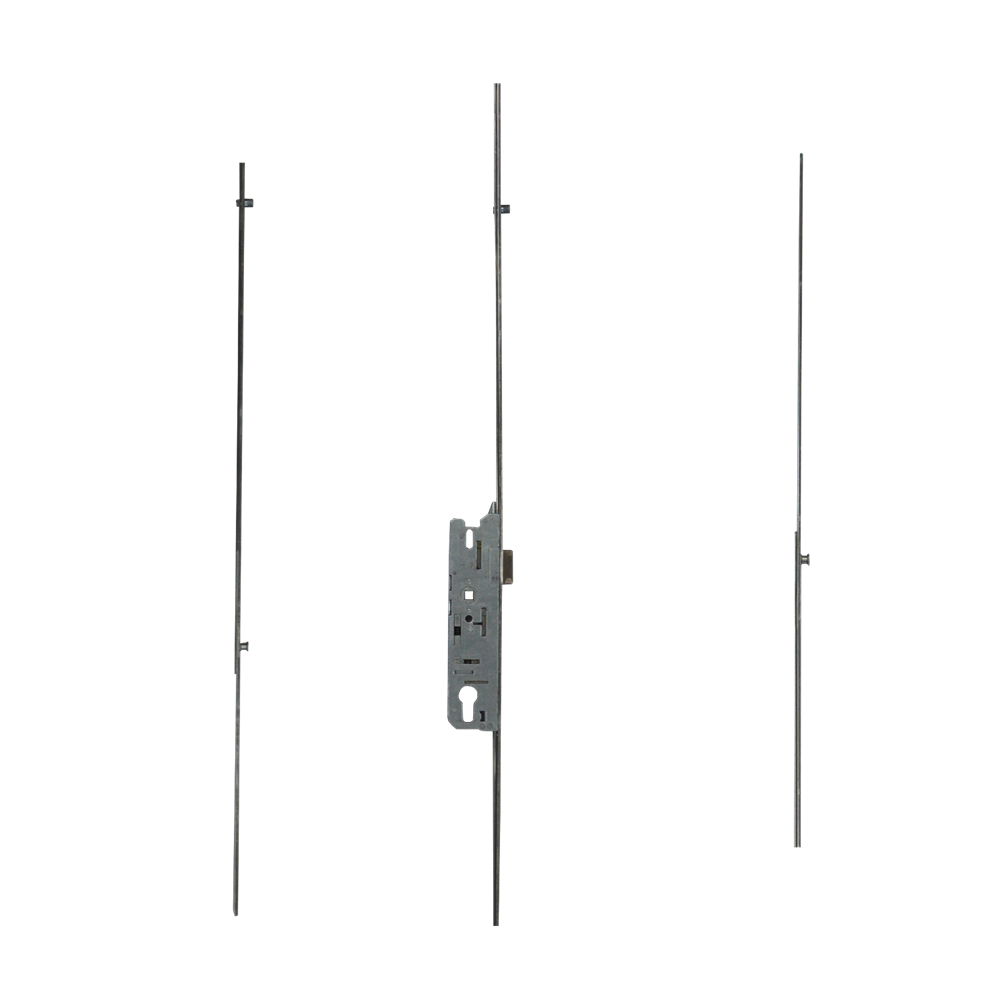

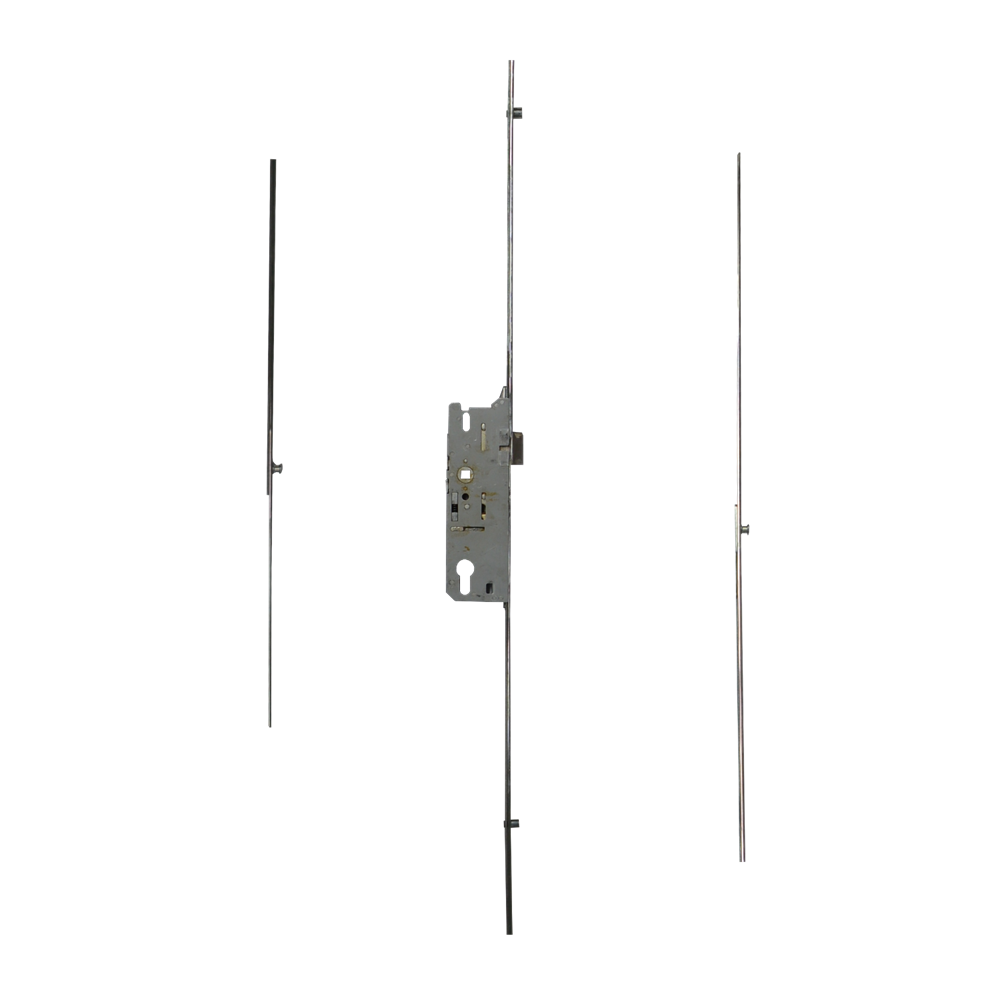

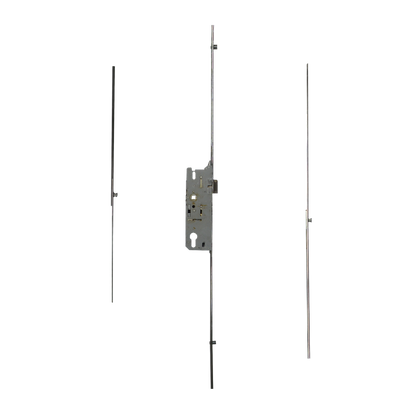

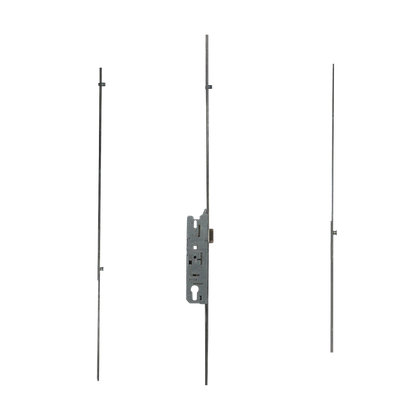

856 Type 2 Lever Operated Latch & Deadbolt - 2 Mushroom & 2 Roller

The FUHR 856 Type 2 Lever Operated Latch & Deadbolt is a robust locking solution designed for versatility and security. With options for a 30mm, 35mm, or 45mm backset, it fits a variety of door configurations. The 92mm centres, 200mm case height, and customizable case width of 45mm, 50mm, or 60mm ensure compatibility with most UPVC applications.

This latch and deadbolt system features a single spindle and a well-engineered centre case that enhances its reliability. The internal sliding strip, equipped with a spring-loaded ball bearing, ensures a secure locking action, providing peace of mind when operating the handle.

Key Features

• Accreditation: Backed by a 10-year guarantee, ensuring long-lasting performance.

• Identification: The faceplate is clearly marked with "FUHR," making it easy to identify.

• Gearbox Specifications: The gearbox is designed with a single spindle, maintaining a case height of 200mm and offering case widths of 45mm, 50mm, or 60mm.

• Additional Locking Points: Beyond the primary locking mechanism, the full-length strip includes 2 mushroom and 2 roller locking points for enhanced security.

• Faceplate Dimensions: The 16mm wide faceplate is specifically designed for UPVC doors, with an overall length of 2170mm.

• Locking Point Distances:

  • Distance A: 337mm
  • Distance B: 362mm
  • Distance C: 730mm
  • Distance D: 780mm

• Croppable Design: The full-length unit can be cropped to fit the specific height of your door, providing flexibility during installation.

• Handing: The latch can be easily reversed by adjusting the Allen screw, allowing for convenient installation on either side of the door.

• Sprung Mechanism: The gearbox features an internal spring mechanism that aids in lever return, eliminating the need for additional sprung handles or spring cassettes.

Operation Instructions

To operate the locking mechanism, lift the lever to engage the locks, then turn the key one full turn to secure the door. To unlock, simply turn the key one full turn and push down on the lever to disengage the locks.

This FUHR 856 Type 2 Lever Operated Latch & Deadbolt is an excellent choice for those seeking a reliable and secure locking solution for their doors.
