833 Latch Deadbolt 2 Latches Auto Locking Multipoint Door Lock

Product Overview: Fuhr 833 - Slam Shut Multipoint Door Lock

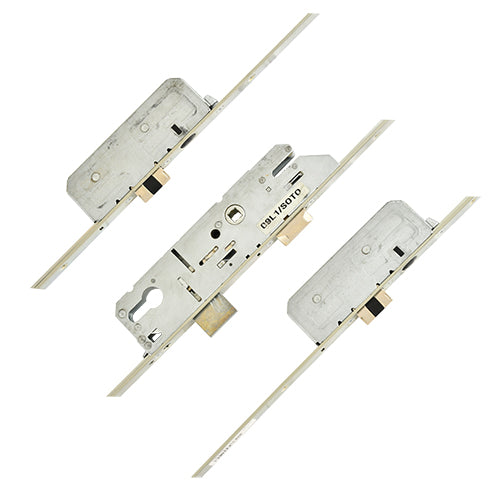

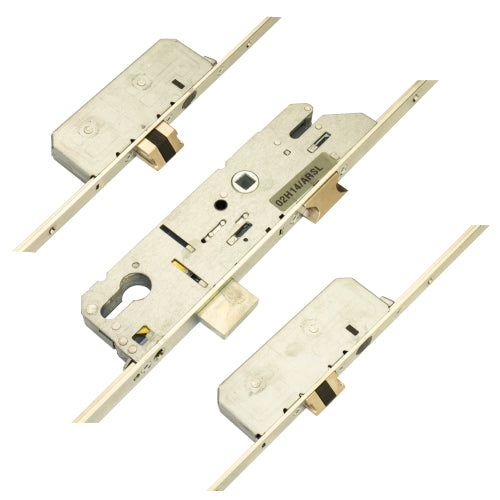

The Fuhr 833 Slam Shut multipoint door lock is designed for optimal security and convenience, featuring a robust configuration of 1 deadbolt, 1 latch, and 2 autolatches. This advanced locking system is compatible with various door materials, including aluminium, UPVc composite, and timber, making it a versatile choice for both residential and public buildings.

Key Features:

• Automatic Locking: The lock engages automatically upon closing the door, ensuring immediate protection against unauthorized access. This feature not only enhances security but also helps prevent door warping by securing the door at multiple points.

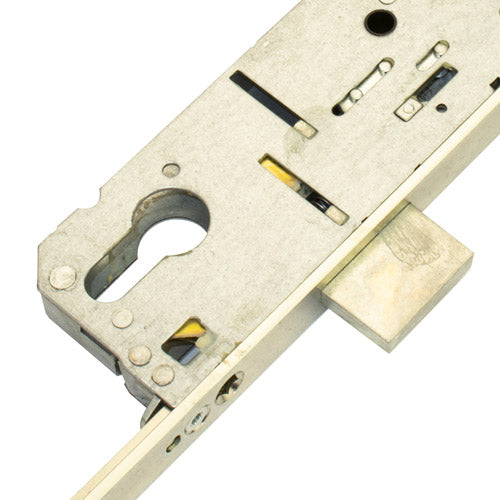

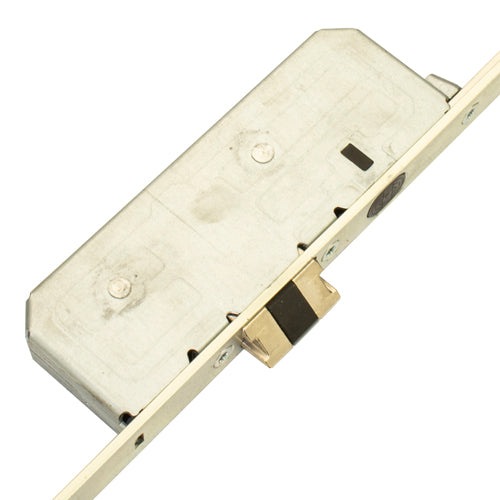

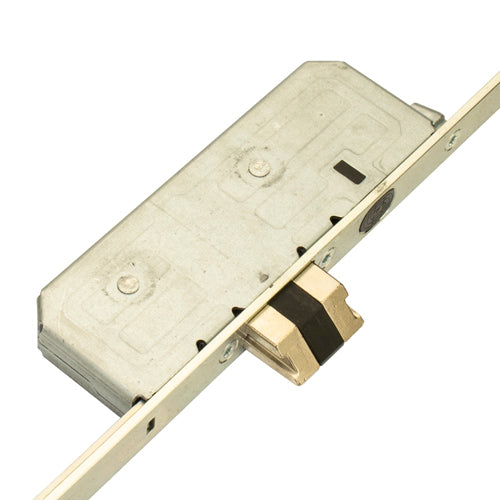

• Enhanced Security: Upon closing, the latches convert into solid latching deadbolts that extend 20mm into the frame, providing robust resistance against forced entry.
• Child and Night Proofing: A simple key turn can block the interior lever, engaging the main bolt for added safety, making it ideal for homes with children.
• Easy Operation: Unlocking from the inside is straightforward with the lever handle, allowing for quick exit in emergencies. The door automatically locks when closed, ensuring peace of mind.
• Panic Function Option: An optional panic function is available, allowing for unimpeded escape from the inside, enhancing safety in critical situations.

Technical Specifications:

• Backsets Available: 35mm, 40mm, 45mm, 55mm, and 65mm (some available by special order).
• Gearbox Dimensions: 220mm x width + 18mm.

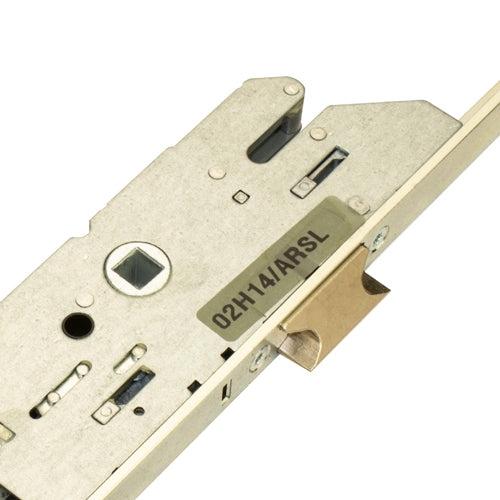

• Latch and Deadbolt Height: 31mm.
• Distance Between Latch and Deadbolt: 61mm.
• Installation: Gearboxes are secured to faceplates with three screws.

Operation Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch and locking points.
2. Turn the key to deadlock the mechanism.

To Unlock the Door:

1. Turn the key to unlock the mechanism.
2. If using a lever, push it down to retract the locking points, or perform a quarter turn of the key to retract the latch for opening.

The Fuhr 833 multipoint door lock combines innovative technology with user-friendly features, making it an excellent choice for enhancing the security of your property.

Product Specification

• Manufacturer: Fuhr
• Spindle Size: 8mm
• Deadbolts: 1
• Latch: 1
• Autolatches: 2
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1490mm
• Height: 2170mm
• Top Autolatch to Spindle: 715mm
• Bottom Autolatch to Spindle: 745mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines:

To ensure accurate measurements for your door lock installation, follow these guidelines:

Backset Measurement:
Measure from the edge of the door to the center of the keyhole. This distance is crucial for selecting the correct backset.

Centres PZ Measurement:
Measure from the center of the keyhole to the center of the handle hole. This measurement is essential for ensuring proper alignment of the lock components.

Faceplate Measurement:
Measure the width and height of the existing faceplate or the area where the faceplate will be installed. This will help in selecting the right faceplate size from the drop-down options.

Operation Type:
Select the operation type based on how you want the lock to function. This could include options like key-operated, lever-operated, or electronic.

By following these measuring guidelines, you can ensure that the Fuhr 833 multipoint door lock fits perfectly and operates smoothly, enhancing the security and functionality of your door.
