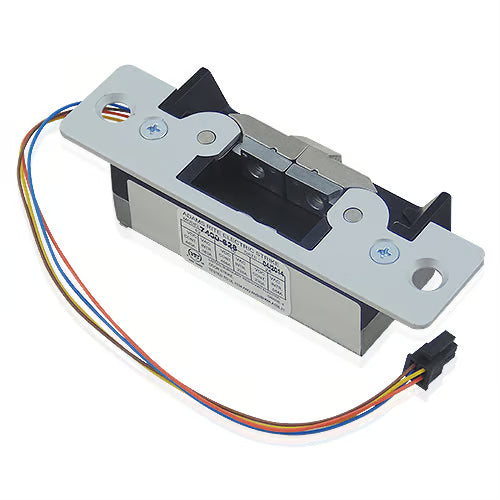

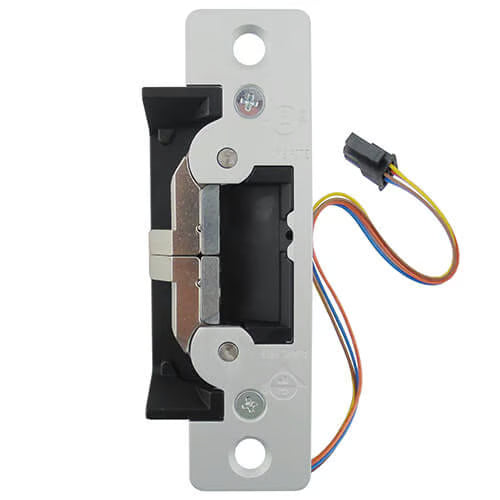

7400 Ultraline Electric Release

The 7400 Ultraline range is expertly designed for single doors, capable of handling up to 15kg of side-load pressure. This model can be retrofitted to previous Adams Rite strikes and operates efficiently at either 12 or 24 volts AC or DC. It is particularly beneficial for meeting the requirements of Document M, as it requires only half the force to open compared to the 7100 series release. The innovative stainless steel split-jaw design ensures a high level of security while allowing for electrical release under significant sideload pressure.

Product Specifications

• Type: Mortice
• Style: ANSI
• Jaw: Scissor action jaw
• Jaw Dimensions: (H) 36.5mm x (W) 15.9mm x (D) 12.7mm
• Overall Dimensions: (H) 124mm x (W) 31.8mm x (D) 27mm
• Field Reversible: Fail safe / fail secure
• Current Consumption:
• 160mA at 12V AC
• 440mA at 12V DC
• 80mA at 24V AC
• 230mA at 24V DC
• Latch Accommodation: 11mm (including 3mm air gap)
• Voltage: 12V or 24V
• Operating Mode: Fail secure or Fail safe (Reversible)
• Max Holding Force: 1080kg
• Handed: No
• Depth: Shallow depth of only 27mm
• Sideload Pressure: Can operate with over 15kg of sideload pressure
• Adjustable Jaw: Jaw packers used to alter depth
• Compliance: Requires half the force to open compared to the 7100 series, aiding compliance with DDA Approved Document M
• Faceplate: Flat faceplate for single doors
