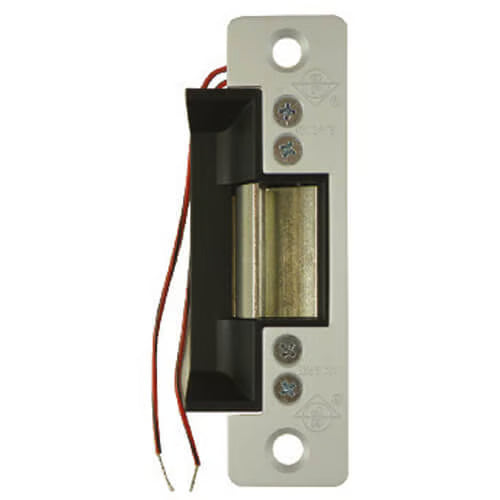

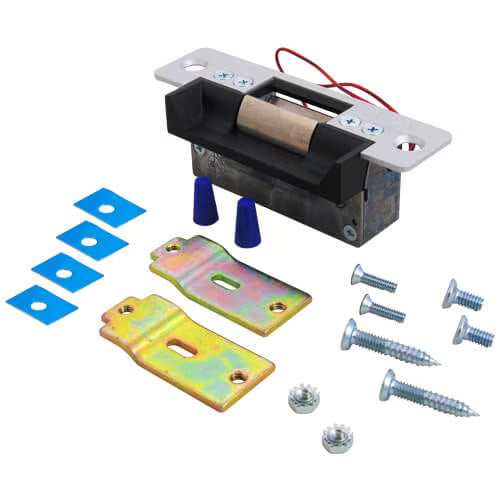

7100 Single Door Electric Release ( 12v ) Unmonitored

The 7100 series electric strike is designed for single door applications, featuring a sleek flat SAA faceplate. It is available in both 12v and 24v options, with monitored or unmonitored configurations, as well as fail safe and fail secure versions. Additionally, it supports AC supply versions, and the fail secure or fail safe operation can be reversed on-site for added flexibility. The included sub cover is compatible with doors that are 44mm thick and close flush with the jamb edge. For thicker doors, extended sub covers are available. This product is suitable for use with aluminium, steel, and timber frames.

Product Specifications

• Max Holding Force: 907kg (2000lbs)
• Handed: No
• Jamb Compatibility: Fits into an aluminium jamb section as shallow as 44.45mm
• Current Consumption:
• 332mA at 12V DC
• 1480mA at 12V AC
• 190mA at 24V DC
• Type: Mortice
• Style: ANSI
• Jaw: Non-adjustable
• Jaw Dimensions: (H) 35mm x (W) 15mm x (D) 12mm
• Release Dimensions: (H) 124mm x (W) 42mm x (D) 37mm
• Field Reversible: Yes (Fail safe/Fail secure)
• Latch Accommodation: 11mm (including 3mm air gap)
