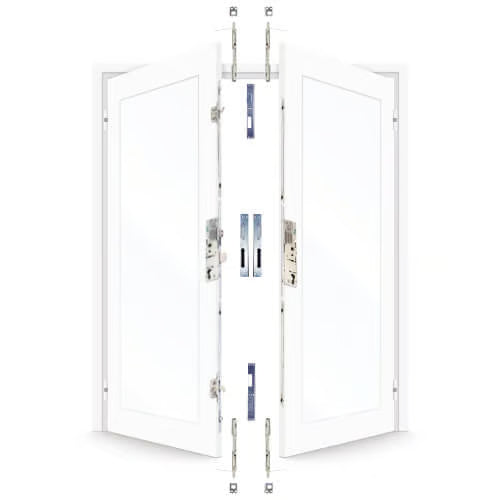

Introducing the ERA French Door Kit, a comprehensive locking solution designed specifically for rebated UPVC doors. This kit includes a master lock with two hooks and two rollers, along with attachments for top and bottom shootbolts, ensuring enhanced security and functionality.
Key Features
Versatile Locking Mechanism: The kit features a 2 hook, 2 roller master and slave lock system, providing robust security.
Adjustable Height: The maximum height, including shootbolts, is 2065mm, while the minimum height is 1875mm, accommodating various door sizes.
Extension Capability: Utilizing part number 566835, the kit can extend from a minimum of 200mm to a maximum of 525mm on each end, offering flexibility in installation.
Product Specifications
Master Lock: 52350019AA
Slave Lock: 65350085AA (x4)
Shootbolts: 565085 (x4)
Shootbolt Keeps: RD55185X (x2)
Hook and Roller Keeps: 600213SET (x2)
Centre Strike: 600313RH85, 600313LH85
Case Height: 220mm
Case Depth: 50mm
Backset: 35mm
Faceplate Width: 16mm
Shootbolt Length: 150mm
Shootbolt Throw: 22mm
This ERA French Door Kit is the perfect choice for those seeking a reliable and secure locking system for their UPVC doors.
