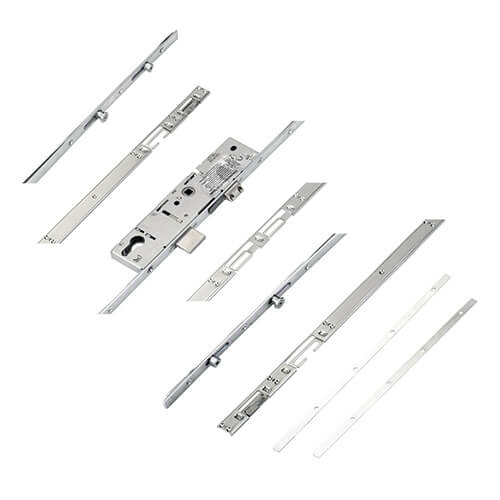

Introducing our Universal 1-piece replacement solution, designed to fit conventional 16mm wide Euro grooves with a 35mm backset. This innovative lock features adjustable rollers for enhanced performance and weather sealing, along with mushrooms for anti-separation, complemented by adjustable keep plates.
Each pack includes:
1 piece lock and keep set
Fixing screws pack
A set of packers
Important Note: This lock is now supplied with individual keeps rather than the previously advertised full-length keep.
Product Specification
Centres: 92mm
Length:
Maximum: 1980mm
Minimum: 1420mm
Case Height: 221mm
Case Depth: Backset + 18mm
Max distance between mushrooms: 1185mm
Min distance between mushrooms: 621mm
Max distance between rollers: 1897mm
Min distance between rollers: 1333mm
This repair lock is designed to replace most existing multi-point locks fitted to UPVC doors, providing a fit-for-purpose solution with a high level of security.
The repair lock is non-handed, making it suitable for both swing-in and swing-out designs. Additionally, mushroom bolts can be shimmed to accommodate different air-gap dimensions.
