5410 Euro Mortice Deadlock

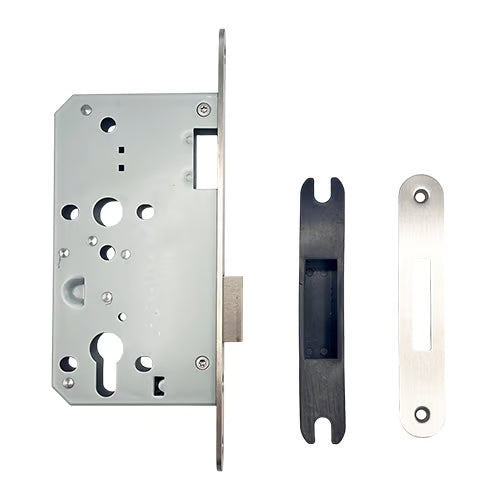

Introducing the Briton 5410 Euro Mortice Deadlock Case, a robust and reliable locking solution designed for both timber and metal doors.

This deadlock features a backset of 60mm and PZ centres of 72mm, with options for both radius and square forends to suit your installation needs.

Key Features:

• Fire Safety: Fire tested to EN 1634, achieving a 90-minute fire rating for timber doors and an impressive 4-hour rating for metal doors. When installed on timber fire doors, it must be used with intumescent protection to maintain door integrity during a fire.
• Durability: Constructed with a double throw deadbolt for enhanced security.

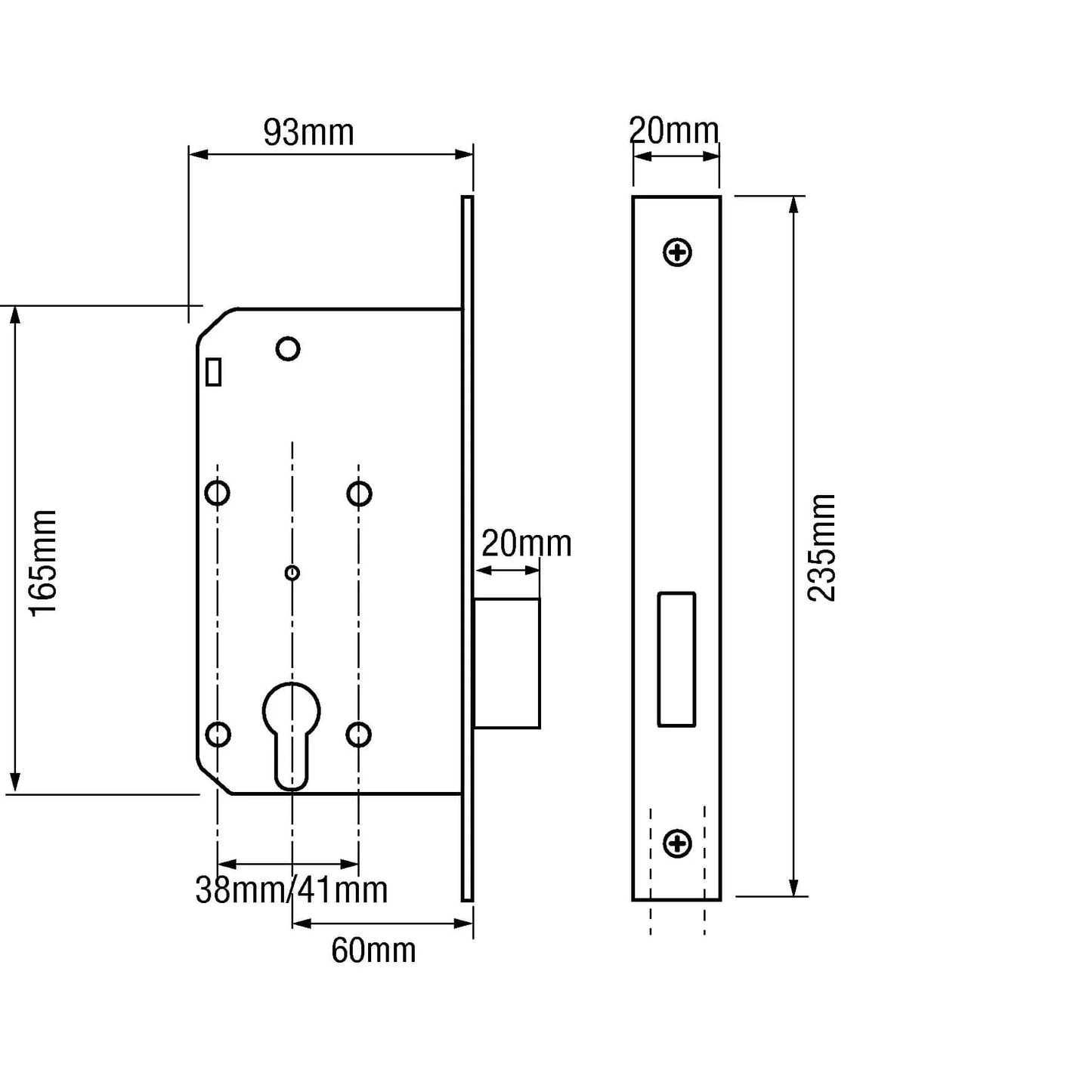

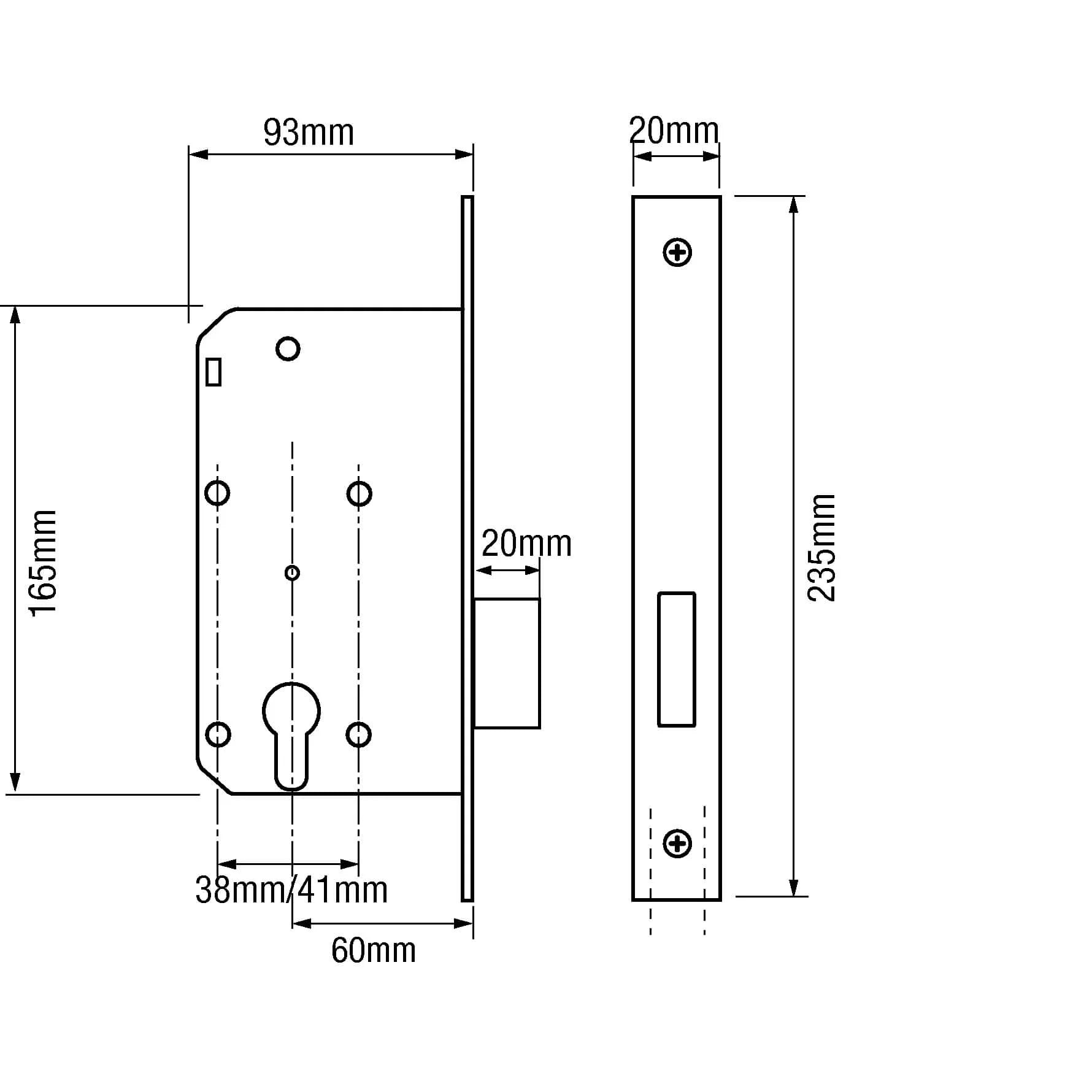

• Dimensions:
• Case Height: 165mm
• Case Width: 93mm
• Faceplate: 235mm x 20mm
• Forend Screw Centres: 210mm
• Bolt Throw: 20mm
• Escutcheon Screw Centres: 38mm - 41mm
• Certifications:
• CE Marked to EN 12209 (2812-CPR-AG0017)
• Certifire Approved (CF741)
• UKCA Marked to EN 12209 (2812-CPR-AG7625)
• Environmental Product Declaration in accordance with ISO 14025 and EN 15804
• Accessibility Compliance: Assists in fulfilling duties under DDA legislation.

Product Specification

• Turn key to throw deadbolt and release
• Double throw deadbolt
• Case height: 165mm
• Case width: 93mm
• Faceplate: 235mm x 20mm
• Forend screw centres: 210mm
• Backset: 60mm
• Centres: 72mm
• 20mm Bolt throw
• Escutcheon screw centres: 38mm - 41mm
