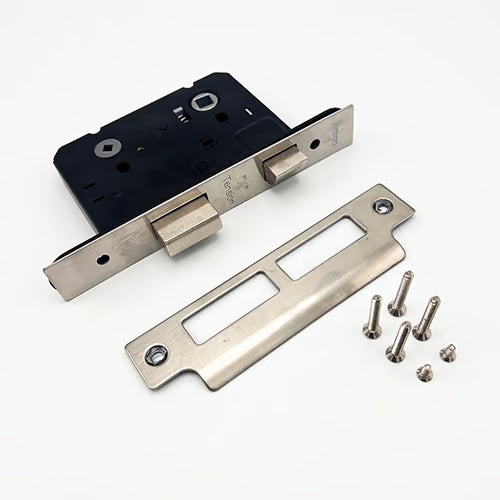

5230 Modular Bathroom Mortice Sashlock

Product Specification

• Latch Operation: Withdrawn by the handle from both sides.
• Deadbolt Mechanism: Operated by a 5mm spindle thumbturn on the inside. The outside can be fitted with an indicator/emergency release.

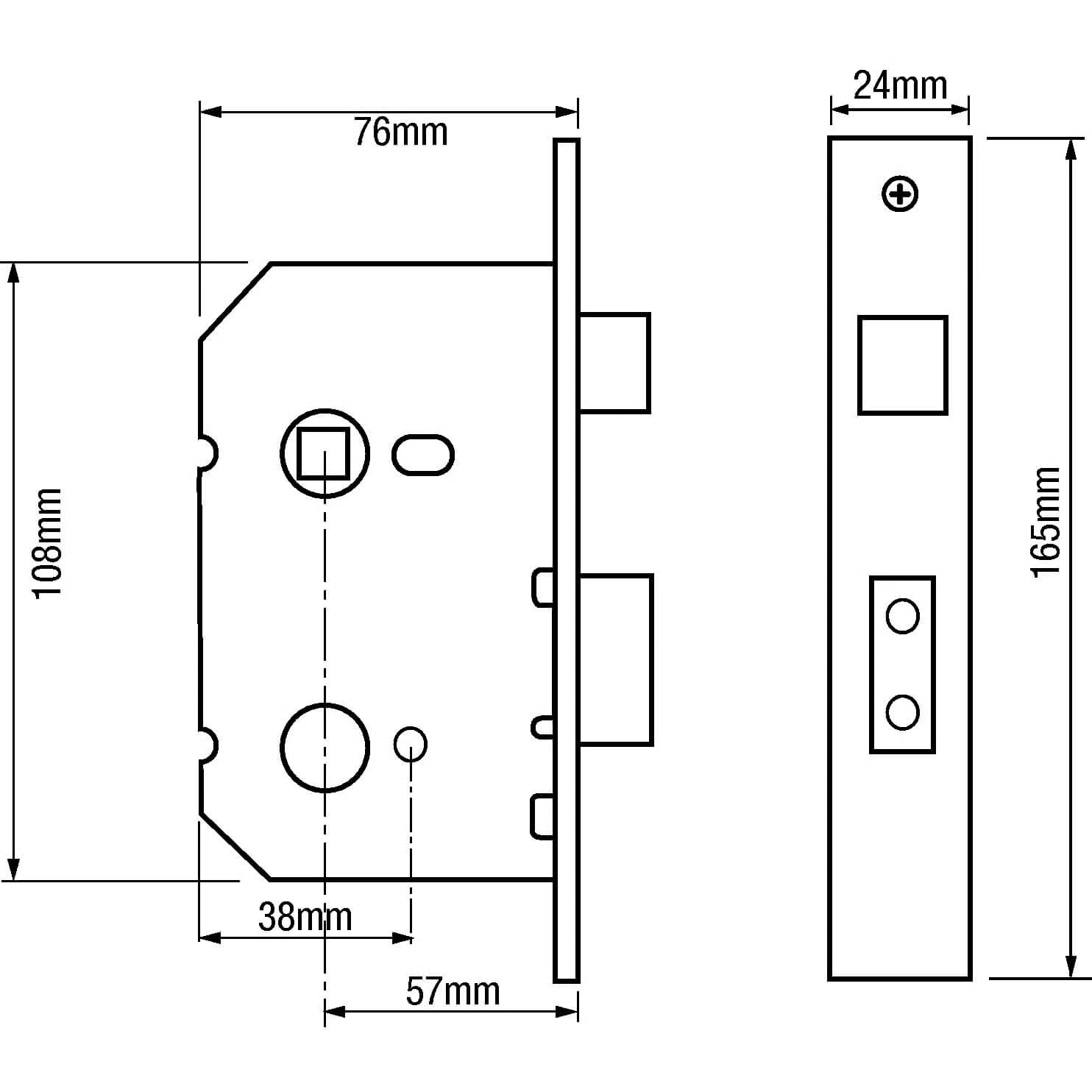

• Faceplate Dimensions: 165mm x 24mm.
• Forend Screw Centres: 140mm.
• Case Dimensions:
• Height: 108mm
• Width: 76mm
• Centres Measurement: 57mm.
• Spindle Sizes:
• Top Spindle: 8mm
• Bottom Spindle: 5mm
• Included Accessories: Supplied with strike plate and fixings.
• Compatibility: Modular bathroom lock suits the rest of the 5200 range.
• Packaging: Supplied in singles, with an outer box quantity of 10.
