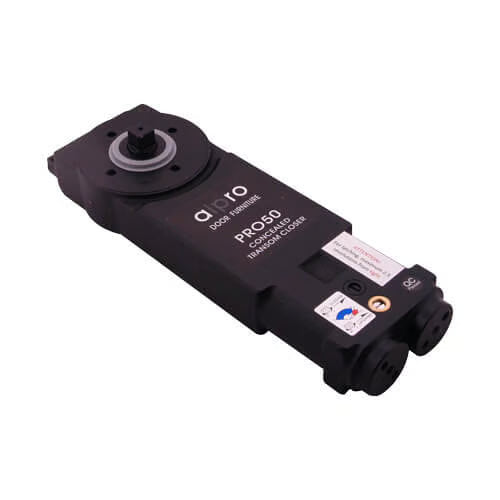

5102 Size 2 Transom Closer with Hold Open

Introducing the Alpro T2 Transom Closers, designed for both single and double action doors, offering a robust solution for your door control needs. With a fixed strength size 2, these closers are perfect for doors weighing up to 100kg and measuring a maximum width of 950mm. They have been rigorously tested to meet BS EN1154 standards, ensuring reliability and safety.

Key Features:

• Hold Open Function: Allows the door to remain open at a 90-degree angle.
• Back Check: Prevents the door from being opened too quickly, protecting both the door and surrounding structures.
• Adjustable Closing Speed: Customize the speed at which the door closes for optimal user experience.
• Adjustable Latch Action: Fine-tune the latch mechanism to suit your specific requirements.

Product Variants:

• 510290T1: Comes with a Side Load Arm, Bottom Pivot, and all necessary fixings.
• 510290T2: Includes an End Load Arm, Bottom Pivot, and complete fixings.

• Product Specifications

• Fitting: Concealed installation above the door in the transom.
• Height: 37mm
• Width: 90mm
• Length: 293mm
• Spindle: Standard spindle length of 12mm, with options for 17mm, 22mm, and 28mm available as special orders.
• Maximum Door Weight: 100kg
• Maximum Door Width: 950mm
• Strength: Fixed Size 2
• Delayed Action: No
• Non-Handed: Suitable for both left and right-handed doors.
