5102 Size 2 Transom Closer

Product Information

Introducing the Alpro 5102 Transom Closers, designed for both single and double action doors with a fixed strength size 2. These closers are perfect for ensuring smooth operation and enhanced safety.

These closers accommodate doors weighing up to 100kg and with a maximum width of 950mm. They have been rigorously tested to meet BS EN1154 standards, ensuring reliability and performance.

Model Variants:

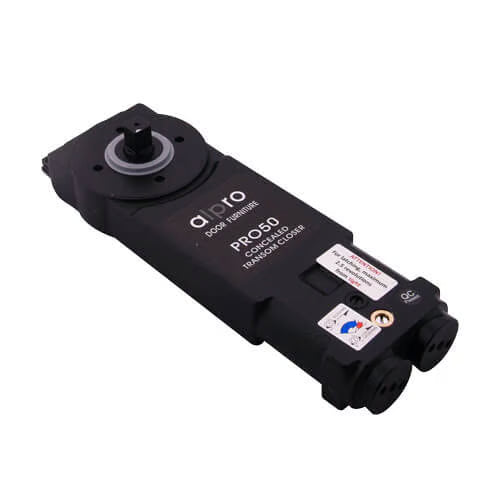

• 510200T1: Supplied with Side Load Arm, Bottom Pivot & Fixings.

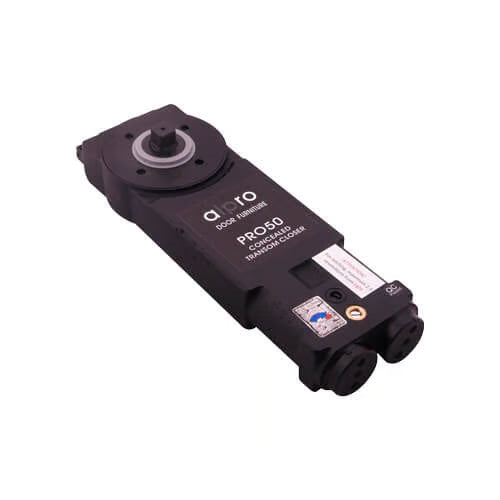

• 510200T2: Supplied with End Load Arm, Bottom Pivot & Fixings.

Product Specification

• Fitting: Concealed - Installed in the transom above the door.
• Tested to: BS EN1154.
• Height: 37mm
• Width: 90mm
• Length: 293mm
• Maximum Door Weight: 100kg
• Maximum Door Width: 950mm
• Strength: Fixed Size 2
• Adjustable Closing Speed: Yes
• Adjustable Latch Action: Yes
• Delayed Action: No
• Backcheck: Yes
• Hold Open: No
• Non Handed: Yes
