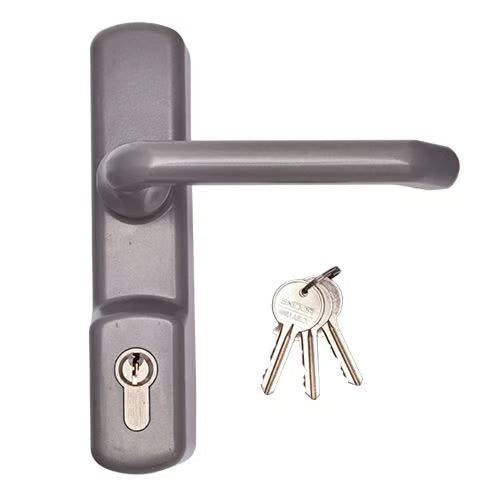

Product Information Exidor 500 Series Outside Access Device for UPVC doors.
This lever version features a euro cylinder and is designed to meet the dimensional requirements of the Equality Act 2010 (formerly known as the DDA) and BS8300 – Approved document “M”.
Operation: When locked, the lever is disengaged from the mechanism but still pulls down, preventing unauthorized entry. When unlocked, the lever, spindle, and mechanism engage, allowing the shoot bolts, latch, or pullman latches to be withdrawn from outside the door. Once the door is opened from either side, the lever remains unlocked until re-locked with a key. Please note that the unit is NOT self-locking.
Product Specification
Height: 161mm
Width: 40mm
Projection: 78.5mm
Lever Length: 133.5mm
Suits doors up to 55mm thick

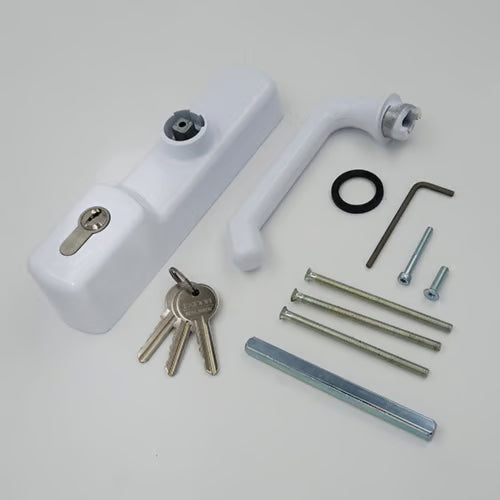

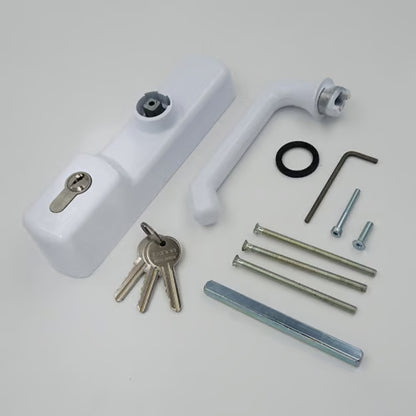

Supplied with a half euro cylinder with 3 keys, adjustable cam, and rear entry retaining screw
Replacement cylinder code: FD302CYL
Can be incorporated into a master key system or keyed alike suite in-house (the euro cylinder will require replacing)
Boxed
Non-handed (lever is reversible)

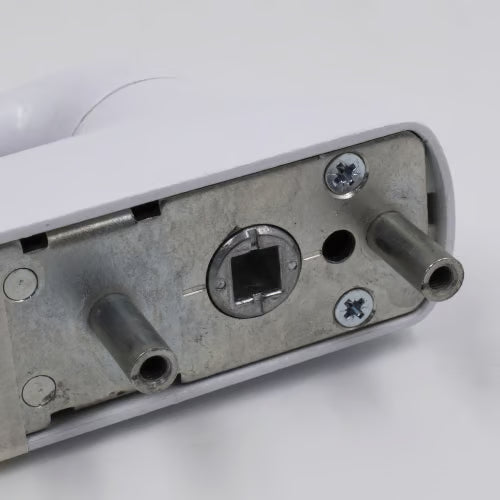

Surface mounted on the outside of the door using machine screws
This device combines security and accessibility, making it an ideal choice for UPVC doors.
