5 Lever Upright Mortice Deadlock Satin

Product Overview

The Zoo ZCRD mortice dead lock is a reliable choice for those seeking a replacement mortice lock. With its distinctive upright design, it provides a good level of security, although it does not comply with British Standard BS3621:2007.

Key Features

• Design & Security: The lock features a black case and unique measurements that set it apart from other mortice locks. The deadbolt throws 15.3mm and includes hardened rollers to resist saw attacks.

• Functionality: It can be locked and unlocked from either side using a key, making it versatile for various door configurations.

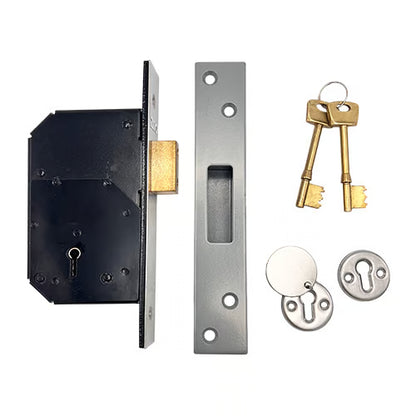

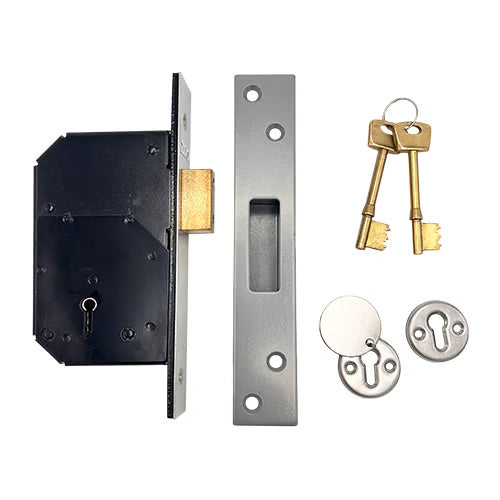

• Accessories: Supplied with two keyhole escutcheons in a matching finish for both sides of the door, along with a grey security striking box. For a brass finish, the brass accessory pack (part ZLAP24PVD) is available.

• Compatibility: Suitable for doors up to 50mm thick. If you need it for thicker doors, extra-long keys can be provided upon request.

• Versatile Use: The lock is non-handed, making it suitable for left or right-hinged doors that open inwards or outwards.

• Keying Options: Comes with two keys as standard, with the option to cut additional keys. Locks can also be keyed alike for convenience.

Additional Information

• Associated Parts: A range of associated parts, including key blanks and rebate sets for double doors, are available for selection.

• Limitations: Not suitable for fire doors.

• Market Position: Zoo locks are gaining popularity in the UK market, favored by architectural ironmongers and locksmiths for their retro fit capabilities.

Installation Tips

When replacing an existing lever mortice lock, be aware that the new lock may be larger. Adjustments can be made to the door with a hammer and chisel if necessary. For new timber doors, using Souber’s DBB morticer can ensure a quick and efficient installation.

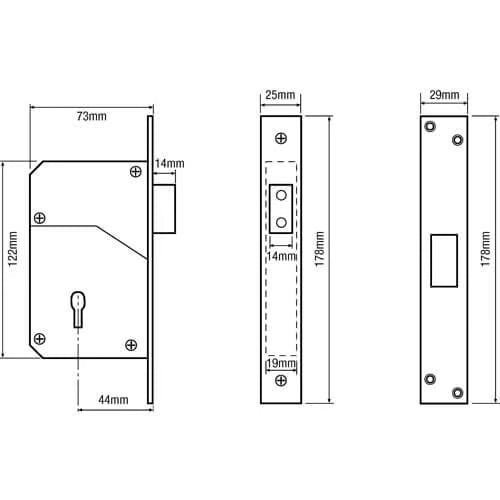

Specifications

• Product Category: Detainer Mortice Lock
• Case Colour: Black
• Case Height: 122mm
• Faceplate Height: 178mm
• Faceplate Width: 25mm
• Deadbolt Throw: 14mm
• Keys: 2
• Keying Options: Can be keyed alike
• Handed: Non-handed
• Escutcheon Plates Supplied: Yes

For further details or to place an order, please visit our product page.
