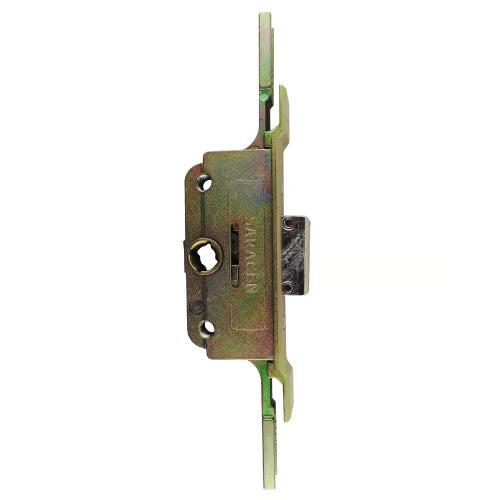

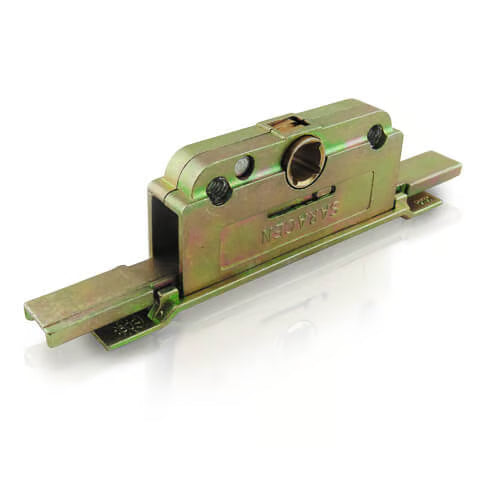

5 FM Window Deadbolt Gearbox - Cranked Faceplate

Product Overview

Introducing the Saracen 5 gearbox, a robust and reliable locking solution designed for seamless integration with extension pieces through its innovative serrated connections, commonly referred to as crocodile teeth fixings.

Key Features

• Unique Design: This variant features a distinctive cranked forend design, marked with the code 05058 on the shoot bolt extension sockets, setting it apart from the flat version.

• Deadbolt Options: Available with a 9.5mm deadbolt, ensuring security and durability. Please note that the 11.5mm and 13.5mm deadbolt variations have been discontinued.

• Branding: Occasionally, these gearboxes may be stamped with "AUBI," indicating their quality and reliability.

Product Specifications

• Faceplate Dimensions: 96mm x 15mm
• Body Dimensions: 61mm x 28mm
• Backset Measurement: 22mm
• Packaging: Supplied loose for easy handling
• Operation: Engage locking points by lifting the handle
• Note: Extension pieces are not included with the product

This gearbox is an excellent choice for those seeking a dependable locking mechanism that combines functionality with a sleek design.
