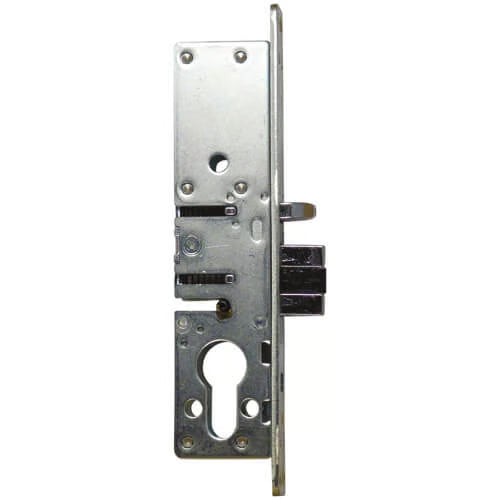

4750 Euro Deadlatch Case for Metal Doors

Product Specification

• Operation:
• Exterior: Key-operated in screw-in cylinder
• Interior: Operated by cylinder key, thumbturn, lever handle, or paddle handle
• Security Features:
• Auxiliary bolt deadlocks the latch when the door is closed against the strike

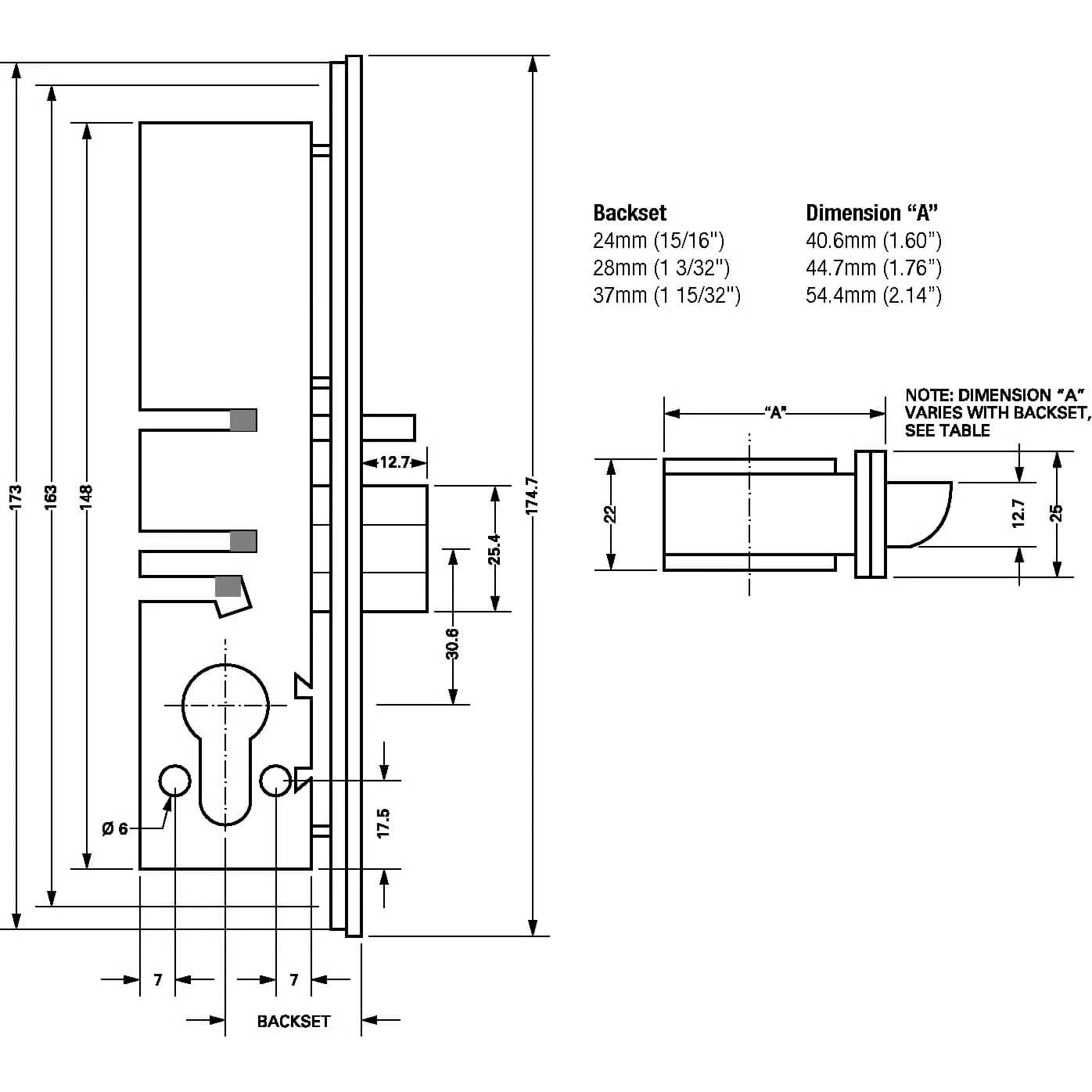

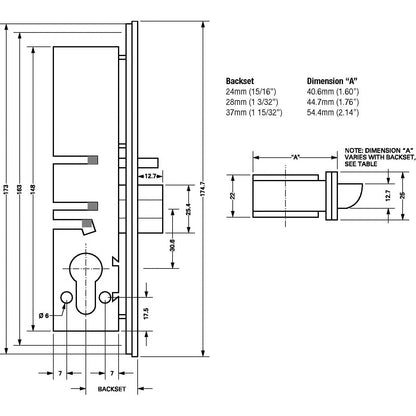

• Dimensions:
• Forend: 174mm x 25mm
• Forend screw centres: 168mm
• Case height: 148mm
• Holdback Facility:
• Available by retracting latchbolt and turning the key anti-clockwise
• Accessories:
• Strikes and faceplates are supplied separately
• Measurement Note:
• When measuring the backset, include the faceplate
• Compatibility:
• Compatible with Adams Rite 7100/7101 series electric strikes
• Emergency Exit Compliance:
• For emergency exit applications with a 4591 paddle handle, specify the 8461 ramped jaw strike to comply with BS EN179+A1: 1998
• Packaging:
• Supplied in singles
• Outer box quantity of 20
