472 3 Lever Mortice Deadlock

The Union StrongBOLT 3 lever mortice deadlock is an ideal choice for securing internal wooden doors. This lock combines standard security features with the reliability expected from the StrongBOLT range.

Key Features:

• Chamfered Bolt Design: Enhances performance under side load and resists drilling attacks.
• Security Features: Anti-pick, anti-saw, and anti-drill capabilities ensure robust protection.

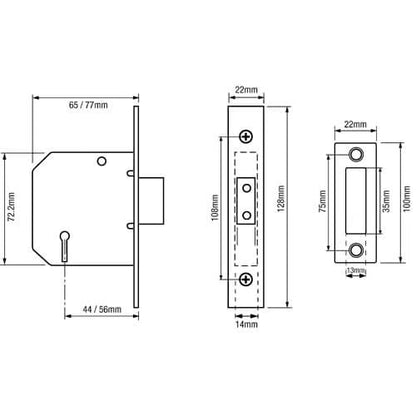

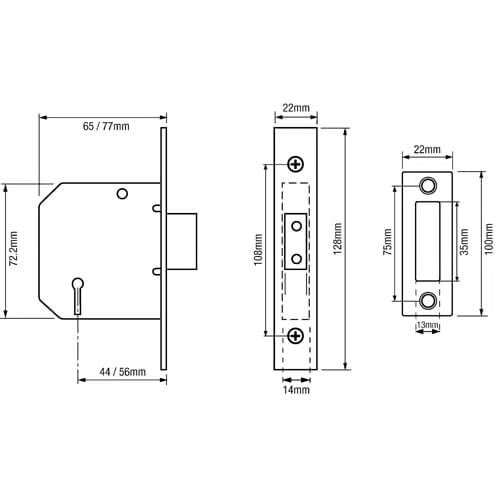

• Unique Measurements: Distinctive red lock case with specific dimensions; refer to the line drawing for details.
• Finish Options: Available in polished brass or satin chrome.
• Complete Interior Solution: The 3 lever range includes a deadlock, sash lock, and bathroom lock.
• Deadbolt Specifications: Throws 14mm; can be locked/unlocked from either side with a key.

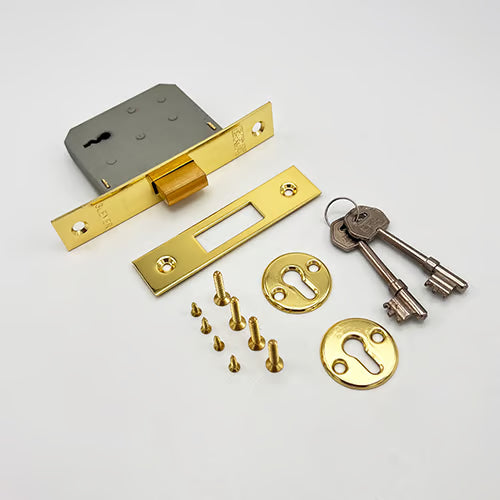

• Included Accessories: Comes with 2 keyhole escutcheons and a striking box in a matching finish.
• Versatile Use: Suitable for most internal wooden doors, non-handed for left or right hinges.
• Key Options: Supplied with 2 steel keys; additional keys can be cut upon request.
• Compliance: CE and UKCA marked, tested to EN 1634-1 for 60-minute fire doors.
  Product Specification
  • Product category: Mortice Deadlock
  • Product type: 3 Lever
  • Case colour: Silver
  • Handle piercing size: N/A
  • Case height: 72.2mm
  • Centres: N/A
  • Faceplate height: 128mm
  • Faceplate width: 22mm
  • Deadbolt throw: 10.5mm
  • Follower size: Non handed

  • British Standard?: No
  • UKCA marked?: No
  • CE marked?: No

  • Fire rated?: No
  • Can be keyed Alike?: No
  • Handed?: Non handed
