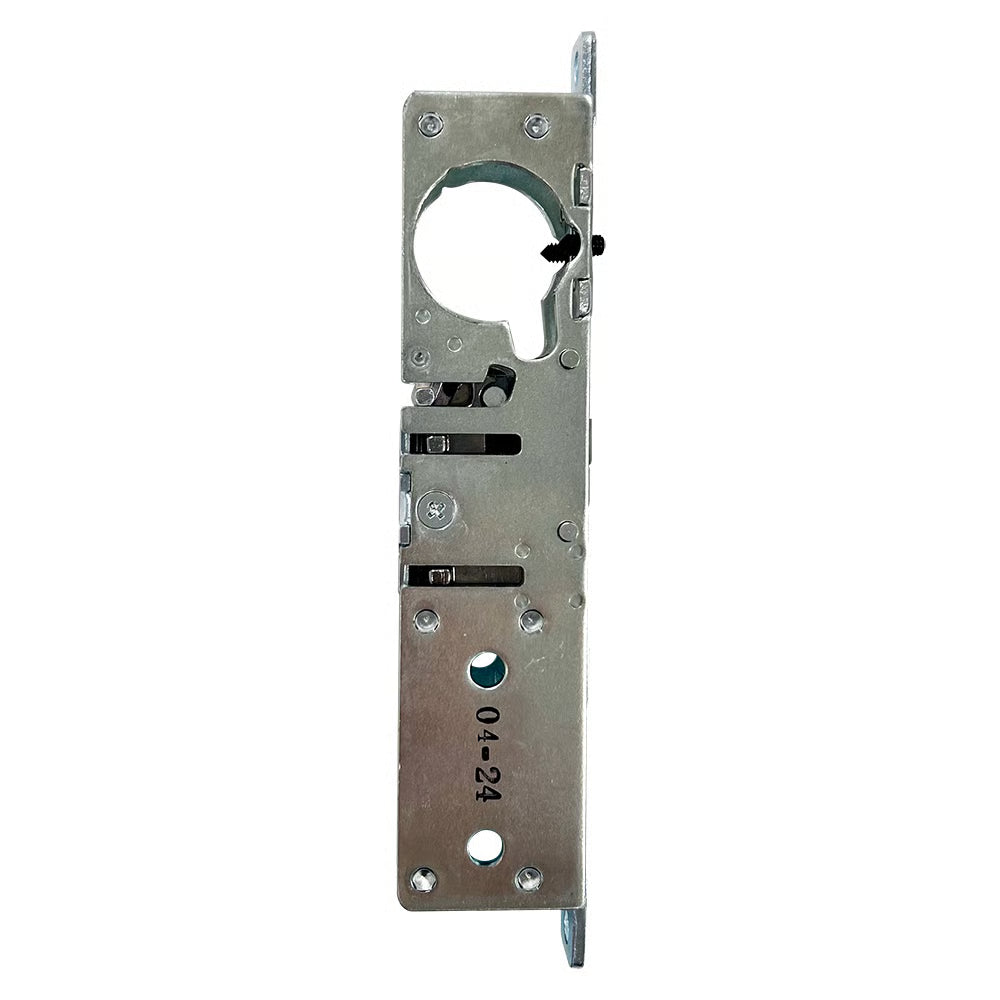

4710 ScrewIn Deadlatch Case for Metal Doors

Product Specification

• Operated from the outside by key in screw-in cylinder
• Operated from the inside by cylinder key, thumbturn, lever handle, or paddle handle
• Auxiliary bolt deadlocks the latch when the door is closed against the strike

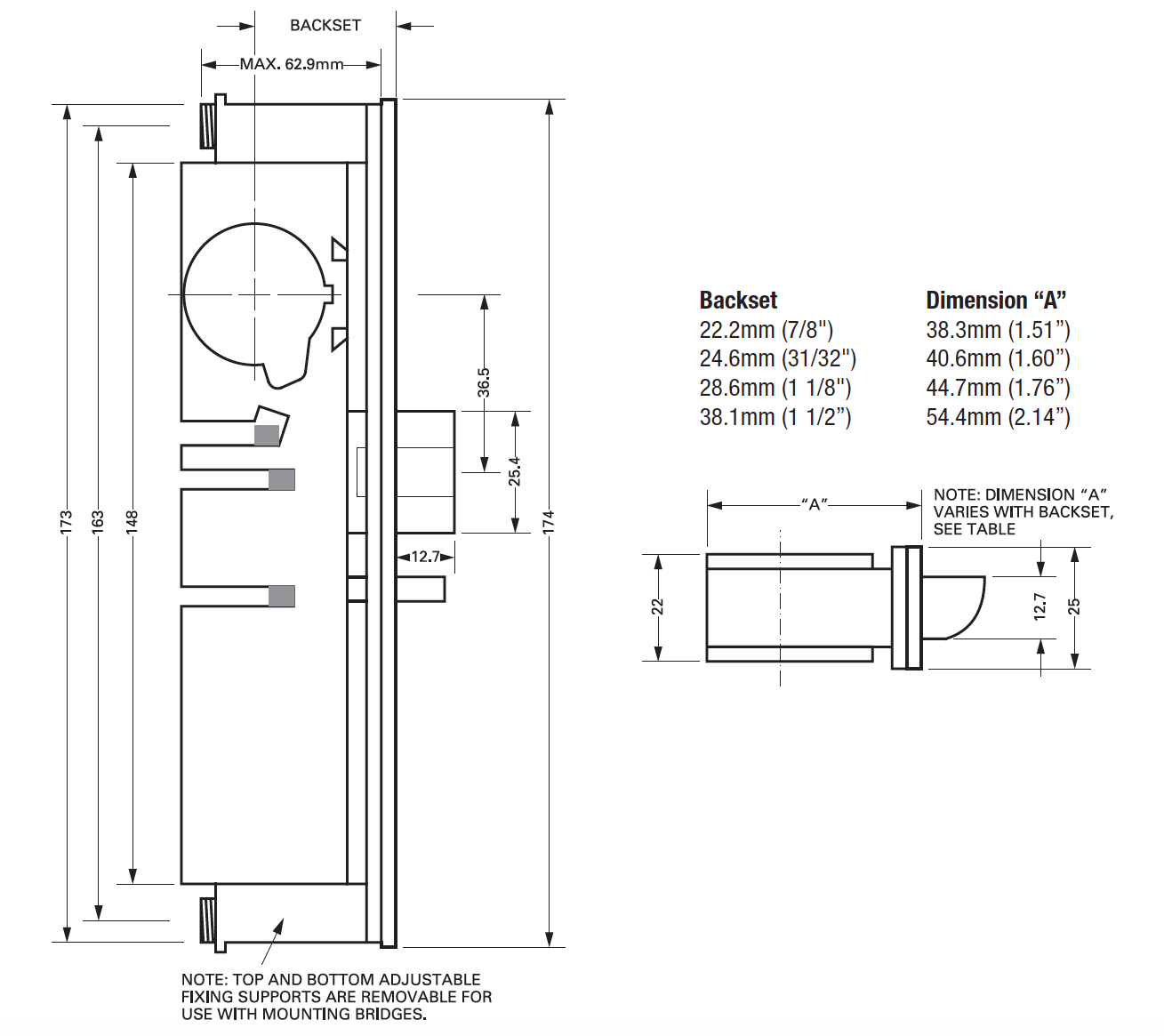

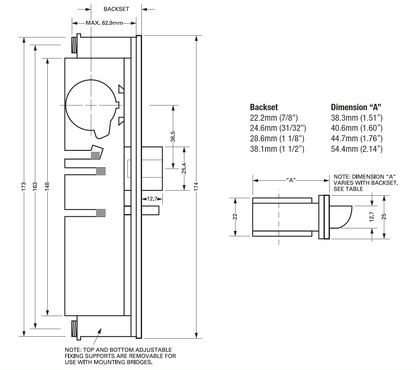

• Forend Dimensions: 174mm x 25mm
• Forend Screw Centres: 160mm
• Case Height: 148mm
• Holdback facility available by retracting latchbolt and turning the key anti-clockwise
• Accessories, including strikes and faceplates, are supplied separately
• When measuring the backset, include faceplate
• Interchangeable with MS1850 deadlock without modification
• Compatible with Adams Rite 7100/7101 series electric strikes
• If used in emergency exit applications with a 4591 paddle handle, be sure to specify the 8461 ramped jaw strike to comply with BS EN179+A1: 2001
• Supplied in singles
• Outer box quantity of 20
