4500 Copy Multipoint Gearbox - Latch Only Version - Lift Lever

Product Overview: Mila Copy Gearbox

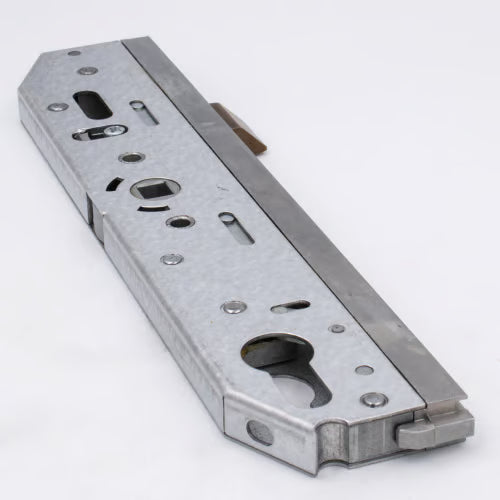

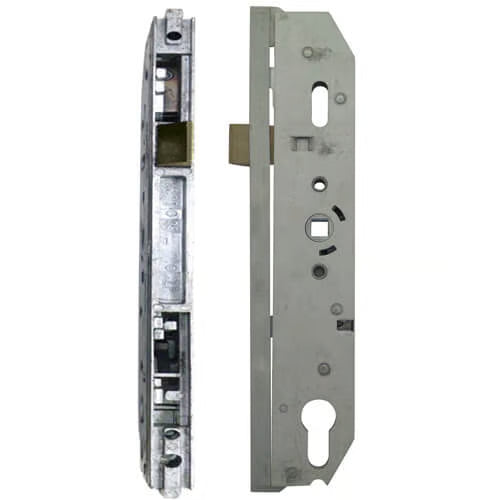

The Mila copy gearbox is designed for optimal functionality and compatibility. This specific model features a latch-only configuration with a single 8mm spindle. It's crucial to verify the location of your connectors, as an alternative version is available under part number MILALATCH4500. For installation, self-tapping screws (Part Number: M430CSK) are required.

Key Features:

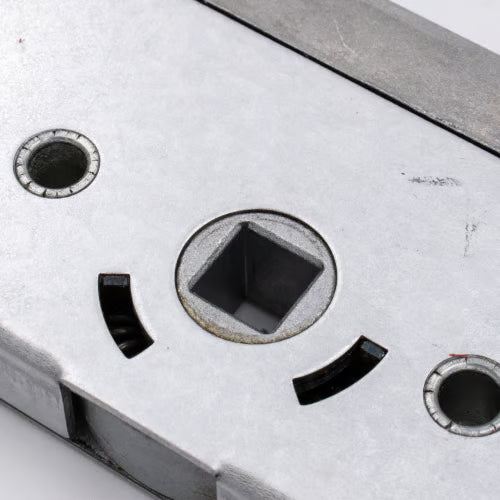

• Compatibility: The Mila 4500 copy gearbox has distinct fixings compared to the standard MILACASE35LATCH. It includes a bracket with "4500" cast into the face, and the connectors are positioned differently than the standard lock version.

• Screw Specifications: Use M4 x 10mm self-tapping machine screws for this lock, as the screw holes are unthreaded.

• Configurations Available: Mila gearboxes come in both latch-only and latch and deadbolt configurations. The latch-only versions are single spindle and available in backsets of 25mm, 28mm, 35mm, and 45mm. The latch and deadbolt versions with a single spindle (92mm PZ) are available in 35mm and 45mm backsets, while double spindles are offered with a 35mm backset only. The double spindle lock features a 70mm/92mm PZ measurement.

Dimensions:

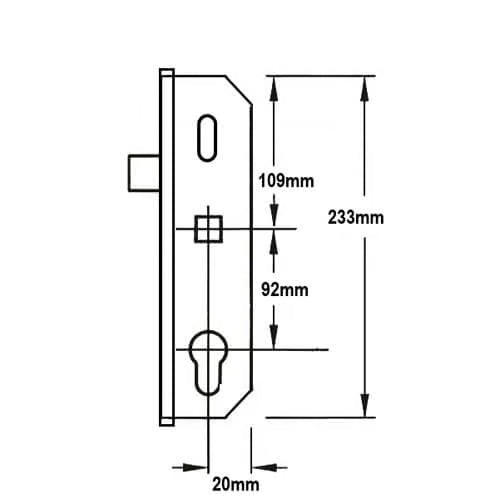

Despite the variety of backsets and operational options, the dimensions of Mila gearboxes remain consistent. They measure:

• Height: 233mm
• Width: Backset + 20mm
• Latch Height: 20mm
• Deadbolt Height: 30mm
• Distance Between Latch and Deadbolt: 80mm

Important Considerations:

Be aware that some older locks may have an offset or cranked connector. This is particularly relevant when replacing a gearbox rather than a full-length lock. Replacement gearboxes are now only available with inline connectors, which are compatible with older locks. However, you will need to adapt the drive gear behind the faceplate. Refer to our technical guide for detailed instructions, including cutting a square hole in the drive gear to create a slot for proper lock operation.

Additional Products:

We also stock a variety of associated products for Mila Coldseal gearboxes, including multipoint door locks, keeps, spindles, handles, and accessories.

Operation: Single spindle
