45/92 Latch Deadbolt 2 Hooks 20mm Faceplate Lift Lever Multipoint Door Lock

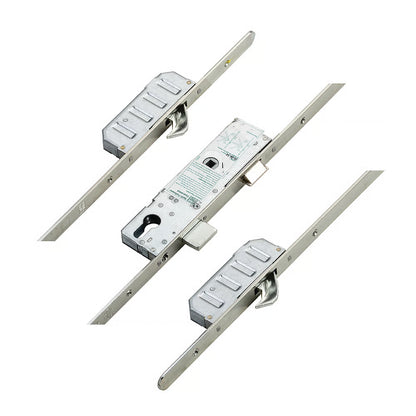

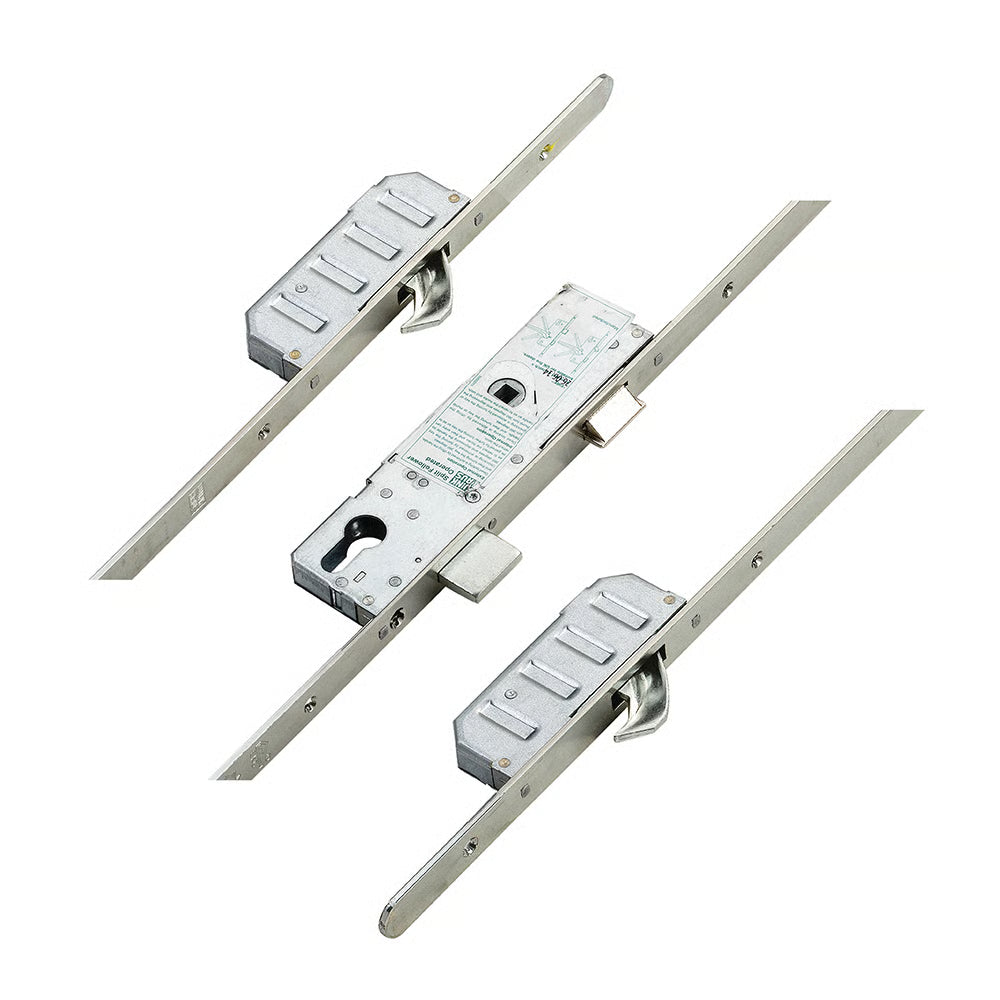

Product Overview: Winkhaus Trulock Multipoint Door Lock

The Winkhaus Trulock multipoint door lock is designed for enhanced security and durability, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch. This locking system is ideal for timber and composite doors, particularly in social housing and new build projects.

Key Features:

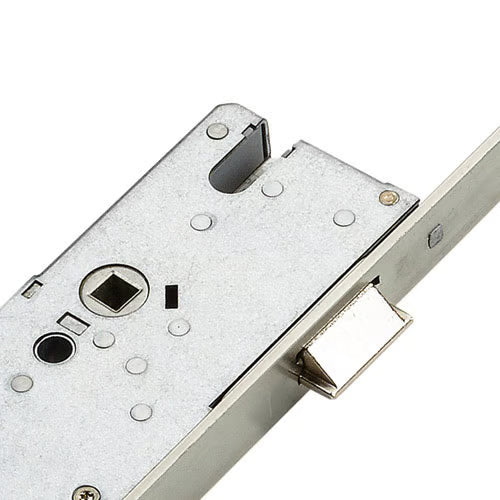

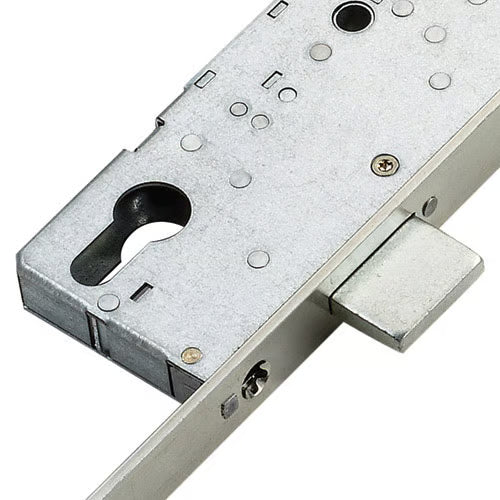

• Multipoint Locking System: The Trulock offers a central latch and deadbolt, complemented by either 2 or 4 hooks as additional locking points. This ensures maximum security and stability for your doors.

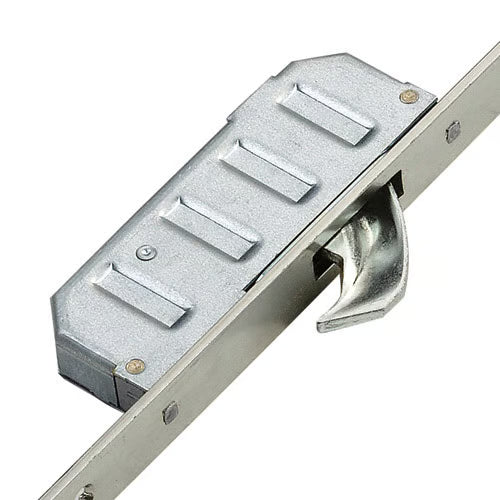

• Handed Hook Locking Points: Unlike non-handed locks, Trulocks feature handed hooks that cannot be reversed on-site, providing a tailored fit for your door.
• Identifiable Design: Easily recognize the Trulock by checking the faceplate for the Winkhaus logo and the Secured by Design logo. The central deadbolt and handed hooks are distinctive features of this model.
• Interchangeable Gearboxes: The Trulock gearboxes share routing details with Cobra locks, allowing for straightforward upgrades or changes in locking operation. New keeps and handles may be necessary for modifications.
• Compact Gearbox Dimensions: All Winkhaus gearboxes, except for the AV4, measure 185mm high with a backset of +15mm, making them some of the smallest on the market. This compact design aids in installation and compatibility.
• Easy Maintenance: Gearboxes are attached to the faceplate with rivets, making them easy to replace. For detailed instructions, refer to our guide and video on replacing a Winkhaus gearbox.
• Operation Types: Available in lift lever, split spindle, and key wind operations, Trulock gearboxes are versatile and can be easily identified by the color-coded stickers on the side.

Operation Instructions:

• To Lock the Door:
  • Lift the handle upwards to engage the locking points.
  • Turn the key to lock the locking points and the main deadbolt (if present).
• To Unlock the Door:
  • Turn the key to unlock the system.
  • Push the handle downwards to disengage the locking points and retract the latch.

Security Assurance: The Winkhaus Trulock has been rigorously tested to withstand 100,000 cycles, ensuring reliability and peace of mind for users.

Conclusion: With its innovative design and robust features, the Winkhaus Trulock multipoint door lock is an excellent choice for those seeking enhanced security and ease of use in their door locking systems.

Product Specification

• Manufacturer: Winkhaus
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Right Hand

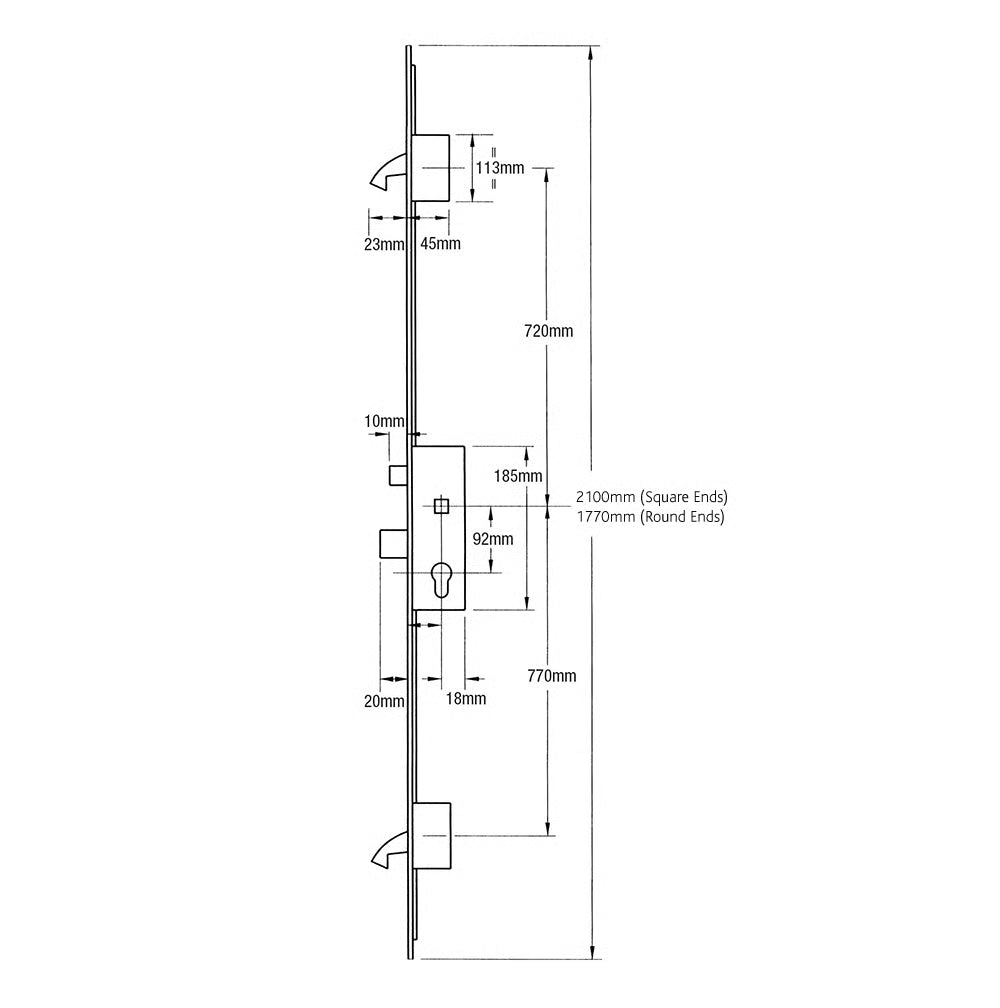

• Distance Between Inner Locking: 1490mm
• Height: 2100mm (1770mm for Round Ends)
• Top Hook to Spindle: 720mm
• Bottom Hook to Spindle: 770mm

Measuring Guidelines: To ensure accurate measurements for your Winkhaus Trulock multipoint door lock, follow these guidelines:

Backset Measurement: To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This is crucial for ensuring a proper fit.

Centres PZ Measurement: For the PZ measurement, measure the distance from the center of the keyhole to the center of the handle hole. This ensures that both components align correctly for smooth operation.

Faceplate Measurement: To measure the faceplate, determine the width and length of the existing faceplate on your door. This will help you select the correct size from the drop-down options.

By following these measurement guidelines, you can ensure that your Winkhaus Trulock lock is installed correctly and functions optimally.
