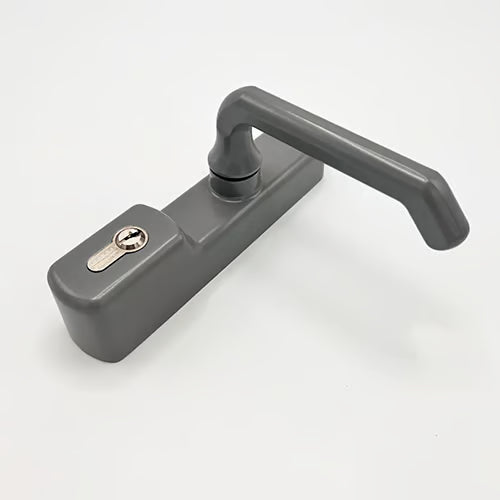

425 Lever Outside Access Device

Product Overview

The Exidor lever outside access device is engineered for effortless operation, specifically designed for compatibility with 400 series hardware. It is available in configurations with or without a Euro cylinder and can be customized as a key retention model by adding the suffix “RK” to your order.

Key Features

• Barrier-Free Compliance: Meets BS 8300 standards, making it perfect for high-traffic areas like staff entrances and goods-in doors in industrial environments.

• User-Friendly Operation: Simply push the lever down to retract internal bolts or latches; releasing the lever resets them to their original position.

• Safety and Reliability: Certified as an approved accessory for the 400 series under EN 1125 and EN 179 standards, ensuring dependable performance.

• Customizable Finishes: Specify your desired finish when ordering. Note that plated finishes are not recommended for outdoor applications.

• Versatile Fixings: Additional fixings for thicker doors are available upon request.

Design and Functionality

• Ergonomic Lever: Designed for easy operation with hand, fist, or elbow.

• Bolt Through Fixings: Suitable for all door types up to 58mm thick.

• Locking Mechanism: The cylinder locks prevent unauthorized access into the building but allow for safe escape.

• Compatibility: Works seamlessly with models 400, 401, 402, 403, 416, 417, 404, 405, 418, and 419.

• Master Keying: For master keying needs, a 45mm Euro profile cylinder with side face drill and tap fixing is required. Use the suffix “KA” for keyed alike configurations.

Product Specifications

• Cylinder Detail: Euro
• Door Opening: Outward
• Door Types: Compatible with Plain Meeting Stile Double Either Leaf, Rebated Double Active Leaf, Single, Steel, and Timber doors.
• Fire Door Approval: No
• Handing: Universal
• Max Door Height: 2440 mm
• Max Door Width: 1220 mm
• Mounting Method: Surface Mounted
• Operator Detail: Lever
• Projection: 95 mm
• Standards: CE, EN 1125, EN 179, UKCA

This Exidor lever access device combines functionality with compliance, making it an ideal choice for various applications.
