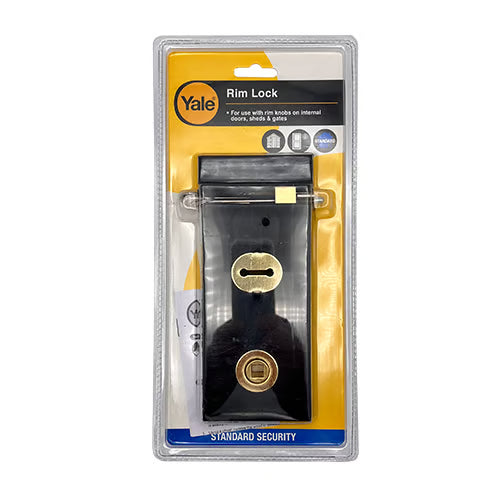

401 Rim Sashlock

Product Overview

Rim mounted sash and dead locks are an excellent choice for solid doors and gates, offering a convenient security solution without the need for morticing. These locks are affixed directly to the door's surface, making them particularly popular in Victorian-style homes.

Yale 401 Rim Sashlock Features

The Yale 401 Rim Sashlock is a versatile, non-handed lock designed for basic security in residential and light commercial settings. Its unique two-way keyhole allows for easy installation, eliminating the need for re-handing. The lock comes with two extended length keys that can easily reach through the door's thickness from the outside.

This lock is compatible with rim knob furniture, where the knob controls the latch while the key operates the deadbolt from both sides of the door.

Finish Options

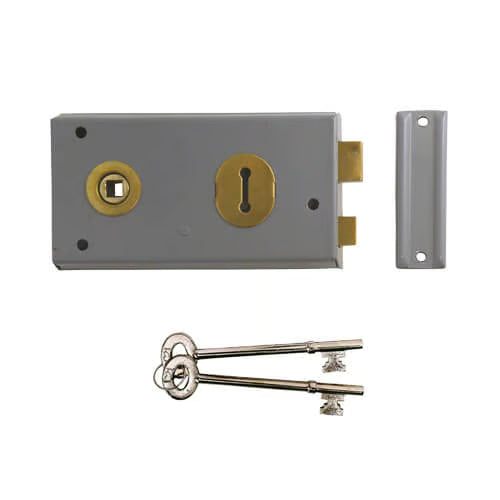

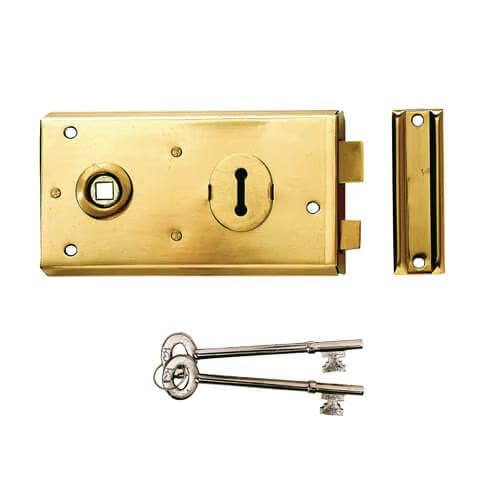

Available finishes include polished brass, black, and satin grey with electro brass features. Each lock is supplied boxed with a staple and two keys for added convenience.

Product Specifications

• Latchbolt is withdrawn by knob on either side
• Deadbolt is unlocked by key from both inside and outside
• Backset: 42mm
• Width: 138mm
• Height: 76mm
• Depth: 25mm
• Bolt throw: 13mm
• Lip depth: 8mm
• Faceplate to spindle: 106mm
• Spindle size: 8mm
• 2 Lever
• 12 differs
• Supplied with 2 keys
• Locks are reversible
• Pre-cut spare keys available
• Available in singles
• 5 locks per outer box

This lock combines functionality with aesthetic appeal, making it a reliable choice for enhancing security in your home or business.
