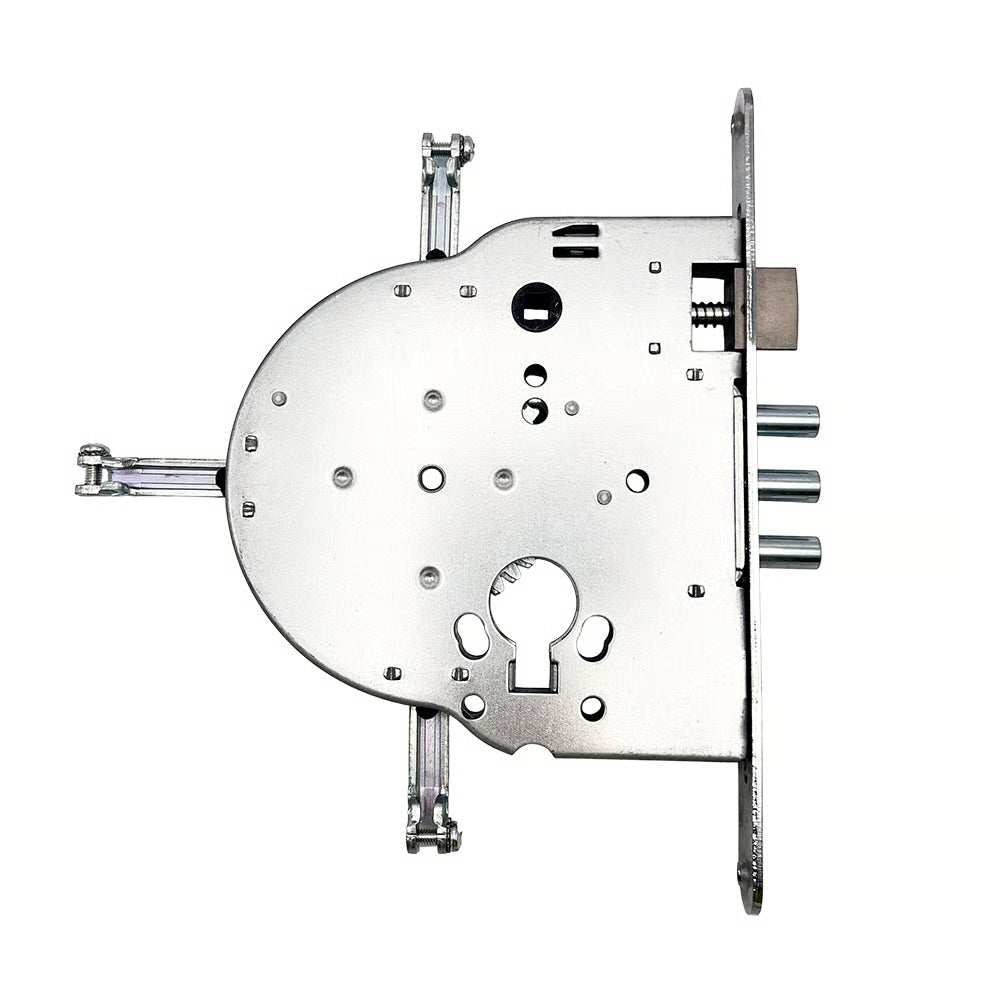

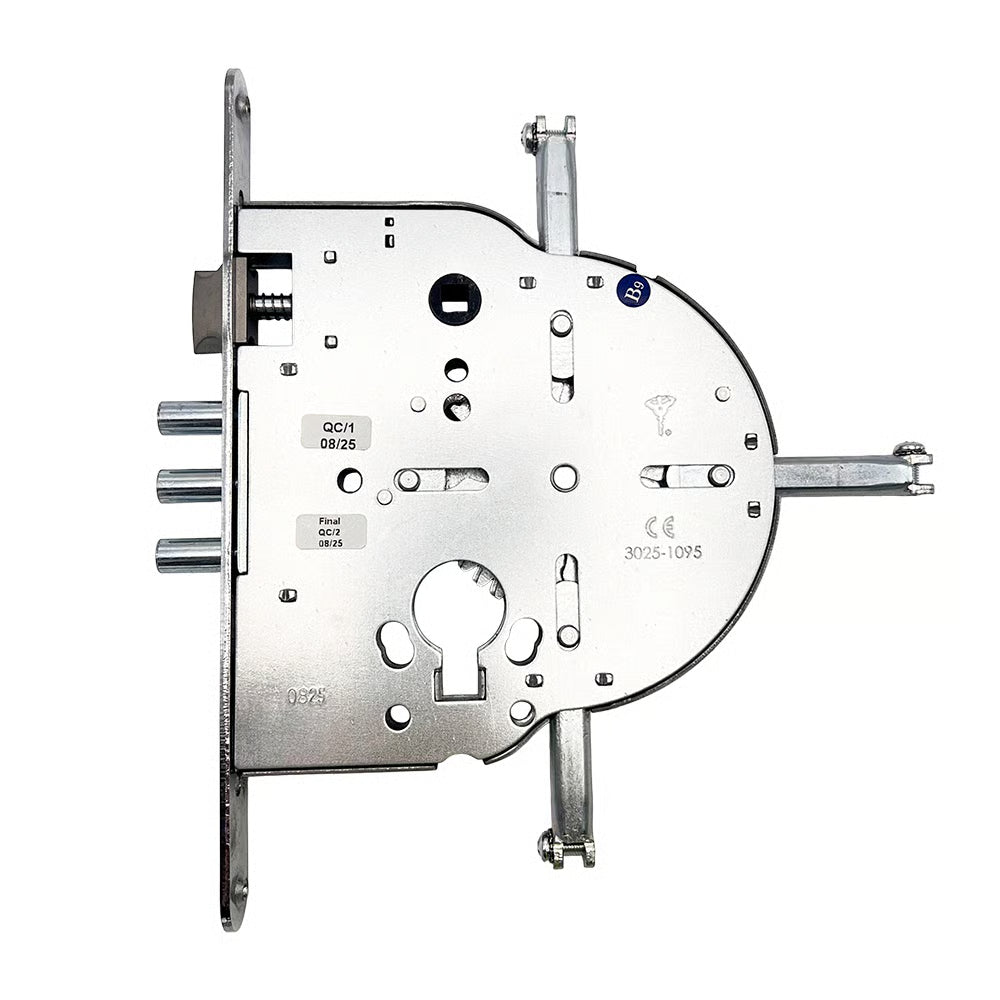

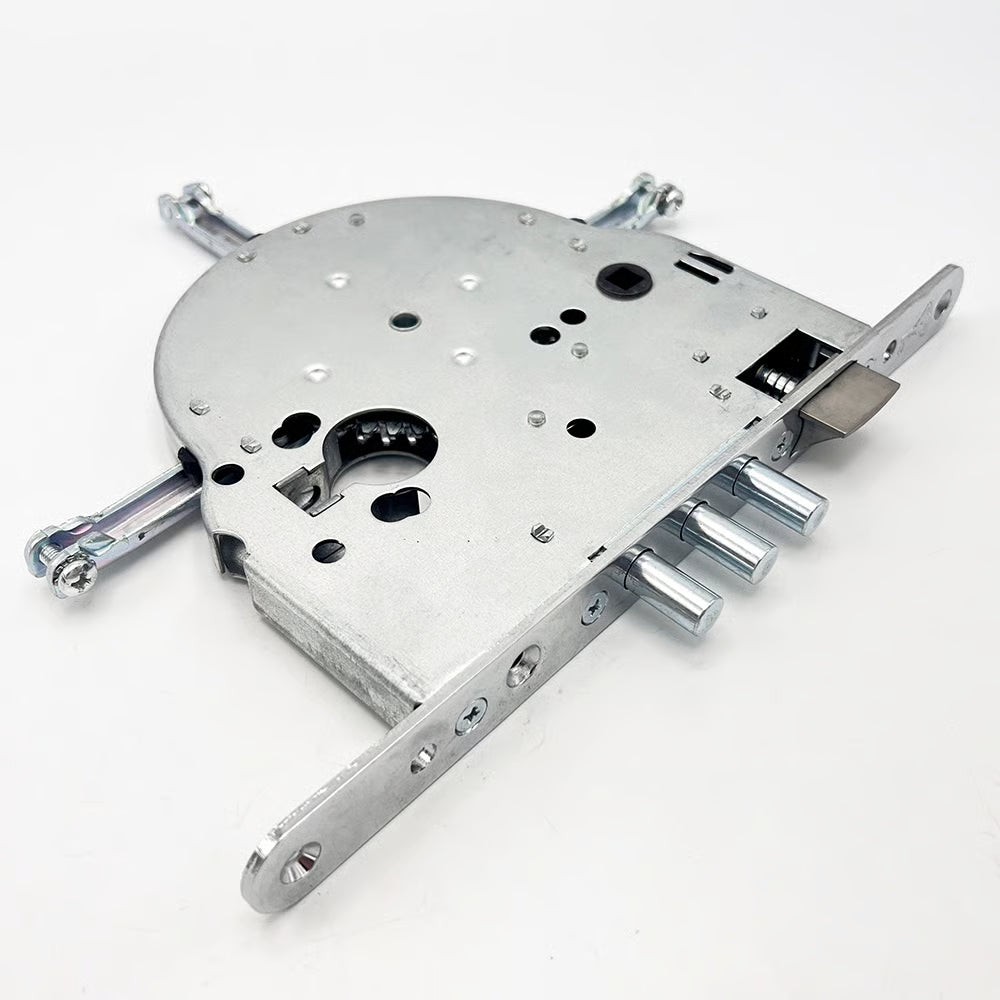

4-Way Lock Case

The Mut-T-Lock 4-Way Locks (235, 265) are designed for installation in both wood and metal doors, providing a robust 4-way multi-bolt locking system. These locks are particularly popular for high-security commercial applications, connecting seamlessly to vertical and horizontal shootbolt extensions to enhance security. Featuring a Key Wind operation, these locks require a Mu-T-Lock cog cam type cylinder for functionality. Additionally, the key can retract the latch, and lever handles (Mul-T-Lock SH300 type furniture) are available for added convenience.

Model Specifications

• Model 235 (S93466): Equipped with 3 x 12.7mm finger bolts.
• Model 265 (MUL265): Features 4 x 10mm finger bolts.

Key Features

• Operation: 360˚ key rotation for deadbolt action, with additional travel for latch action.
• Versatility: Suitable for right- or left-hand applications.
• Backset Options:
• Standard: 65 mm
• Special orders: 75 mm & 85 mm
• Compatibility: Optional 8'' front band available for American hollow core metal doors.
• Hardware Colors: Available in White, Brown, Shiny Brass, Nickel Chrome, and Gold.
• Assembly: Can be combined with SH300 High Security hardware.
