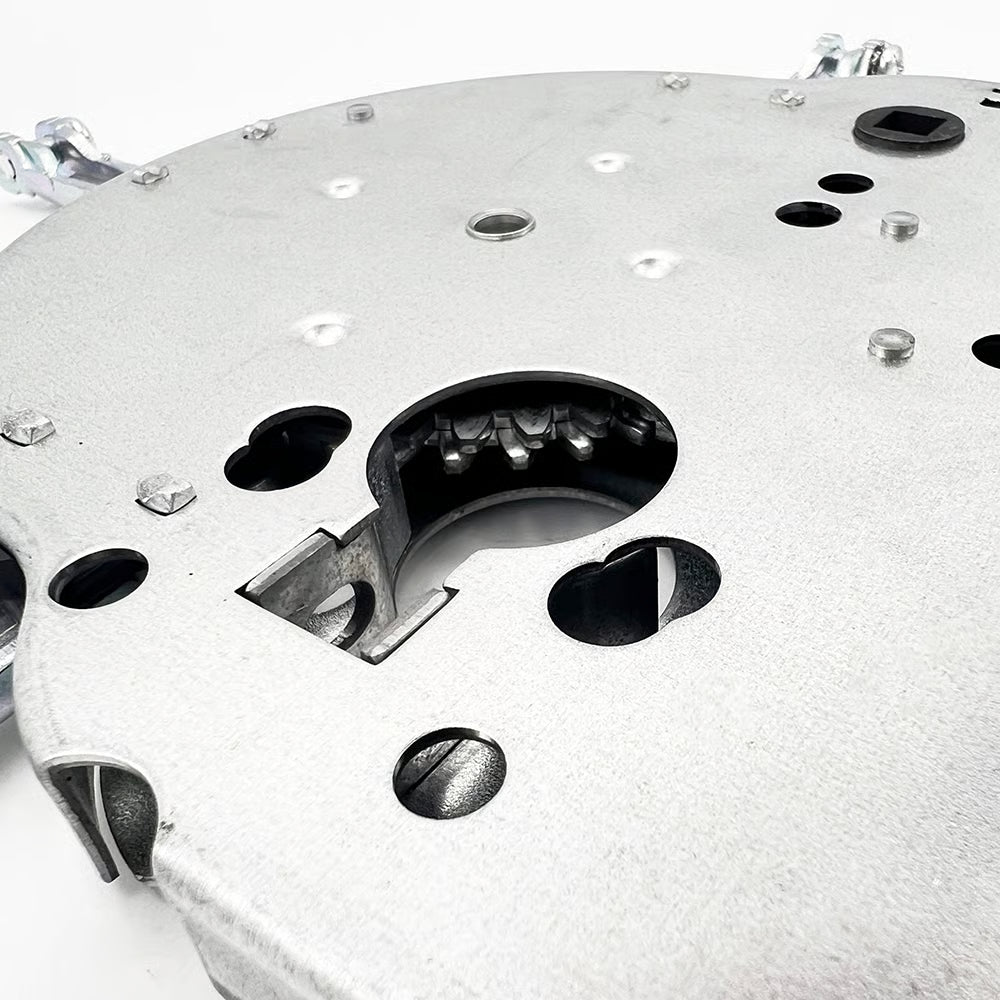

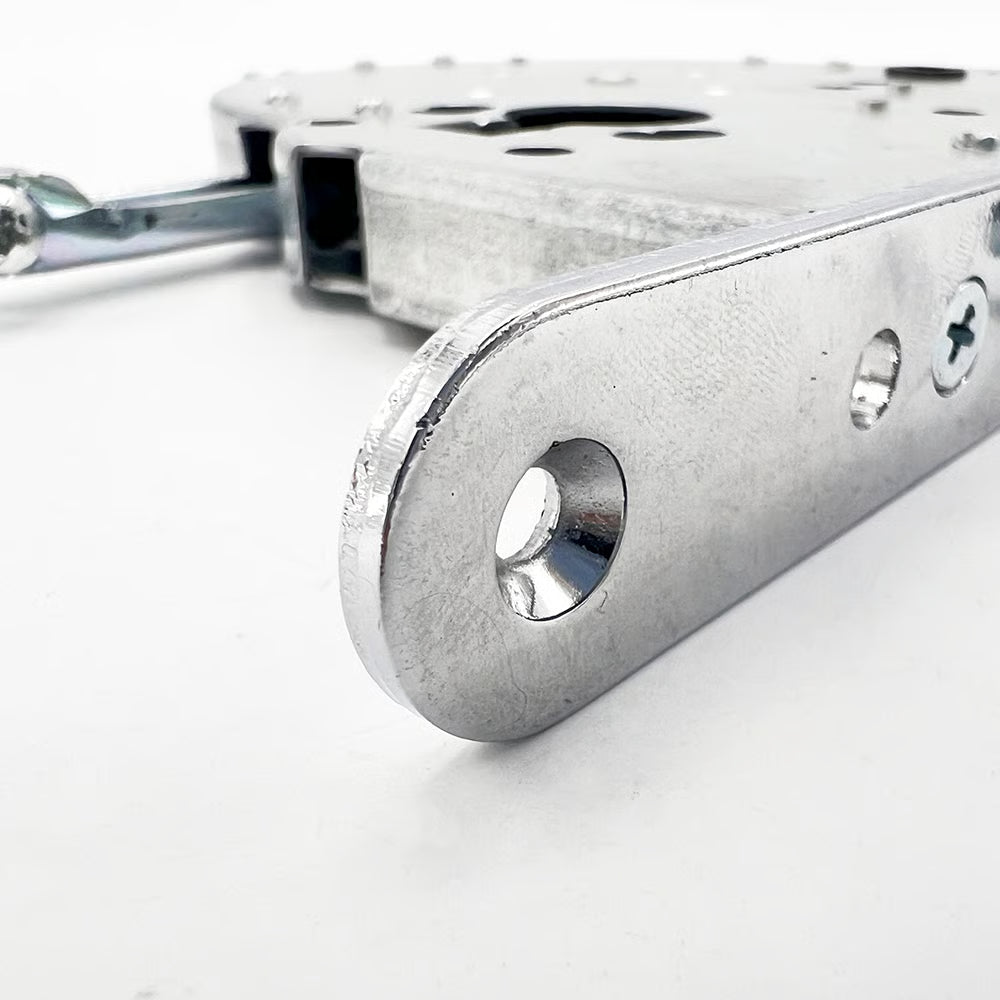

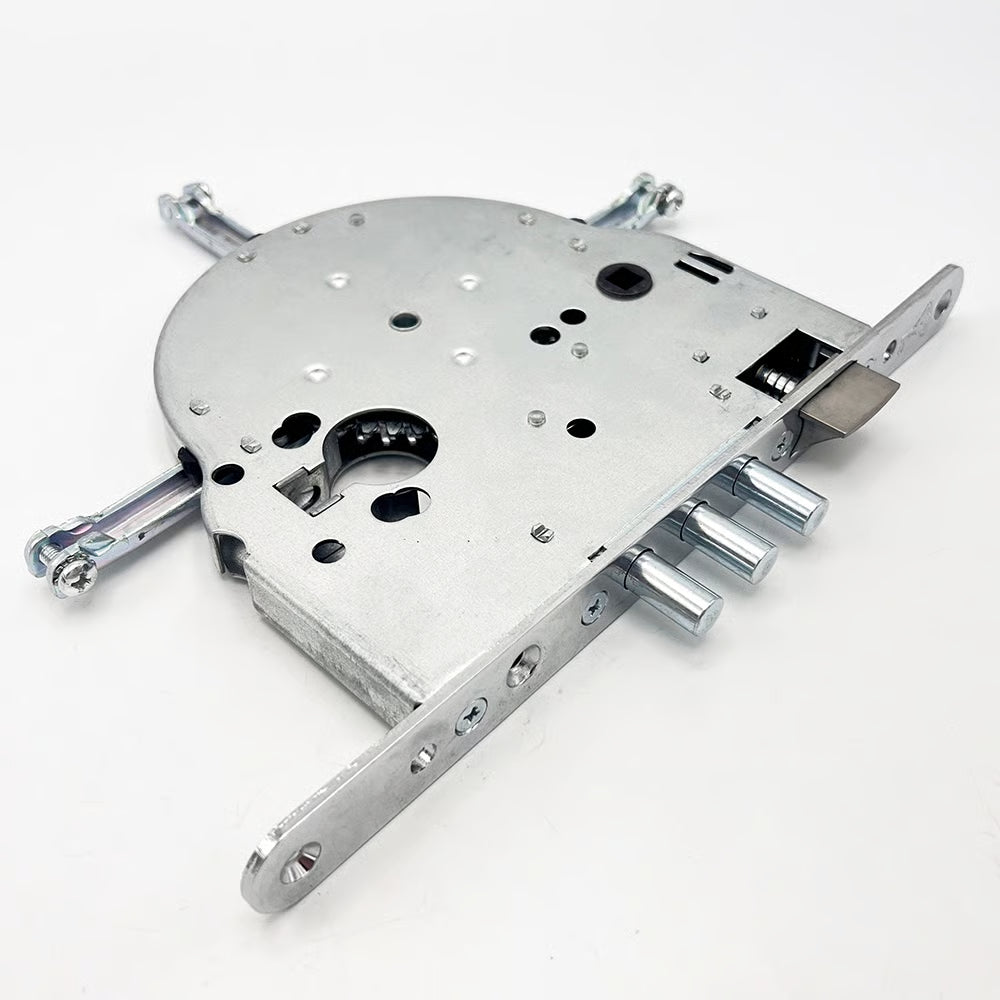

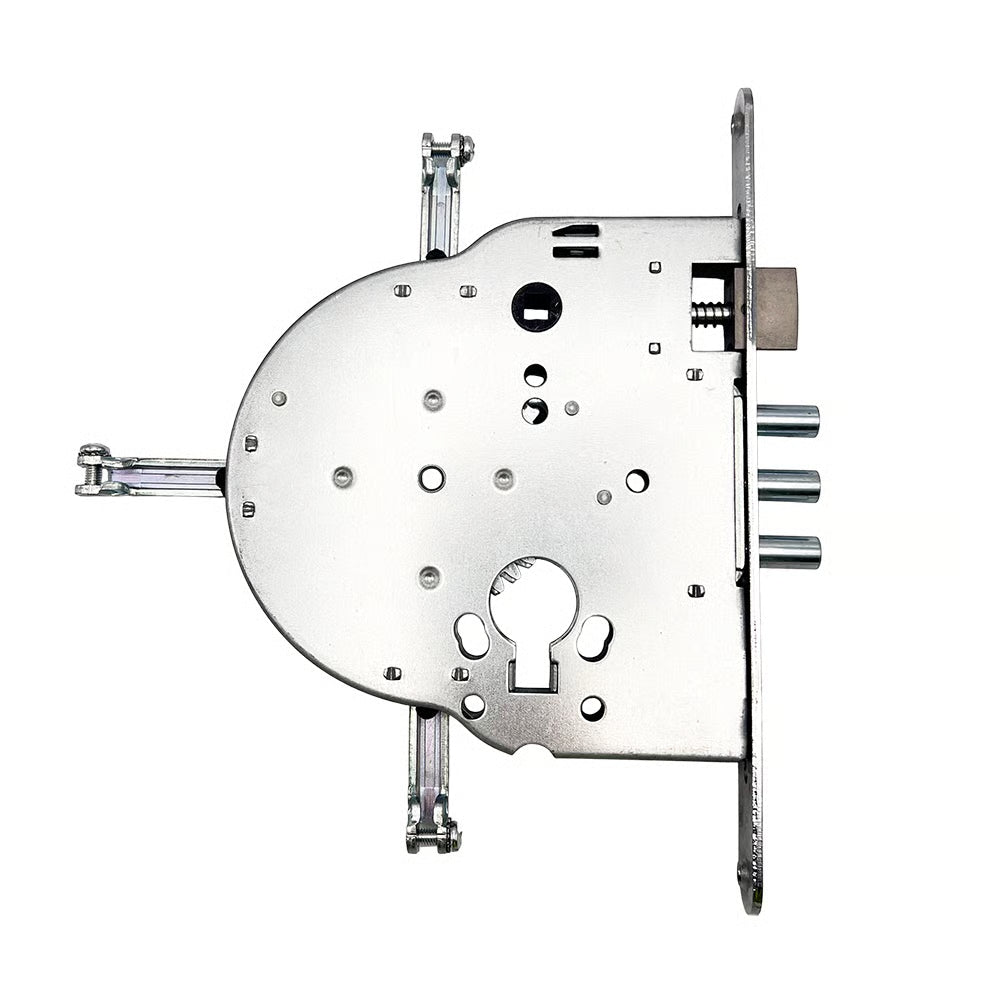

The Mut-T-Lock 4-Way Locks (235, 265) are designed for installation in both wood and metal doors, providing a robust 4-way multi-bolt locking system. These locks are particularly popular for high-security commercial applications, as they connect seamlessly to vertical and horizontal shootbolt extensions, ensuring maximum security.
Key Features
Operation: Key Wind operation utilizing a Mu-T-Lock cog cam type cylinder. The key not only locks but can also retract the latch. Lever handles compatible with these locks (Mul-T-Lock SH300 type furniture) are also available.
Model Specifications:

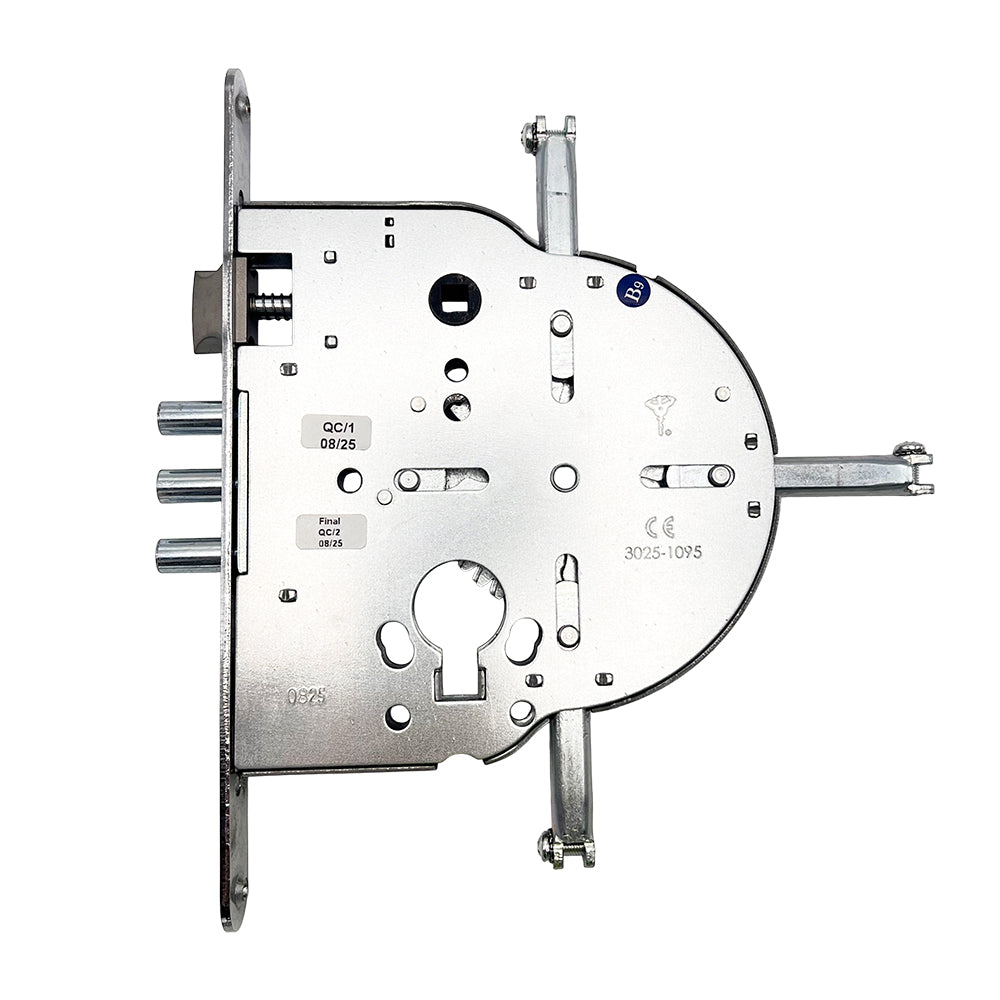

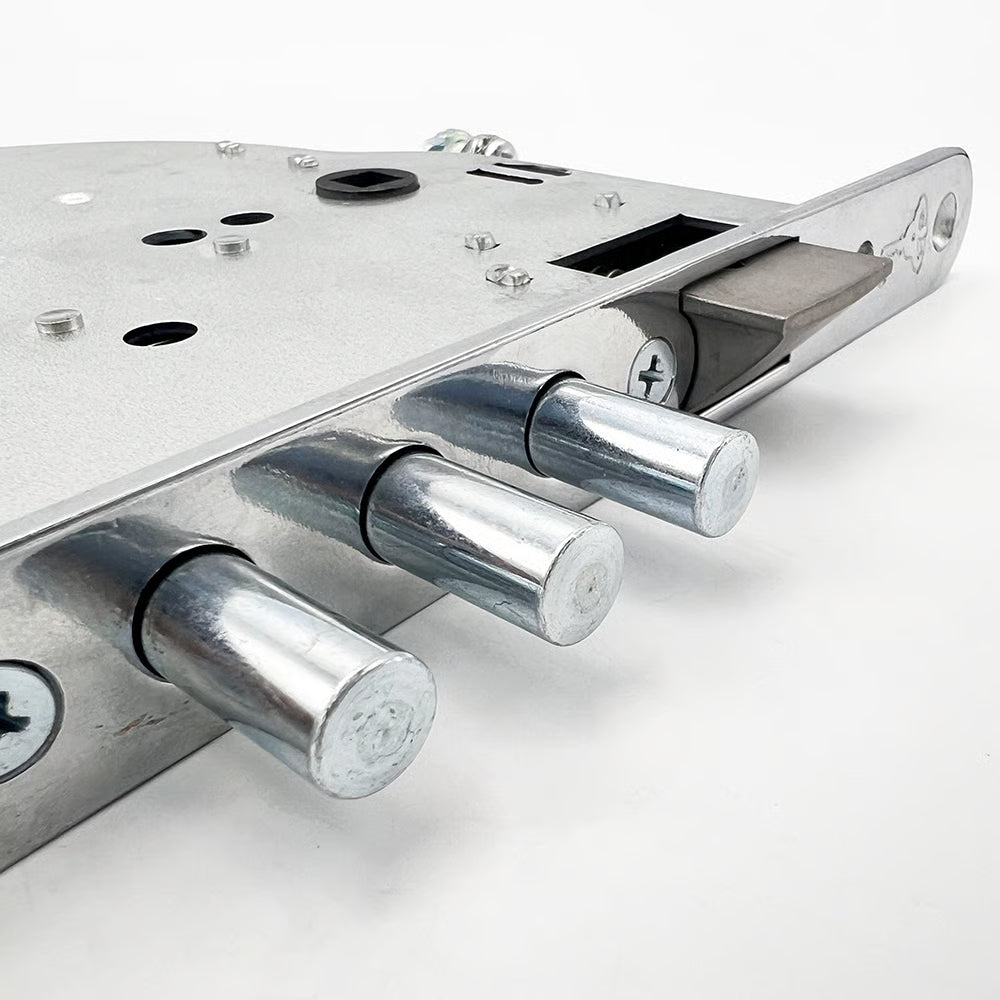

Model 235 (S93466): Equipped with 3 x 12.7mm finger bolts.

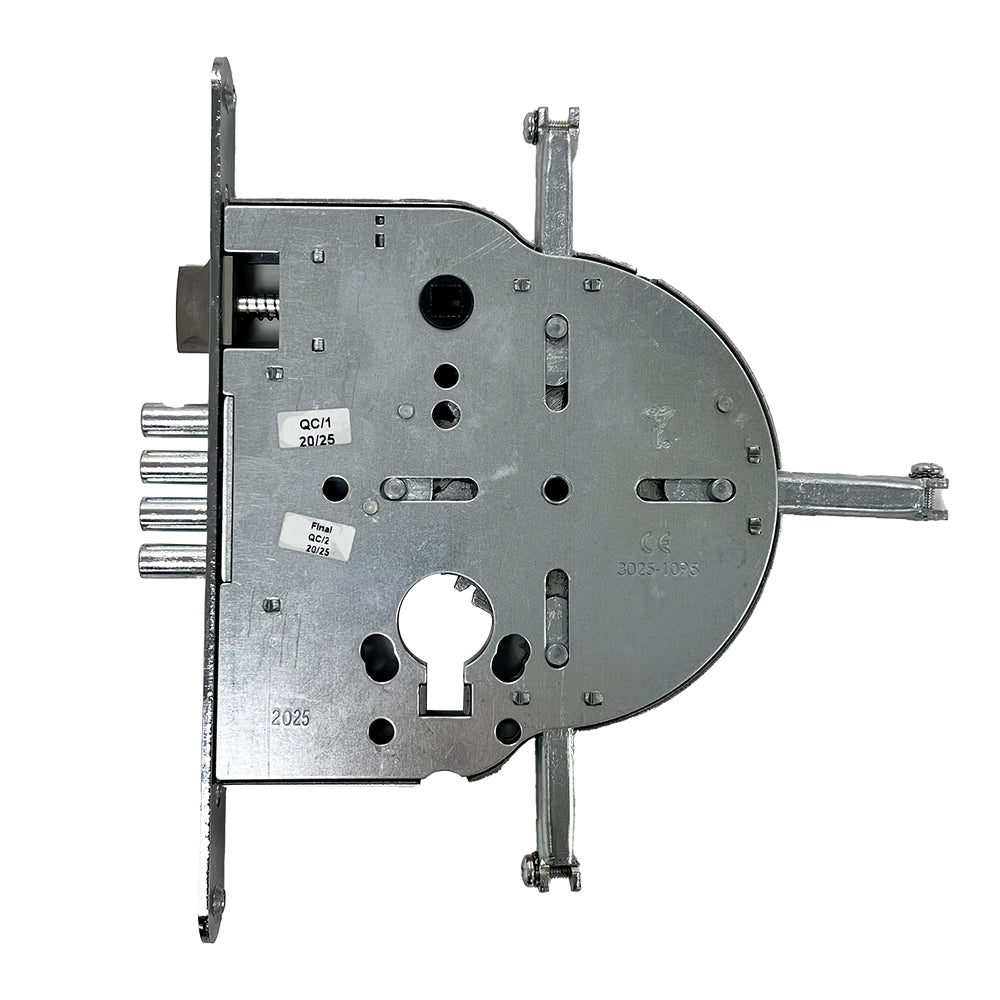

Model 265 (MUL265): Features 4 x 10mm finger bolts.
Product Specifications
Operation:
360˚ key rotation for deadbolt action.
Additional travel for latch action.
Suitable for right- or left-hand applications.
Backset Options:
Standard backset: 65 mm.
Special order backsets: 75 & 85 mm.
Optional 8'' front band available for American hollow core metal doors.
Hardware Colors:
Available in White, Brown, Shiny Brass, Nickel Chrome, and Gold.
Assembly: Can be assembled with SH300 High Security hardware.
Materials:
Case and mechanism made of steel.
Bolts constructed from steel.
Standards Compliance:
ISI technical specification 196.
EN12209.
These locks provide a high-security solution for any commercial door, ensuring peace of mind with their advanced locking mechanisms and durable construction.
