4-Way L/FP Handle Set SC

Product Overview

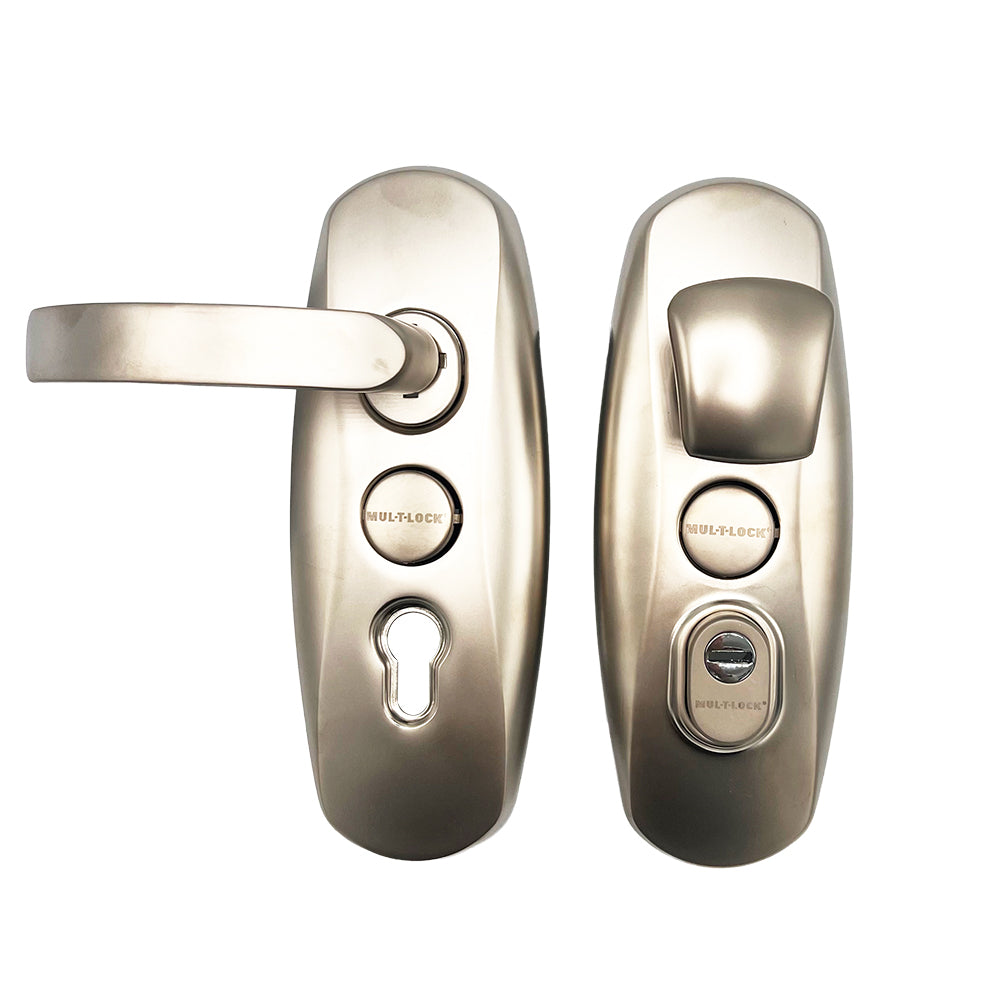

The Mul-T-Lock 4-Way L/FP Handle Set SC is an expertly designed lever fixed pad handle set, specifically tailored for use with Mul-T-Lock 4-way locks and the MPL210 lock series. This handle set features a fixed lever pad, allowing operation from one side while remaining stationary on the other. With its unsprung and non-handed design, it offers versatility and ease of installation, complemented by a sleek satin nickel finish.

Key Features

• Centres (PZ): 92mm
• Screw Centres: 170mm
• Backplate Length: 198mm
• Backplate Width: 82mm
• Spindle Size: 8mm
• Handing: Not handed
• Sprung or Unsprung: Unsprung
• Finish: Satin nickel
• Compatibility: Designed for Mul-T-Lock 4-way locks and MPL210 series

Fitment & What to Check

To ensure proper installation, confirm the following:

• The PZ centre measurement of 92mm aligns with the lock case for correct keyhole positioning.
• The screw centres of 170mm match the fixing points on your door.
• The backplate dimensions (198mm length and 82mm width) provide adequate clearance on the door surface.
• The spindle size of 8mm corresponds with the lock mechanism spindle diameter.
• As this handle set is not handed, it can be fitted to both left- and right-handed doors.

Common Ordering Mistakes

Avoid these pitfalls when ordering:

• Selecting handles with incorrect PZ centres that won't align with the lock.
• Neglecting to check screw centre spacing, which can complicate securing the handle.
• Choosing sprung handles instead of this unsprung model when fixed pad operation is necessary.
• Mismatching spindle sizes, leading to improper lever functionality.

Product Specification

• Manufacturer: Mul-T-Lock
• Centres PZ: 92mm
• Screw Centres: 170mm
• Backplate Length: 198mm
• Backplate Width: 82mm
• Spindle Size: 8mm
• Handing: Not Handed
• Sprung or Unsprung: Unsprung
• Colour: Satin Nickel
• Additional Info: Compatible with Mul-T-Lock 4-way locks and MPL210 lock series

This handle set combines functionality with a modern aesthetic, making it an ideal choice for enhancing security and style in your space.
