3R35X Egress Non British Standard 5 Lever Mortice Deadlocking Latch

Product Overview

The Union 3R35X is a reliable escape deadlocking latch, part of the renowned C-Series range of mortice locks. Originally manufactured by Chubb, this lock retains the same high-quality features under the new Union branding, making it a perfect replacement for older models.

Key Features:

• Distinctive Design: The lock showcases an upright design with detainers instead of levers, providing enhanced security with a greater number of key combinations compared to traditional lever locks.

• Emergency Escape Functionality: The 3R35X version allows for quick escape, as the internal handle cannot be locked, ensuring safety in emergencies.

• Automatic Deadlocking: The latch engages automatically when the door is closed, providing peace of mind that the door remains secure.

• Versatile Compatibility: Suitable for doors up to 50mm thick, with options for extra-long keys for thicker doors.

• Handed Selection: Ensure you select the correct hand (left or right) based on your door's hinge placement for optimal functionality.

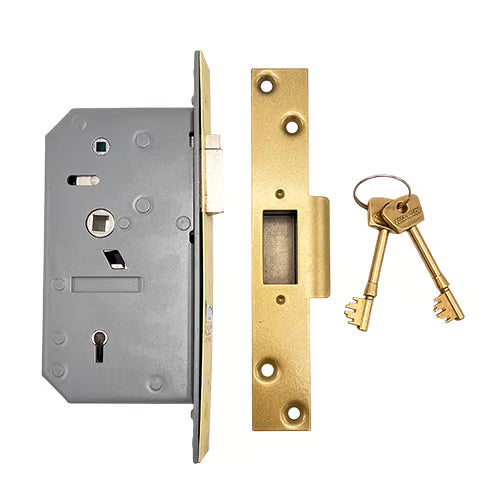

• Keying Options: Supplied with two brass keys, with the option to order additional keys or have multiple locks keyed alike for convenience.

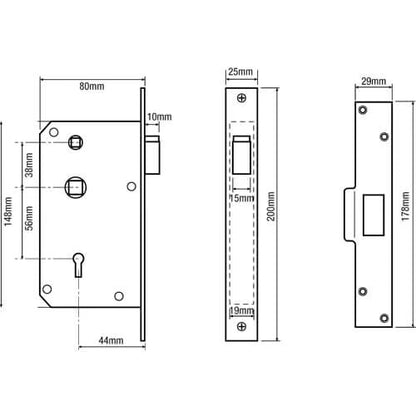

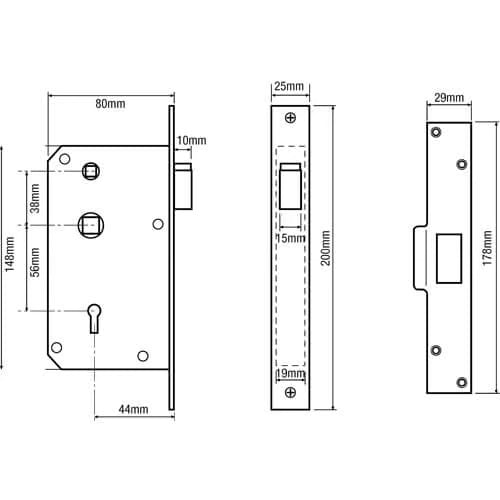

Specifications

• Case Colour: Silver
• Case Height: 148mm
• Faceplate Dimensions: 200mm height x 25mm width
• Deadbolt Throw: 10mm
• Follower Size: 8mm
• British Standard Compliance: No
• Keying Options: Can be keyed alike

Installation Notes:

When replacing an existing lock, be aware that the new lock may differ in size. Ensure your door is adequately thick to accommodate the mortice lock, with a minimum thickness of 44mm recommended by the Master Locksmith Association. For new installations, consider using Souber’s DBB morticer for efficient fitting.
