3G114E British Standard Mortice Deadlock with Microswitch

Product Overview

Introducing the 3G114E BS3621 Mortice Dead Lock, a robust and reliable security solution designed for both residential and commercial properties. This lock features a single pole microswitch, making it compatible with alarm systems for enhanced security.

Key Features

• High Security: This mortice lock meets the rigorous standards of British Standard BS3621:2007, ensuring it has undergone extensive testing for quality and security. With 5 levers and anti-drill and anti-saw features, it provides superior protection against unauthorized access.

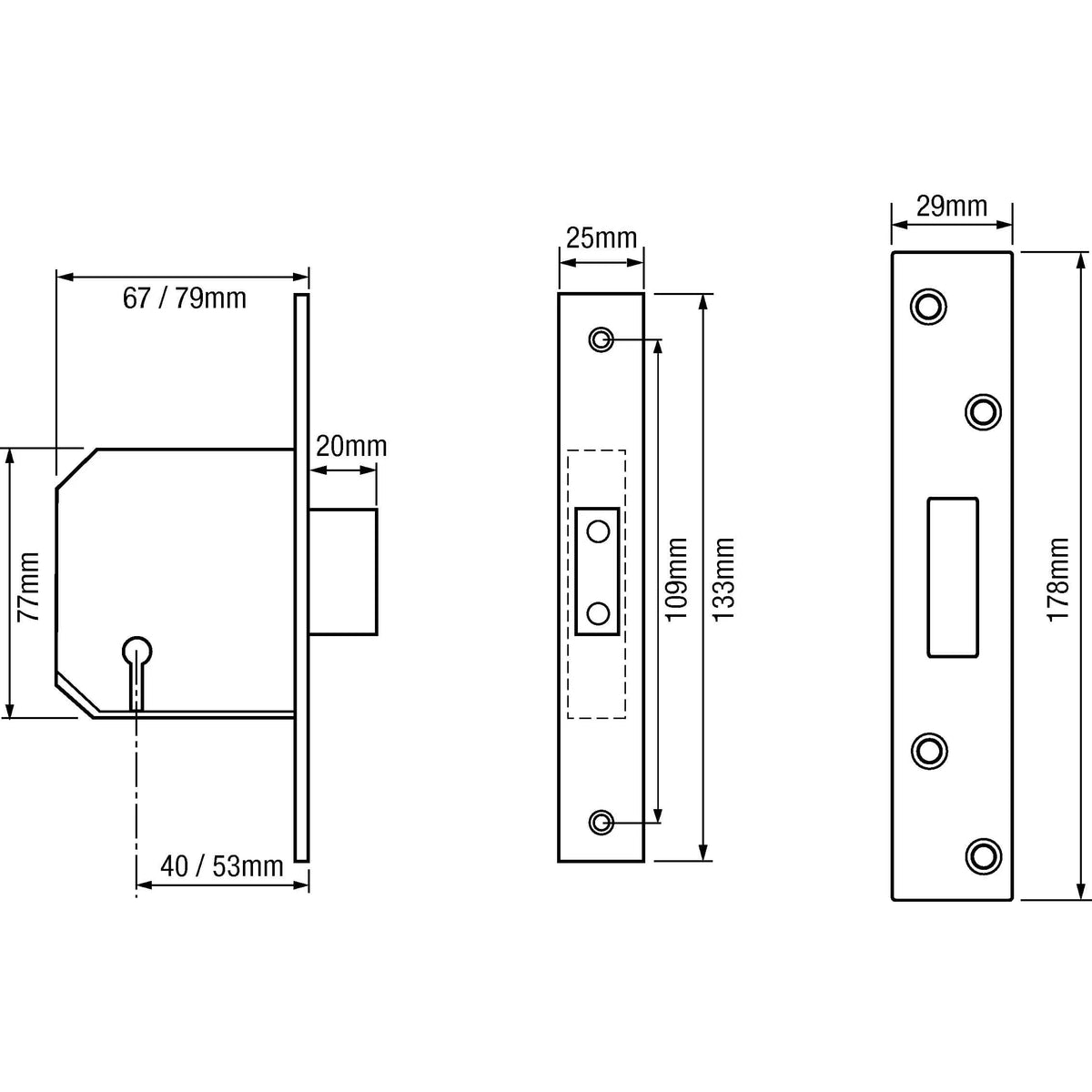

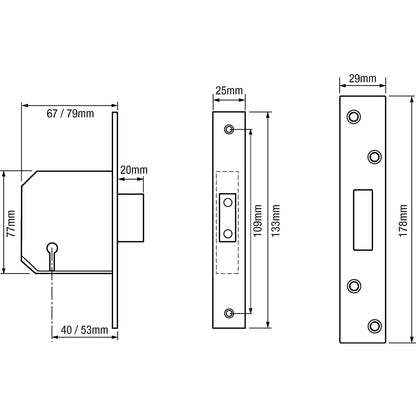

• Unique Measurements: The 3G114E is designed with specific dimensions that set it apart from other mortice locks. The standard case widths of 67mm (2.5") and 79mm (3") come with a backset of 40mm and 53mm, respectively. Please refer to the line drawing for precise measurements.

• Versatile Installation: This lock is non-handed, making it suitable for doors hinged on either side and opening inwards or outwards. It can be fitted on doors up to 54mm thick, and for thicker doors, extra-long keys can be provided upon request.

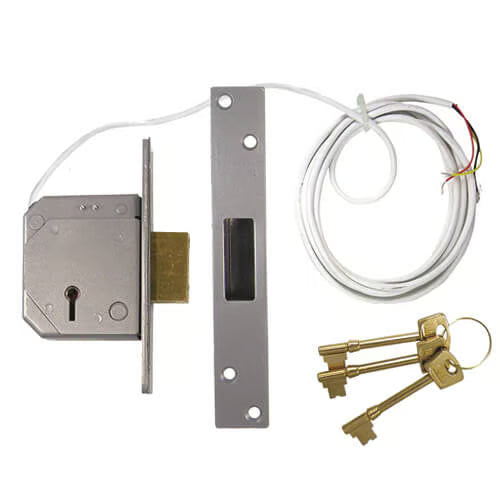

• Complete Package: Supplied with 2 keyhole escutcheons and a security striking box in a matching finish, this lock is ready for installation. It also comes with 3 brass keys, with the option to order additional keys as needed.

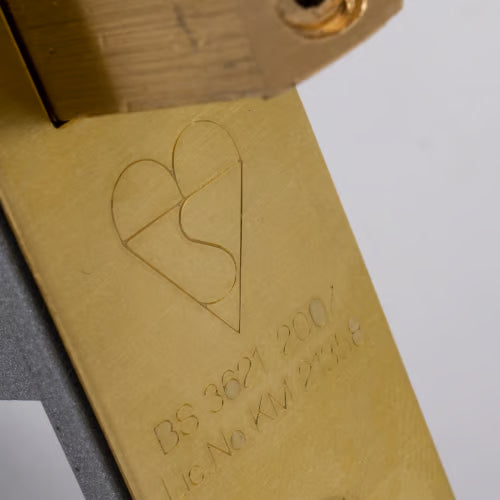

• Insurance Compliance: Many insurance companies require locks on external doors to comply with BS3621 or BS8621. The 3G114E meets these requirements, and you can find the BSI kitemark on the faceplate for verification.

Installation and Compatibility

When replacing an existing lock, be aware that the new lock may differ in size. Adjustments to the door may be necessary for proper fitting. For new timber doors, we recommend using the Souber DBB morticer for efficient installation.

Additional Information

has a rich history of over 180 years in manufacturing high-quality locks and door hardware. Their commitment to excellence ensures that every product is designed with the customer’s needs in mind.

For more information on British Standards for mortice locks, visit the MLA's website here.

Product Specifications

• Product Category: Mortice Deadlock
• Product Type: British Standard
• Case Colour: Silver
• Case Height: 77mm
• Faceplate Height: 133mm
• Faceplate Width: 25mm
• Deadbolt Throw: 20mm
• Keys Supplied: 3
• British Standard Compliance: BS3621:2007
• Can be Keyed Alike: Yes
• Handed: Non-handed
• Escutcheon Plates Supplied: Yes

For any additional queries or to explore our range of associated products, please feel free to reach out. Your security is our priority!
