35/92 2 Hook 2 Roller Twin Spindle

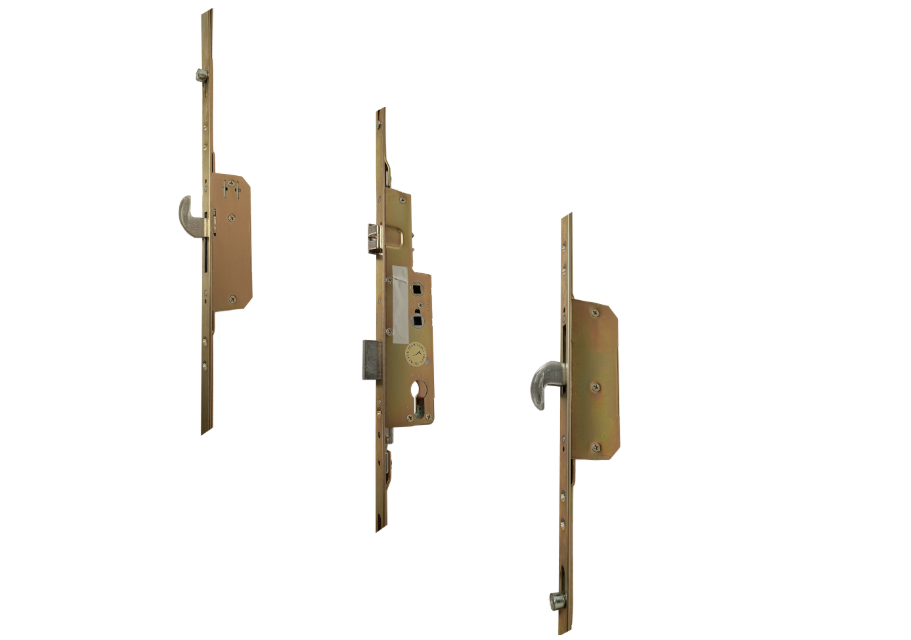

The AVOCET Pioneer 35/92 2 Hook 2 Roller Twin Spindle is a robust locking solution designed for enhanced security and ease of use. With a 35mm backset and a case height of 220mm, this unit is engineered to fit seamlessly into UPVC and composite doors.

Key Specifications

• Backset: 35mm
• Centres: 92mm & 62mm
• Case Height: 220mm
• Case Width: 50mm
• Twin Spindle: Yes
• Locking Mechanism: Latch & deadbolt centre case

Security Features

This locking system is equipped with two roller cams that ensure smooth operation, while the two opposing hooks provide an additional layer of security.

Identification

Look for "AVOCET" or "WMS" stamped on the faceplate. The center case features a distinctive large cut-out step in the top corner for easy identification.

Gearbox Details

The gearbox includes a twin spindle design, maintaining a case height of 220mm and a width of 50mm, ensuring compatibility with various door types.

Additional Locking Points

Beyond the primary locking points in the gearbox, the full-length strip incorporates two hooks and two roller locking points for enhanced security.

Optional Features

This unit can be fitted with optional shootbolts for added security, making it versatile for different applications.

Faceplate Specifications

• Width: 16mm
• Length: 2.2m
• Application: Ideal for UPVC & composite doors

Locking Point Distances

• Distance A: 575mm
• Distance B: 630mm
• Distance C: 735mm
• Distance D: 800mm

Installation Notes

Please note that this unit cannot be cropped down on site. Ensure you check the required unit length before purchasing to avoid any compatibility issues.

Handing Instructions

The latch can be easily reversed by removing the screw, flipping the latch, and refitting the screw, allowing for flexible installation.

Spung/Unsprung Operation

This gearbox is unsprung and must be installed with sprung handles or a compatible spring cassette to ensure reliable lever return and proper operation.

Operation Method

To lock, lift the lever to engage the locking mechanisms, then turn the cylinder one full turn. To unlock, turn the key one full turn and push down on the lever.

Key Features Summary

• Reversible latch without removing the lock
• Latch & deadbolt centre case
• Two roller cams for effortless operation
• Enhanced security with opposing hooks
• Optional shootbolt compatibility
• Endurance tested for 100,000 operations
• Suitable for lever-lever and lever-pad applications
