3222 Inline Locking Espag UPVC Window Handles

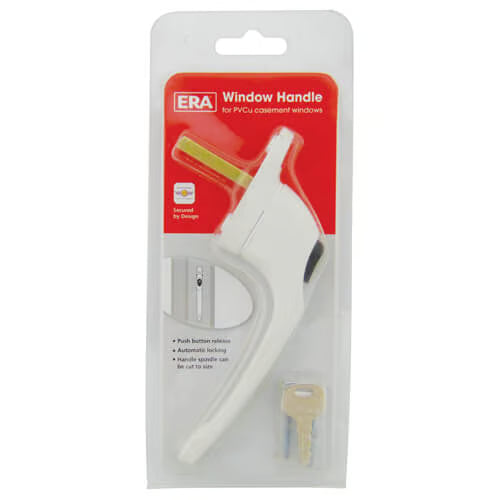

ERA inline locking espag window handle. ERA window handles are supplied clam visipacked for retail display purposes. Spindles can be cut to size. There are several variants available. Please refer to the table below.

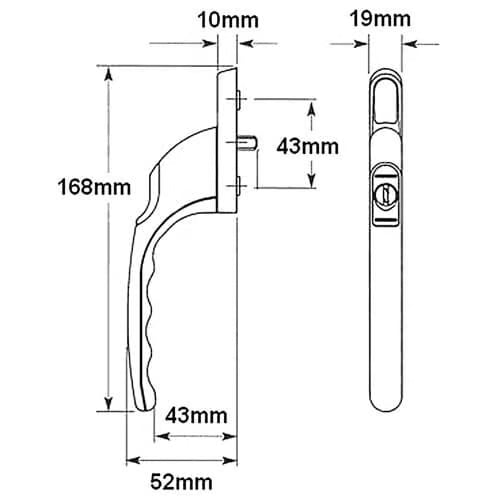

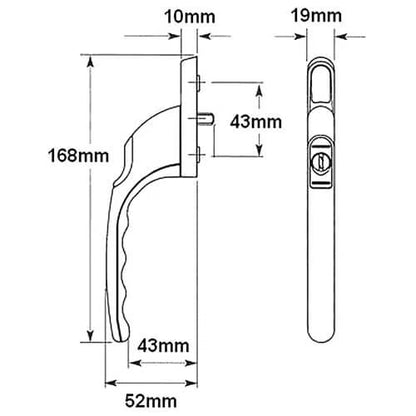

• Screw centres: 43mm
• Backplate dimensions: 69mm x 19mm
• Spindle size: 40mm x 7mm
• Contents included: x2 bolts, x1 key, Cover cap

• Handle spindle is turned in the espag gearbox to throw locking points
• Locked and unlocked by key
• Push button to release
• Backplate: 69mm x 19mm
• Screw centres: 43mm
• Supplied with 1 key
• Not supplied with fixing bolts
• Handles are not handed
• Spindles can be cut down
• Suitable for UPVC Windows
• Supplied in singles
• Outer boxes of 50
