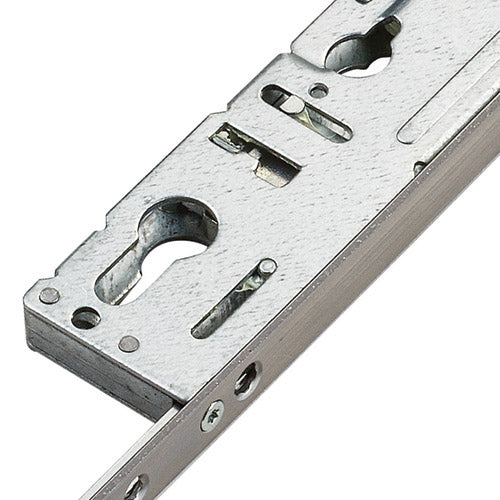

3 Lift Lever Passive Lock

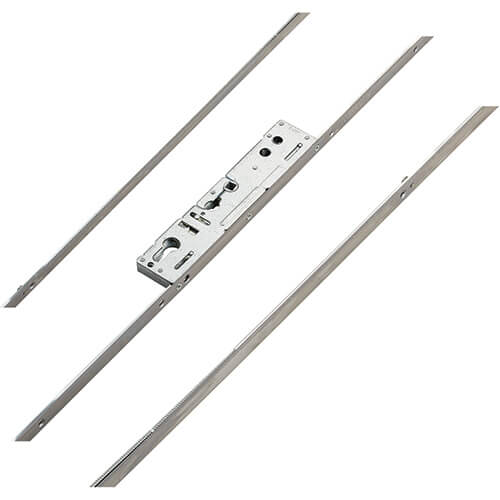

Product Overview: Millenco Mantis 3 Multipoint Door Lock

The Millenco Mantis 3 multipoint door lock is designed specifically for the passive door in a pair of French doors, featuring no locking points. This version, known as the slave door variant, is equipped with 92mm centres.

Key Features:

• Third Generation Design: The Mantis 3 is part of the third generation of Millenco locks, offering improved measurements of 92mm and 62mm centres (PZ), and is now under the Yale group of companies.
• Variants Available: The Mantis 3 comes in three configurations:
  • 2 hooks and 3 deadbolts
  • 3 hooks and 2 deadbolts with 2 rollers
  • Passive lock version
• Faceplate Options: Historically available with a 20mm faceplate, the Mantis 3 is now exclusively offered with a 16mm faceplate.

Identification Tips:

Identifying a Millenco Mantis 3 lock can be challenging compared to the original Mantis 1 and 2. To confirm you have the correct lock:

• Check the locking points for the unique hook and deadbolt arrangement.
• Measure the centres to ensure they are 92mm/62mm, as early versions may lack branding on the faceplate.

Compatibility:

Earlier Mantis 3 locks had hook positions that differed slightly from modern versions, typically by about 20mm, allowing for compatibility with older models with minimal adjustments.

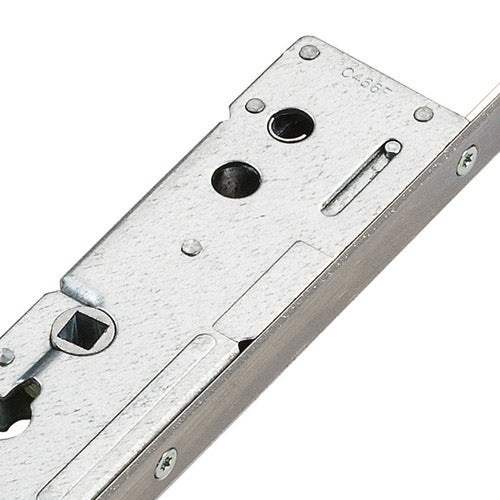

Gearbox Specifications:

• Configuration: The Mantis 3 gearbox is available in a double spindle for lift lever or double spindle nightlatch operation.
• Backset: The only backset option is 35mm.
• Dimensions: Gearboxes measure 228mm high by 50mm wide. Hookbolt versions include a central hook bolt that throws downwards, measuring 30mm high, alongside a latch of the same height. The distance between the latch and hook is 78mm. The deadbolt version shares these dimensions but replaces the hookbolt with a deadbolt.

Installation Note: Unlike previous Mantis gearboxes, the Mantis 3 gearbox can be easily removed by unscrewing three fixing screws.

Operating Instructions:

To Lock the Door:

1. Lift the handle upwards to engage the locking points.
2. Secure the locking points and main deadbolt (if applicable) by turning the key.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

This comprehensive overview ensures you have all the necessary information to effectively utilize and identify the Millenco Mantis 3 multipoint door lock.
