3 Latch Deadbolt 2 Hooks Multipoint Door Lock - Autolocking

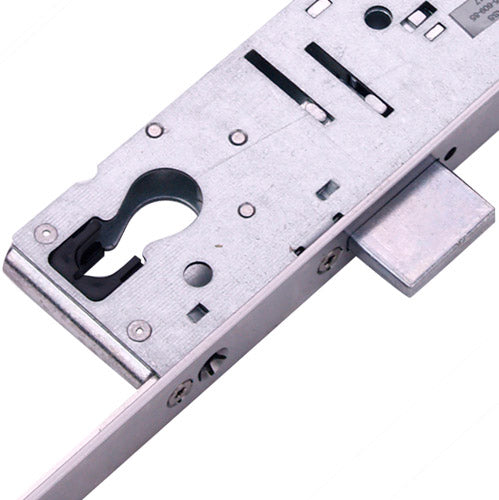

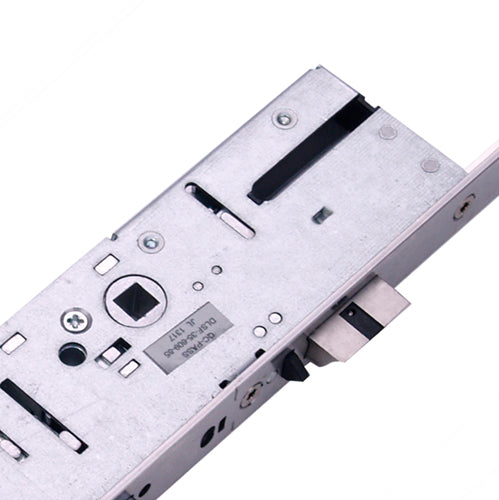

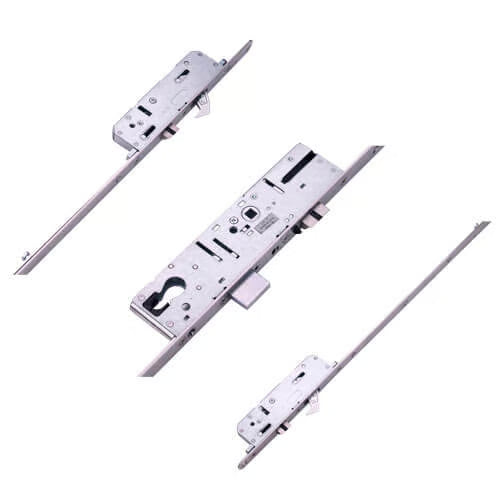

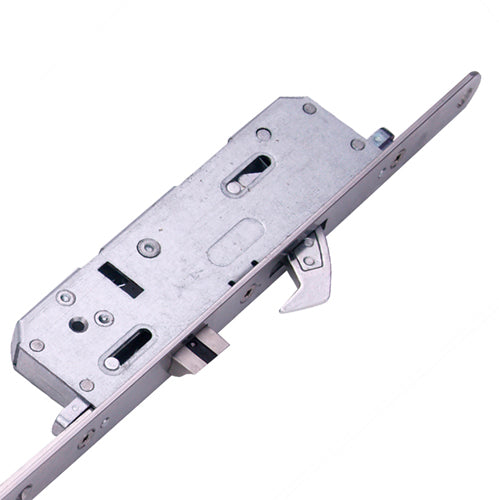

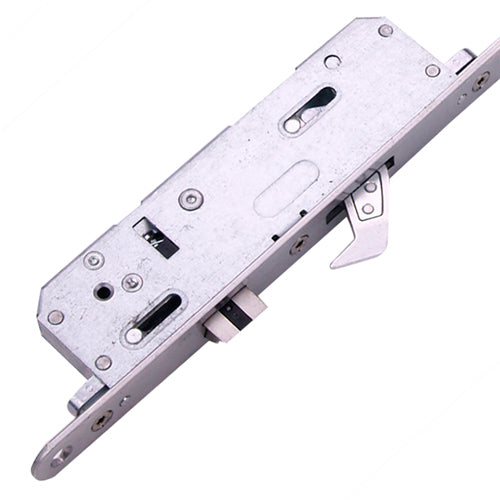

Product Overview: ERA Surefire Multipoint Door Lock

The ERA Surefire multipoint door lock is engineered for optimal security, featuring 2 hooks, 1 deadbolt, and 1 latch. This lock is designed for PVCu, timber, or composite doors, providing a robust solution that is both user-friendly and highly secure.

Key Features:

• Automatic Locking Mechanism: Simply close the door to engage the trigger, which activates all locking points simultaneously. This ensures that the door is securely locked at multiple points, enhancing its resistance to forced entry.
• Versatile Gearbox Options: Available in Classic and Heritage styles, the SureFire lock accommodates various door handle positions, making it suitable for a wide range of door types.
• Distinctive Design: The lock features external hooks with auto fire latches that engage when the door is closed, providing an additional layer of security. The unique design of the SureFire gearbox, measuring 213.6mm in length, sets it apart from other ERA locks.
• Durability and Performance: Constructed from lightweight aerospace-grade aluminum, the hooks are designed for high performance with anti-saw protection and hardened anti-drill inserts. The lock meets rigorous testing standards, including BS EN 1670:2007 Grade 4 for corrosion resistance and PAS 24 for security compliance.

Operation Instructions:

• To Lock:
  • Close the door to automatically engage the latch and locking points.
  • Turn the key to deadlock the mechanism.
• To Unlock:
  • Turn the key to unlock the mechanism.
  • If applicable, push the lever down to retract the locking points or turn the key further to retract the latch.

Testing and Compliance: The ERA Surefire lock has undergone extensive testing, including endurance tests for 150,000 cycles and fire tests to BS 476 FD30 and FD60 standards, making it suitable for fire door applications when approved by a certified organization.

Conclusion: The ERA Surefire multipoint door lock is an exceptional choice for those seeking a reliable and secure locking solution. Its automatic locking feature, durable construction, and compliance with industry standards make it a top-tier option for enhancing door security.

Product Specification

• Manufacturer: ERA
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1395mm
• Height: 2137mm
• Top Hook to Spindle: 715mm
• Bottom Hook to Spindle: 680mm
• Door Material: Timber, Composite

Measuring Guidelines:

To ensure accurate measurements for your ERA Surefire multipoint door lock, follow these guidelines:

Backset Measurement:

• Measure from the edge of the door to the center of the keyhole. This distance is crucial for proper lock alignment.

Centres PZ Measurement:

• Measure from the center of the keyhole to the center of the handle hole. This ensures that both components align correctly for optimal operation.

Faceplate Measurement:

• Measure the width and height of the existing faceplate on your door. This will help you select the correct faceplate from the drop-down options.

By following these measurement guidelines, you can ensure a perfect fit for your ERA Surefire multipoint door lock, enhancing both security and functionality.
