3 Latch 3 Hooks 2 Deadbolts Double Spindle Multipoint Door Lock

Product Overview: Millenco Mantis 3 Multipoint Door Lock

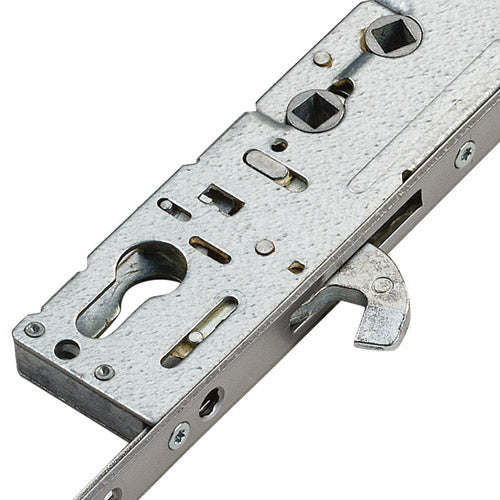

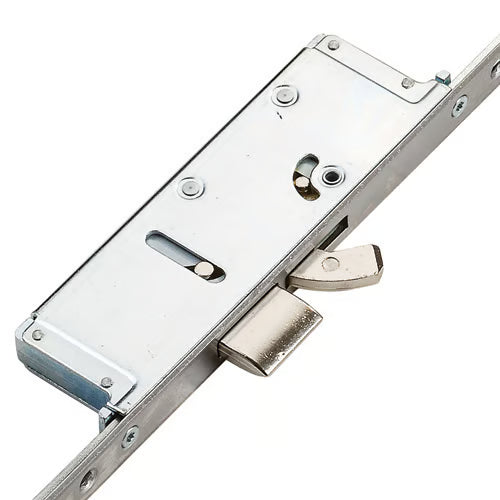

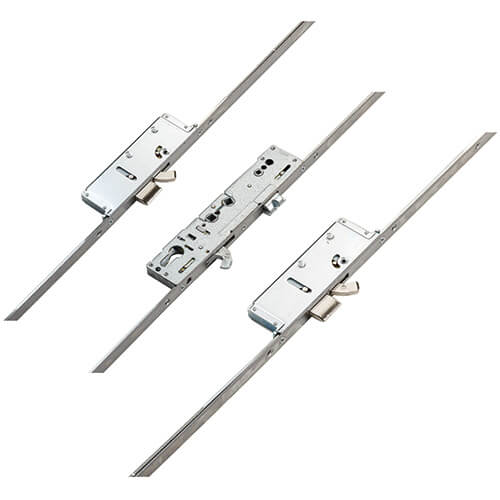

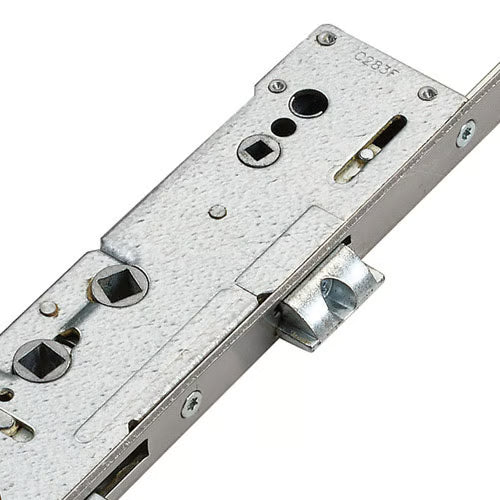

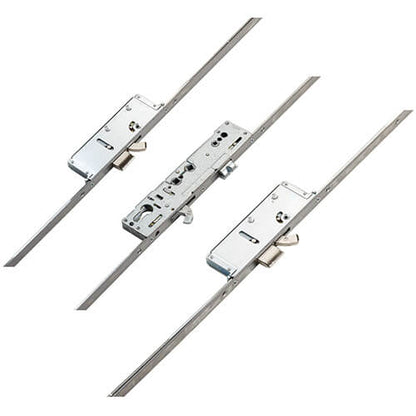

The Millenco Mantis 3 multipoint door lock is designed for enhanced security and ease of use, featuring a robust locking mechanism with 3 hooks, 2 deadbolts, and 1 latch. This third-generation lock retains the traditional 92mm centres while incorporating the unique hook and deadbolt locking points from its predecessors, the Mantis 1 and 2 series.

Key Features:

• Locking Mechanism:
  • 3 Hooks
  • 2 Deadbolts
  • 1 Latch
• Dimensions:
  • 92mm and 62mm centres (PZ)
  • Gearbox dimensions: 228mm high x 50mm wide
  • Hook cases: 140mm x 48mm
• Variants Available:
  • 2 hooks and 3 deadbolts
  • 3 hooks and 2 deadbolts (with 2 rollers)
  • Passive lock version
• Faceplate Options:
  • Available only with a 16mm faceplate

Identification Tips:

Identifying the Millenco Mantis 3 lock can be tricky. Look for the unique hook and deadbolt arrangement and measure the centres to confirm they are 92mm/62mm. This method is the most reliable, especially since earlier versions may lack branding on the faceplate.

Installation and Compatibility:

The Mantis 3 lock is designed for compatibility with older versions, as the hook positions may differ by only 20mm. The gearbox configuration is double spindle for lift lever or double spindle nightlatch operation, with a standard backset of 35mm.

Operation Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Product Specification

• Manufacturer: Millenco
• Spindle Size: 8mm
• Hooks: 3
• Deadbolts: 2
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1100mm
• Height: 2200mm
• Top Hook to Spindle: 550mm
• Bottom Hook to Spindle: 550mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines:

To ensure proper installation and compatibility, follow these measuring guidelines:

Backset Measurement:

1. Measure from the edge of the door to the center of the keyhole.
2. This distance is your backset measurement.

Centres Measurement:

1. Measure the distance between the centers of the keyhole and the handle hole.
2. Confirm that the measurement is either 92mm or 62mm.

Faceplate Measurement:

1. Measure the width and height of the existing faceplate.
2. Ensure it matches the options available in the drop-down selection.

Operation Details:

• The operation type can vary based on the locking mechanism. Select the appropriate option from the drop-down menu to specify whether it is a lift lever or nightlatch operation.

By following these guidelines, you can ensure that your Millenco Mantis 3 lock is installed correctly and functions optimally.
