3 Latch 3 Hooks 2 Deadbolts Double Spindle Multipoint Door Lock

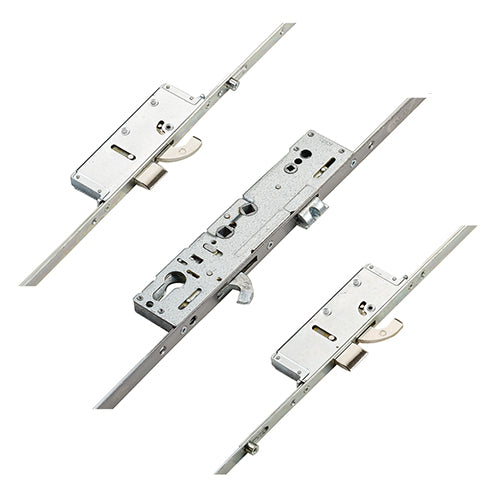

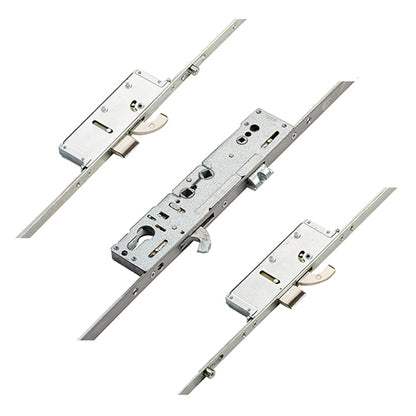

Product Overview: Millenco Mantis 3 Multipoint Door Lock

The Millenco Mantis 3 multipoint door lock is designed for enhanced security and ease of use, featuring a robust locking mechanism that includes 3 hooks, 2 deadbolts, and 1 latch, with provisions for top and bottom shootbolts.

Key Features:

• Traditional Design: Maintains the classic 92mm centres while incorporating the unique hook and deadbolt locking points from the Mantis 1 and 2 series, but without rollers.
• Third Generation Lock: The Mantis 3 represents the evolution of Millenco locks, now part of the Yale group, offering standardized measurements of 92mm and 62mm centres (PZ).
• Variants Available: Choose from three configurations:
  • 2 hooks and 3 deadbolts
  • 3 hooks and 2 deadbolts with 2 rollers
  • Passive lock version
• Faceplate Options: Historically available with a 20mm faceplate, the Mantis 3 is now exclusively offered with a 16mm faceplate.

Identification Tips:

Identifying a Millenco Mantis 3 lock can be tricky. Look for the unique hook and deadbolt arrangement at the locking points and measure the centres to confirm they are 92mm/62mm. Early versions may lack branding on the faceplate, so this method is crucial for accurate identification.

Compatibility:

Earlier Mantis 3 locks may have slightly different hook positions, typically within 20mm, allowing for compatibility with older versions with minimal adjustments.

Gearbox Specifications:

• Configuration: Available in a double spindle for lift lever or double spindle nightlatch operation.
• Backset: Fixed at 35mm, with options for either a hook or deadbolt in the main gearbox.
• Dimensions: Gearboxes measure 228mm high by 50mm wide. Hookbolt versions include a central hook bolt that throws downwards (30mm high) and a latch (30mm high), with a 78mm gap between them. The deadbolt version shares these dimensions.
• Ease of Maintenance: Unlike previous models, the Mantis 3 gearbox can be easily removed by unscrewing three fixing screws.

Lock Operation:

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage the locking points.
3. Secure the system by turning the key.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Product Specification

• Manufacturer: Millenco
• Spindle Size: 8mm
• Rollers: 2
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Double 8mm
• Handing: Non handed

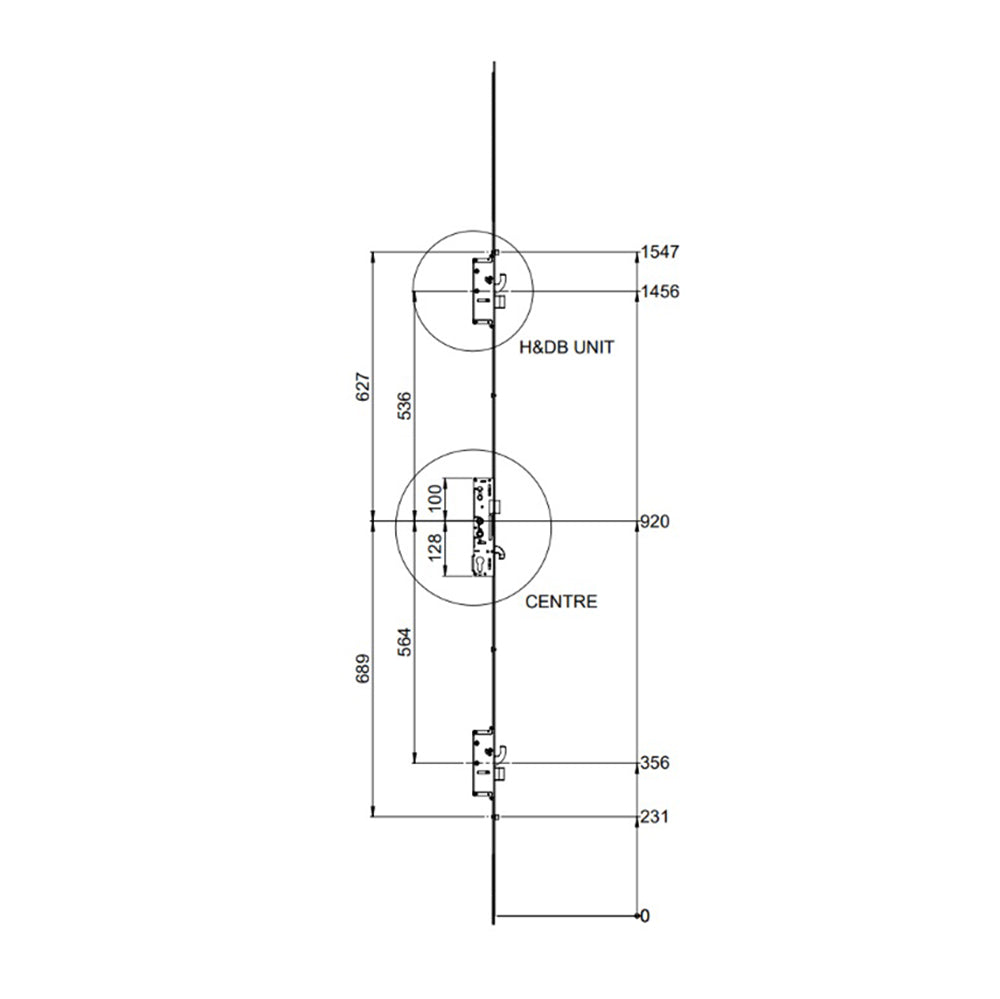

• Distance Between Inner Locking: 1100mm
• Distance Between Outer Locking: 1316mm
• Height: 1990mm
• Door Material: UPVC, Aluminium

Measuring Guidelines:

To ensure accurate measurements for your Millenco Mantis 3 lock, follow these guidelines:

Backset Measurement:
Measure from the edge of the door to the center of the lock cylinder. This distance is crucial for ensuring the lock fits properly.

Centres Measurement:
To measure the centres, determine the distance between the two fixing holes of the lock. This will confirm if your lock aligns with the standard 92mm or 62mm centres.

Faceplate Measurement:
Measure the width of the faceplate where it meets the door. This will help you select the correct faceplate option from the drop-down menu.

Operation Type:
Select the operation type based on how you intend to use the lock. Options may include lift lever or nightlatch operation, depending on your security needs.
