Millenco Mantis 3 Multipoint Door Lock Overview

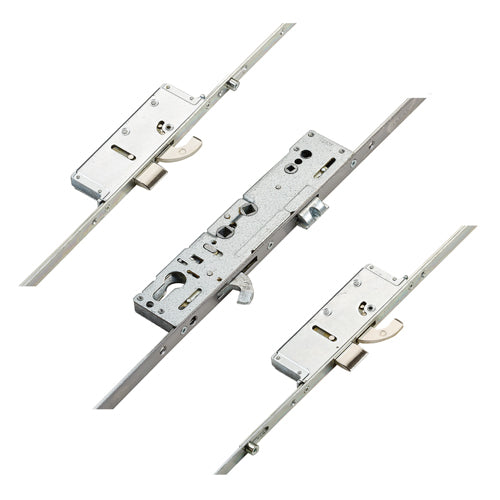

The Millenco Mantis 3 multipoint door lock is designed for enhanced security and durability, featuring a robust configuration that includes 2 Rollers, 3 Hooks, 2 Deadbolts, and 1 Latch. This third-generation lock is part of the Yale group of companies and offers a modern solution for securing your doors.

Key Features:

• Centres: 92mm/62mm
• Distance Between Hooks: 1300mm
• Faceplate Options: Available only with a 16mm faceplate
• Variants:
  • 2 hooks and 3 deadbolts
  • 3 hooks and 2 deadbolts
  • Passive lock version

Identification Tips:

Identifying a Millenco Mantis 3 lock can be tricky. Look for the unique arrangement of hooks and deadbolts, and measure the centres to confirm they are 92mm/62mm. Early versions may lack branding on the faceplate, so checking the locking points is essential.

Gearbox Specifications:

• Configuration: Double spindle for lift lever or double spindle nightlatch operation
• Backset: 35mm
• Dimensions: 228mm high by 50mm wide
• Hookbolt Version: Features a central hook bolt that throws downwards, measuring 30mm high, with a latch also at 30mm high.

Roller Functionality:

Rollers play a crucial role in compressing the door against the frame, aiding in weather sealing and preventing warping. They are adjustable by 1mm for optimal performance.

Operation Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage the locking points.
3. Turn the key to lock the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Product Specification

• Manufacturer: Millenco
• Spindle Size: 8mm
• Rollers: 2
• Hooks: 3
• Deadbolts: 2
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Double 8mm
• Handing: Non handed

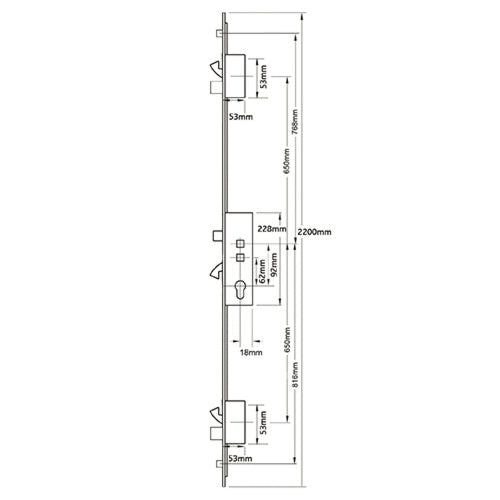

• Distance Between Inner Locking: 1300mm
• Height: 2200mm
• Top Hook to Spindle: 650mm
• Bottom Hook to Spindle: 650mm
• Top Roller to Spindle: 768mm
• Bottom Roller to Spindle: 816mm
• Door Material: UPVC, Aluminium

Measuring Guidelines:

To ensure accurate measurements for your Millenco Mantis 3 multipoint door lock, follow these guidelines:

• Backset Measurement:
  • Measure from the edge of the door to the center of the keyhole.
  • This distance is your backset measurement.
• Centres Measurement:
  • Measure the distance between the centers of the keyhole and the handle hole.
  • Ensure you have both measurements (92mm and 62mm) for confirmation.
• Faceplate Measurement:
  • Measure the width and height of the existing faceplate.
  • Compare with available options to select the correct size.
• Operation Selection:
  • Determine the type of operation you require (e.g., lift lever or nightlatch).
  • Choose the appropriate option from the drop-down menu based on your needs.

By following these steps, you can ensure that your Millenco Mantis 3 lock is installed correctly and functions optimally.
