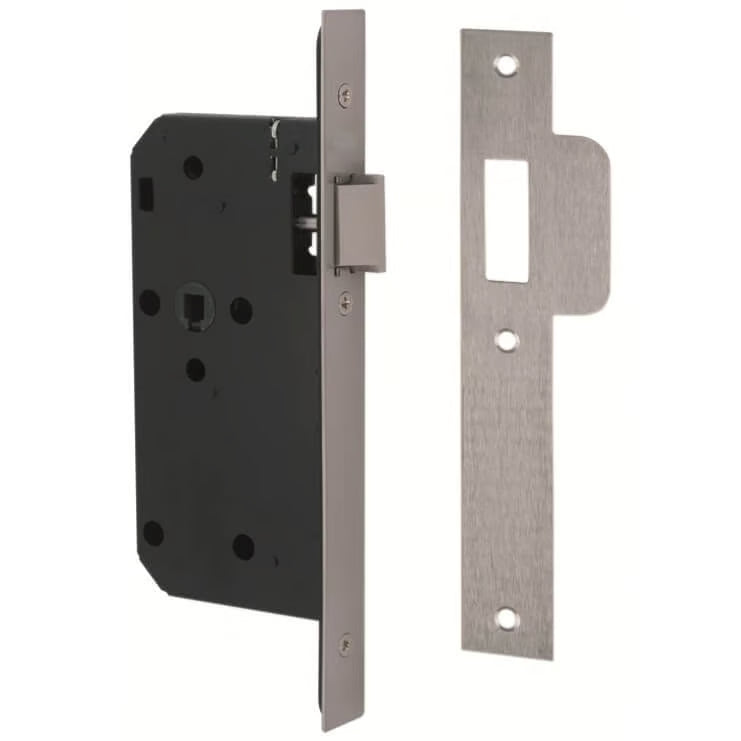

2C23 Upright Mortice Latch

Product Specification

This latch is designed for optimal functionality and compliance with safety standards, making it an excellent choice for various applications.

Key Features:

• Latch Operation: Withdrawn by handle for ease of use.

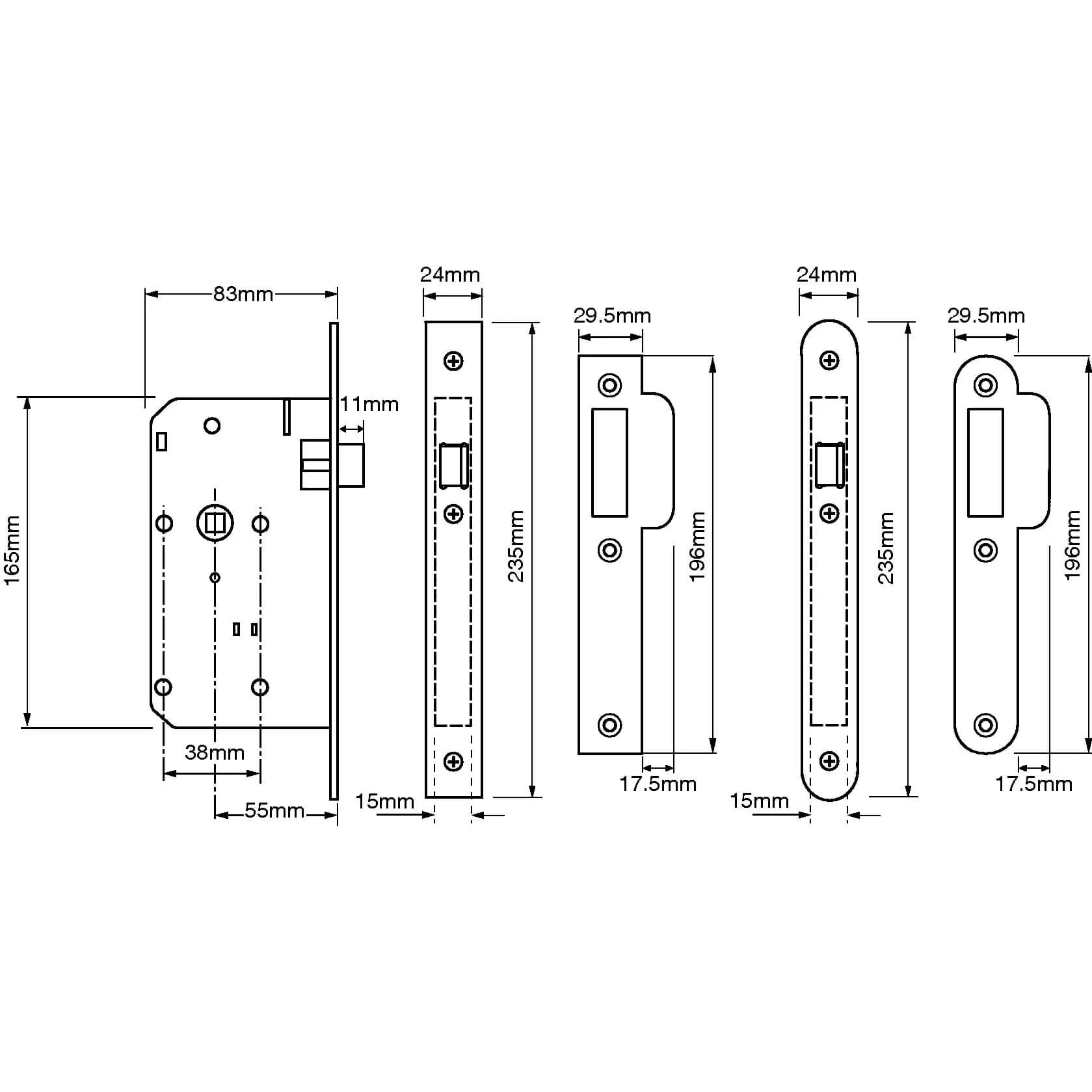

• Faceplate Dimensions: 235mm x 24mm, available in both square and round options.
• Screw Centres:
  • Forend screw centres: 205mm
  • Escutcheon screw centres: 38mm
• Case Dimensions:
  • Height: 165mm
  • Depth: 83mm
• Bolt Specifications:
  • 20mm bolt throw for secure locking
  • 8mm spindle for compatibility with various handles
• Fire Safety Compliance:
• EN 1634-1 assessed for use on 60-minute timber fire doors, ensuring safety in fire situations.
• Accessibility Compliance:
  • Assists in fulfilling duties under DDA legislation.
  • Satisfies BS8300 and Approved Document M (ADM) for accessibility standards.
• Included Accessories:
  • Supplied with a strike plate that matches the faceplate.
  • Accepts bolt-through furniture with 38mm centres.
• Packaging Details:
• Supplied in singles with an outer box quantity of 10 for convenient ordering.
