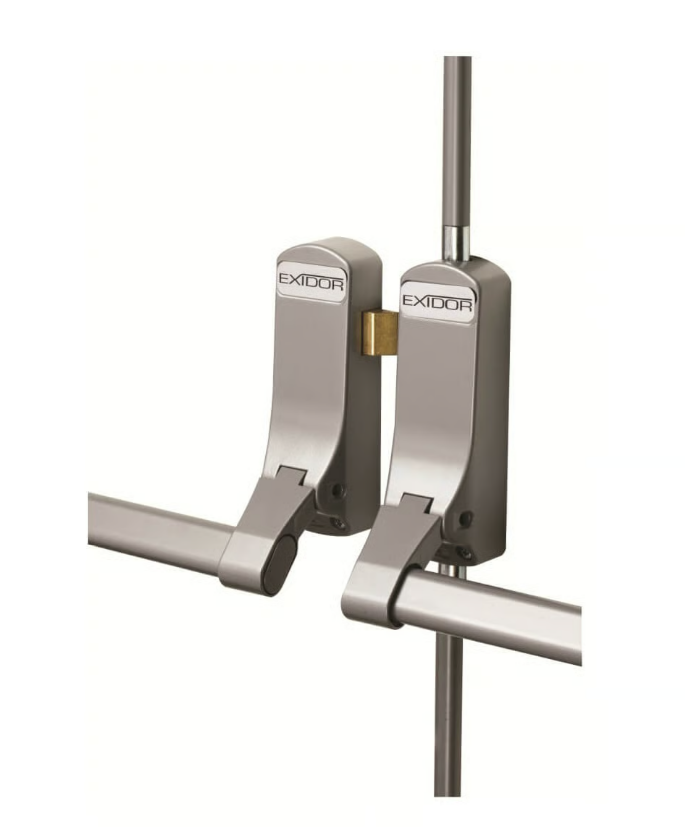

285 Three Point EN1125 Double Rebated Push Bar Set - For Wooden Panic Exit Doors

Product Overview

The Exidor Panic Exit System is designed to ensure safety and compliance in public areas where emergencies may arise. This system conforms to BS-EN1125 standards, providing reliable access during panic situations.

Key Features

• Non-Handed Design: The panic exit system features a reversible latch, making it suitable for both left and right-hand applications, ensuring versatility in installation.

• Complete Kit: This kit includes:

  • Exidor 294 vertical panic bolt
  • Exidor 296 rim panic latch
  • 300 box keep

• Door Compatibility: Available for wooden doors from stock, with metal door options available as a special order.

Product Specifications

• Compliance: Conforms to BS EN1125 standards.
• Dimensions:
  • Height: 159mm
  • Width: 55mm
  • Projection: 80mm
• Maximum Door Dimensions:
  • Width: 1220mm (applicable to each panic bar and door)
  • Height: 2440mm (applicable to each panic bar and door)
• Operation:
  • Push bar to withdraw vertical bolts on the first door.
  • Push bar to withdraw latch on the second door.
• Outside Access Device: Available separately for enhanced functionality.

This panic exit system is an essential safety feature for any public building, ensuring quick and efficient egress in emergencies.
