Latch Mechanism: Withdrawn by a single oval cylinder from the outside and a turn on the inside.
Snib Feature: The snib on the forend can be used to hold the latch back.

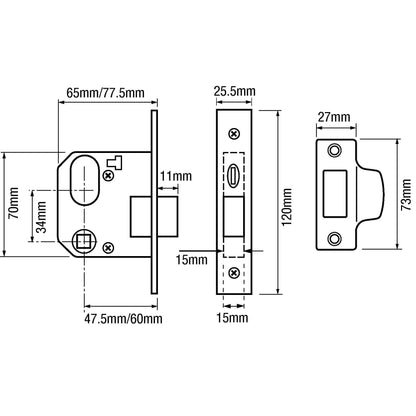

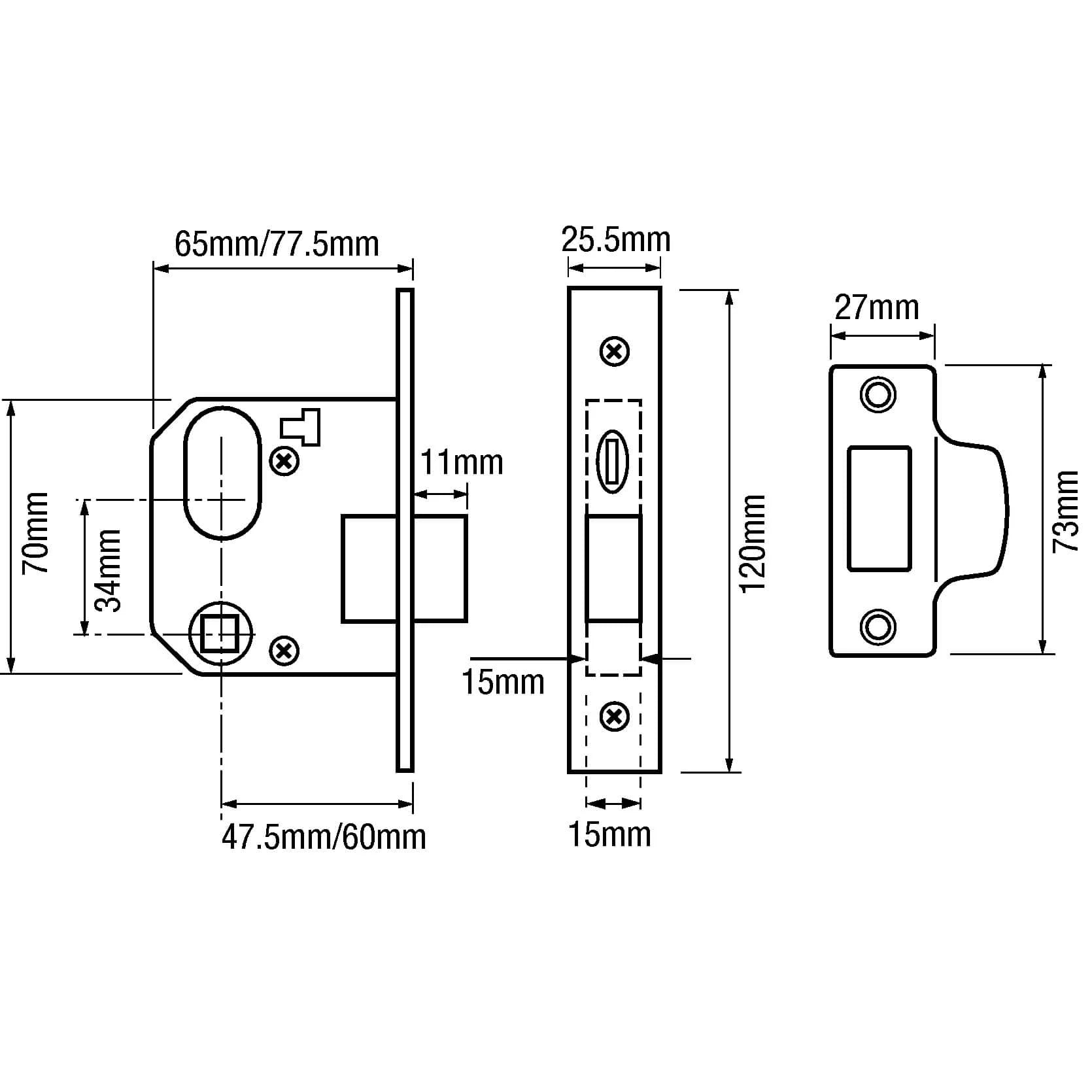

Faceplate Dimensions: 120mm x 25.5mm
Case Dimensions:
Height: 70mm
Width: 65mm or 77mm
Forend Screw Centres: 103mm
Centres: 34mm
Spindle Size: 8mm
Application: Predominantly used on common entrance doors.

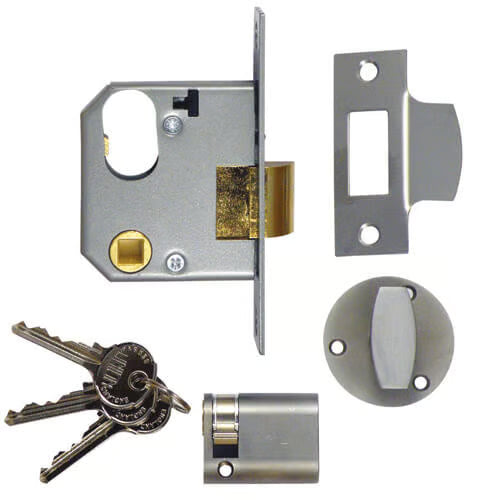

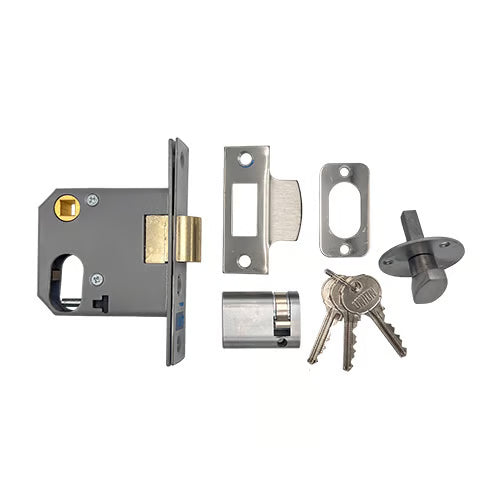

Included Components:
Supplied with a strike plate
Fixings
2X1 half oval cylinder
5203 turn
Cylinder Compatibility: The cylinder supplied can be used with doors up to 48mm thick. For doors exceeding this thickness, use the L2332 case only and specify a larger cylinder.
Packaging: Supplied in singles with an outer box quantity of 10.
