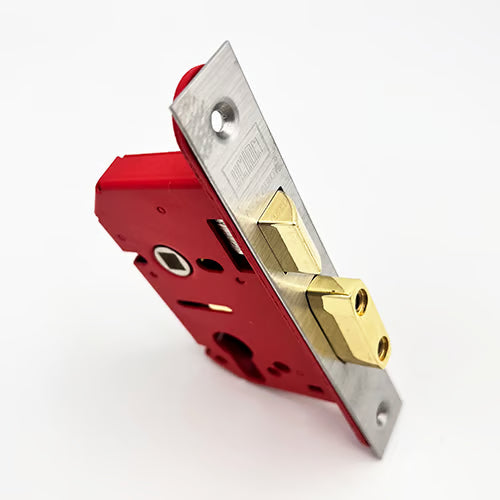

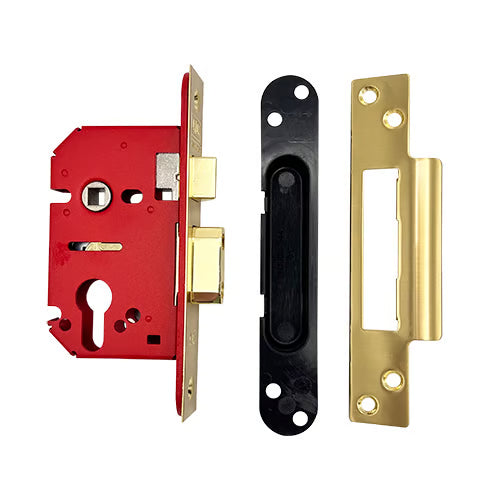

The Union 22EU Strongbolt Euro Mortice Sashlock is expertly crafted for wooden doors up to 54mm thick, ensuring robust security and versatility.
Key Features
Reversible Design: Easily fitted on doors hinged on either side, thanks to the innovative UNION SwitchLatch technology.
Secure Locking Mechanism: The 14mm deadbolt is operated via a euro profile cylinder, featuring hardened steel pins for enhanced resistance against sawing. The bevelled edge on the deadbolt optimizes performance under side load testing.
Professional Finish: A plastic splinter guard ensures a clean installation, while the anti-rattle adjustable strike allows for on-site fine-tuning.

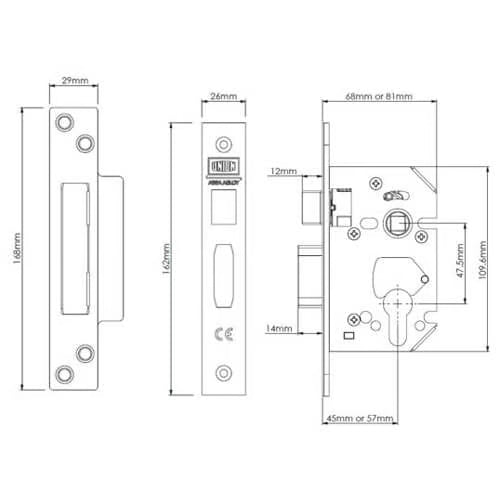

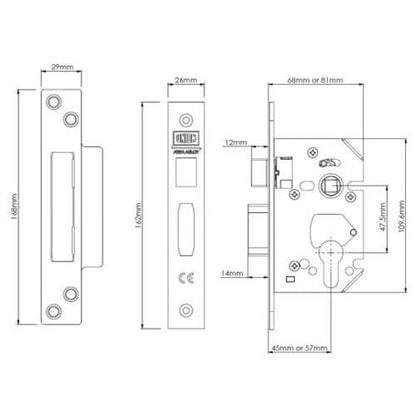

Product Specifications
Faceplate: 162mm x 24mm
Backset: 45mm/57mm
Centres: 47mm
Case Height: 109mm
Case Depth: 68mm/81mm
Box Strike: 168mm x 29mm
Latch Bolt: Zinc reversible
Deadbolt: Zinc with hardened steel rollers
Bolt Throw: 14mm
Packaging: Sold in boxed singles; available in boxed outers of 10
