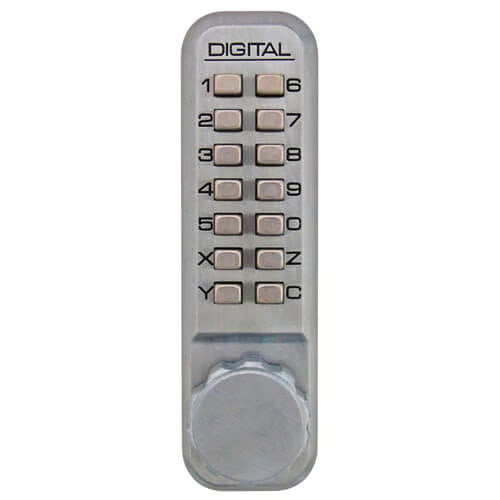

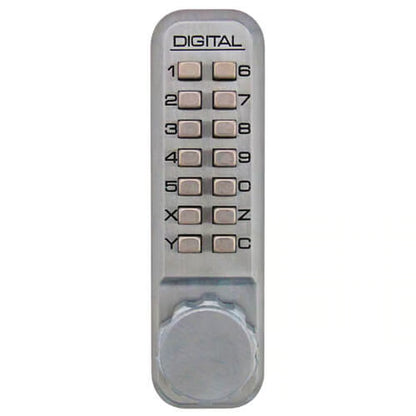

2230 Digital Lock For Use With Panic Hardware or Nightlatches

Product Overview

The Lockey 2230NL front digital lock plate is designed for seamless integration with panic hardware or nightlatches, providing a reliable and secure access solution. This low-duty lockplate is perfect for environments where ease of use and security are paramount.

Key Features

• Operation: Access from the outside is granted via a user-defined code, while the inside can be exited using panic hardware or a nightlatch.

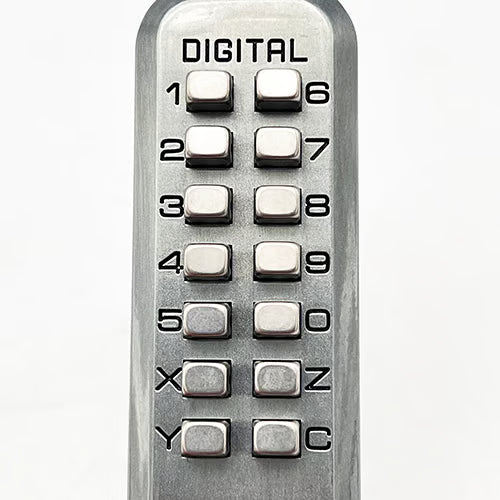

• Design: The front keypad features 14 buttons, allowing for codes ranging from 4 to 6 digits. This setup offers over 2000 unique combinations, ensuring enhanced security.

• Reversible Installation: The lock plate can be installed on either the left or right side of doors, accommodating thicknesses between 35-55mm.

• Security Mechanism: Equipped with a protective clutch mechanism, this lock plate adds an extra layer of security against forced entry.

Product Specifications

• Case Width: 40mm
• Case Height: 142mm
• Suitable Door Thickness: 35-55mm
• Entry Method: Code from outside
• Exit Method: Panic hardware or nightlatch from inside
• Number of Buttons: 14
• Possible Combinations: 2000+
• Code Length: 4-6 digits
• Holdback: No
• Key Override: No
• Code Free Function: No
• Code Change on Door: No
• Handed: Reversible
• Usage: Light duty
• Additional Security: Protective clutch mechanism

This digital lock plate is an ideal choice for those seeking a balance of convenience and security in their locking solutions.
