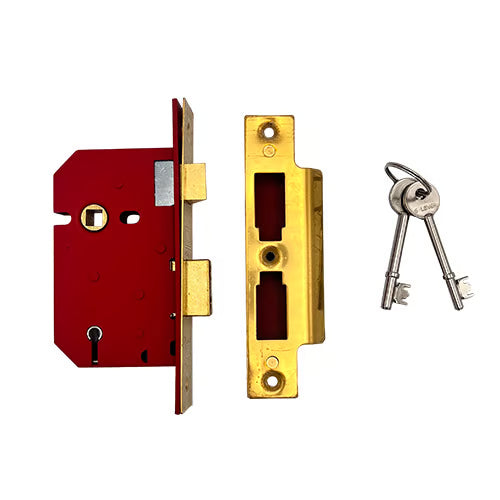

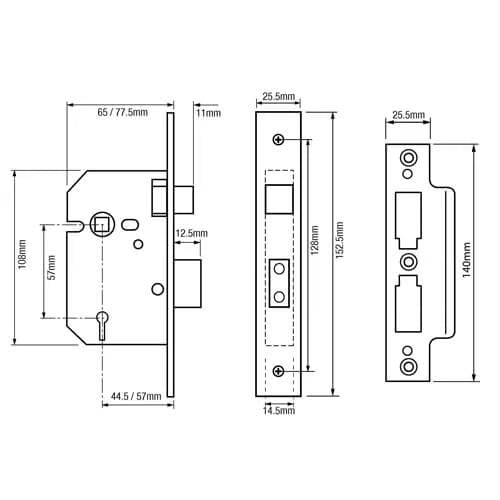

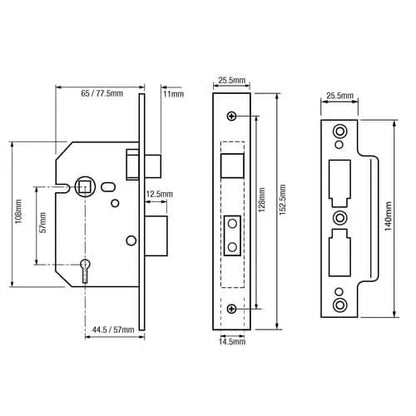

The Union 5 Lever 2201 mortice lock is designed for both internal and external wooden hinged doors, offering exceptional security in a compact size. Measuring just 108mm high, this lock is ideal for retrofitting, ensuring a seamless fit in various door types.
Key Features:
Compact Design: Smaller case size compared to many mortice locks, perfect for retrofits.
Durable Construction: Features a red lock case with unique measurements, hardened steel rollers in the bolt to resist sawing attacks, and a deadbolt throw of 14mm.
Versatile Operation: Can be locked and unlocked from either side using a key, with the latch easily withdrawn by moving the handle.
Security Striking Box: Supplied with a matching finish to the lock faceplate for enhanced security.
Compatibility: Suitable for doors up to 54mm thick, with options for extra long keys for thicker doors.
Non-Handed Design: Can be used on doors hinged on either side, opening inwards or outwards.
Keying Options: Comes with 2 nickel plated steel keys, with the option to cut additional keys or have multiple locks keyed alike.
Fire Safety Compliance: Tested to BS EN 1634-1:2000 and UKCA marked for use on 60-minute fire doors.
Installation Notes:
Ensure the door thickness is adequate for the mortice lock, with a minimum recommended thickness of 44mm.
For new timber doors, consider using Souber’s DBB morticer for efficient installation.
When replacing existing locks, be prepared for potential size differences and adjust the lock hole as necessary.
