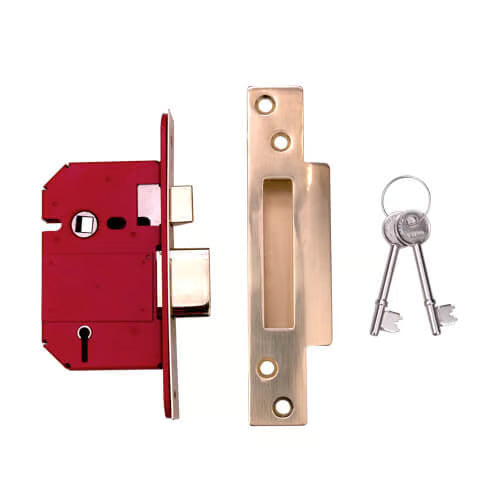

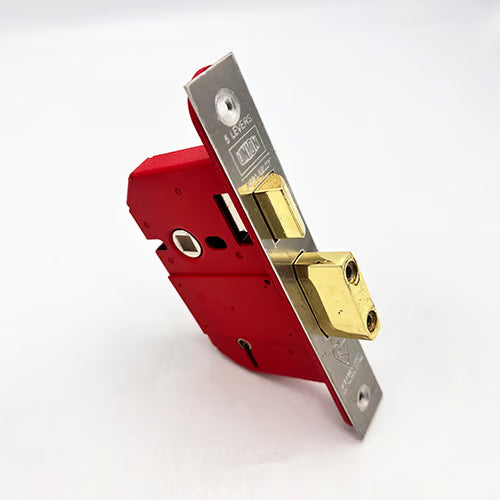

2200 Strongbolt British Standard 5 Lever Mortice Sashlock

Product Overview

The Union J2200 StrongBOLT BS3621 mortice sash lock is a top-tier choice for security, combining robust design with ease of installation. Part of the renowned StrongBOLT range, this lock has gained popularity for its reliability and performance since its launch.

Key Features

• Design & Installation: Features radius inner forends for straightforward first fit installation or retrofitting, matching the footprint of many UK first fit products. This eliminates the need for extra tooling or carpentry, saving time and preserving the door's aesthetics.
• Security Standards: Complies with British Standard BS3621:2007, undergoing rigorous testing to ensure high security. Equipped with 5 levers, anti-drill, and anti-saw features, it offers exceptional protection.

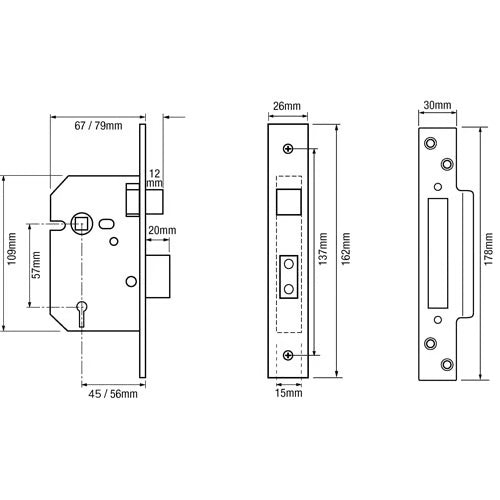

• Unique Identification: While it shares a red lock case with other mortice locks, it has distinct measurements. Refer to the line drawing for specifics.
• Finish Options: Available in polished brass or satin chrome.
• Deadbolt Features: The deadbolt throws at least 20mm for positive deadlocking and enhanced resistance against attacks, with anti-saw features included.
• Operation: Can be locked and unlocked from either side using a key, with the latch withdrawn by moving the handle.
• Security Striking Box: Supplied with a matching security striking box to meet BS3621 requirements.
• Versatile Fit: Suitable for doors up to 54mm thick, with options for extra-long keys for thicker doors. Non-handed design allows use on left or right-hinged doors, opening inwards or outwards.
• Keying Options: Comes with 2 keys as standard, with additional keys available. Locks can be keyed alike for convenience.

Compliance & Testing

Many insurance companies require locks on external doors to comply with BS3621 or BS8621. Always verify with your insurance provider. The lock features the BSI kitemark on the faceplate, confirming compliance.

Technical Specifications

• Product Category: Mortice Sashlock
• Product Type: British Standard
• Case Colour: Red
• Handle Piercing Size: 38mm
• Case Height: 109mm
• Centres: 57mm
• Faceplate Height: 162mm
• Faceplate Width: 26mm
• Deadbolt Throw: 20mm
• Follower Size: 8mm
• Keys: 2
• British Standard: BS3621:2007
• UKCA Marked: Yes
• CE Marked: Yes
• Certifire Approved: Yes
• Fire Rated: 60 mins
• Can be Keyed Alike: Yes
• Handed: Non-handed
• Escutcheon Plates Supplied: No
