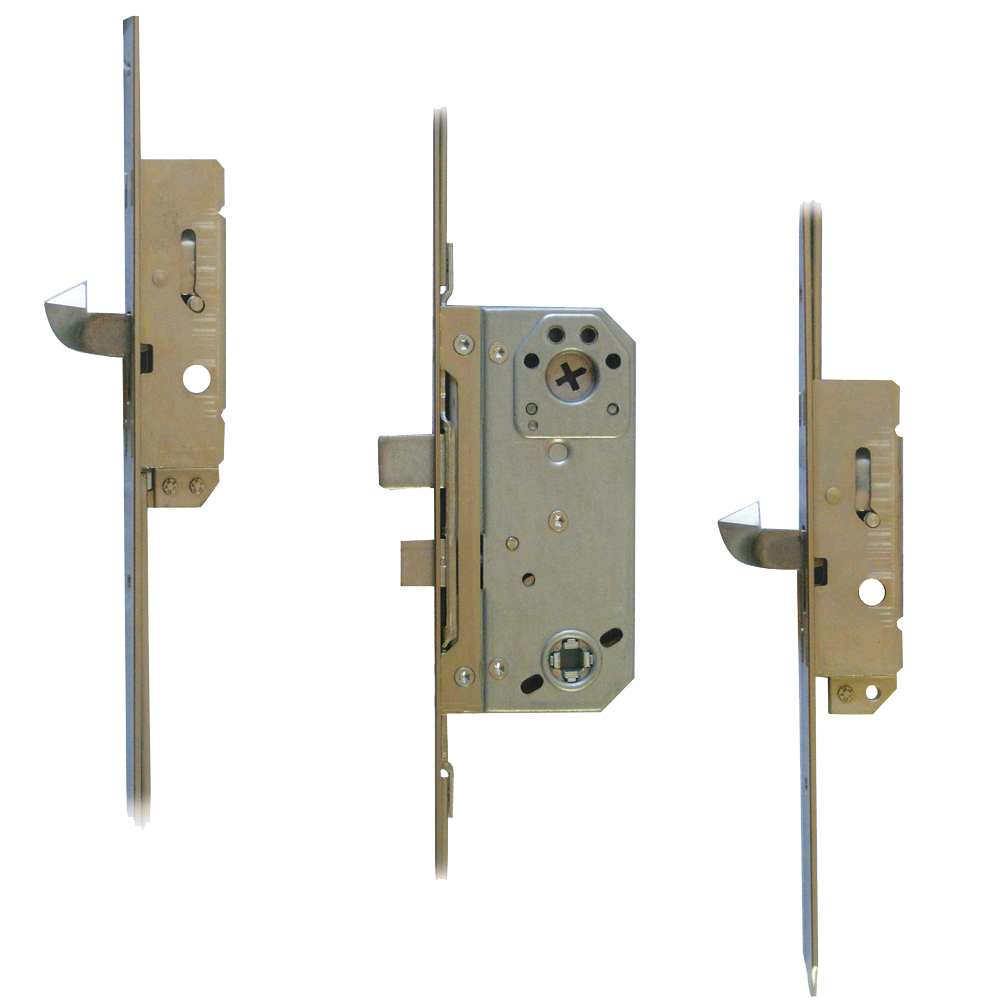

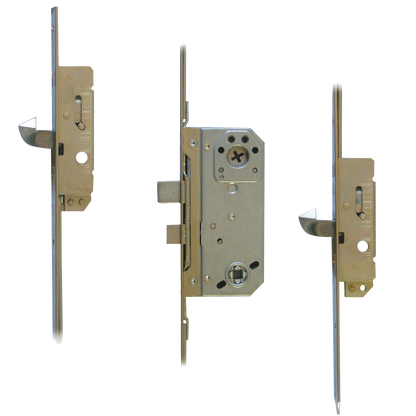

2025 Lever Operated 105PZ Latch & Deadbolt Scandinavian Cylinder With 2 Hooks

The FIX 2025 Lever Operated 105PZ Latch & Deadbolt Scandinavian Cylinder with 2 hooks is designed for robust security and ease of use. Here’s a detailed overview of its features and specifications:

Key Specifications

• Backset: 50mm
• Centres: 105mm
• Case Height: 150mm
• Case Width: 72mm
• Spindle: Single spindle
• Locking Mechanism: Latch & deadbolt centre case

Identification Features

This lock is easily identifiable by its unique characteristics:

• Cylinder Operation: Scandinavian oval cylinder
• Deadbolt: Small centre-case deadbolt
• Locking Hooks: Unusually long locking hooks
• Spindle Position: Located below the cylinder at the bottom of the lock case
• Faceplate Markings: May be stamped with FIX or ASSA ABLOY

Gearbox Details

• Type: Latch & deadbolt gearbox
• Spindle: Single spindle
• Dimensions:
  • Case Height: 150mm
  • Case Width: 72mm

Additional Locking Points

In addition to the internal locking points, the full-length strip includes:

• Hook Locking Points: 2 hook locking points for enhanced security

Faceplate Specifications

• Width: 25mm radius
• Length: 1700mm
• Application: Suitable for composite and timber applications

Locking Point Distances

• Distance A: 780mm
• Distance B: 670mm

Croppable Information

• Note: This unit cannot be cropped on site. Ensure the required unit length is confirmed before purchasing.

Handing Instructions

To reverse the latch for different handing:

1. Remove the two machine screws from the side of the faceplate.
2. Reverse the latch to the desired handing.
3. Refit the faceplate and secure it with the screws.

Sprung/Unsprung Mechanism

• Type: Sprung gearbox
• Function: Incorporates an internal spring mechanism to assist with lever return, eliminating the need for sprung handles or a separate spring cassette.

Operation Instructions

• Locking Method:
  • Lift the lever to engage the locking mechanisms.
  • Turn the cylinder one full turn to lock.
• Unlocking Method:
  • Turn the cylinder one full turn, then push down on the lever to unlock.

Features Summary

• Operation:
  • Lift lever to engage locking mechanisms, then one full turn of the cylinder to lock.
  • One full turn of the key followed by pushing down on the lever to unlock.
• Faceplate: 25mm wide
• Mechanism: Latch & deadbolt
• Profile: Scandinavian profile lock case

This comprehensive overview ensures you have all the necessary information for the FIX 2025 lock, making it an excellent choice for security needs.
