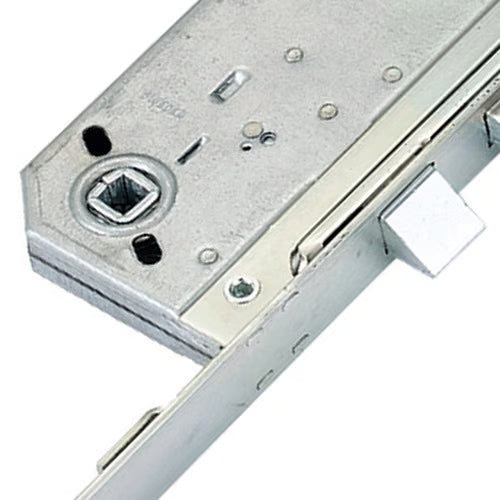

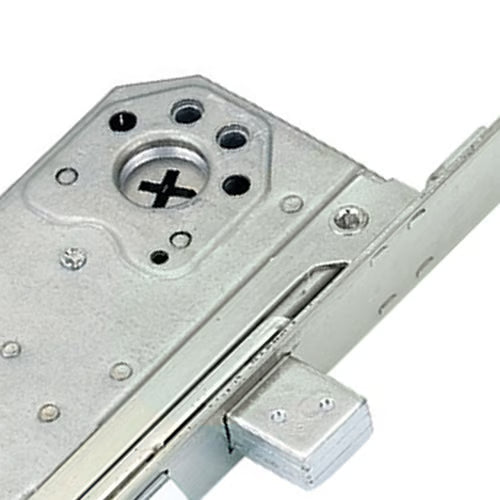

2025 Latch Deadbolt 2 Hooks Lift Lever Multipoint Door Lock (Scandinavian Cylinder Version)

Product Overview: FIX Multipoint Door Lock

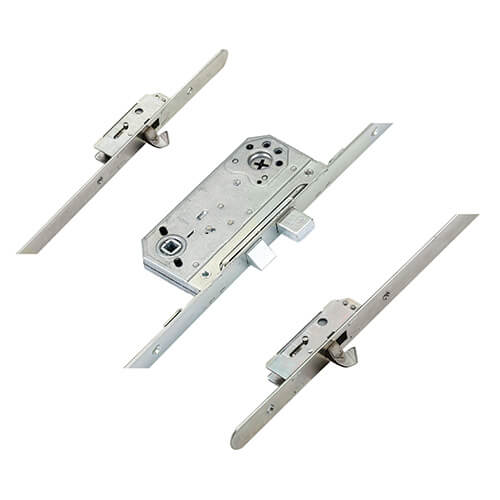

The FIX multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch. This lock is versatile and can be identified by the FIX2025 or Yale stamp on the faceplate.

Compatibility and Replacement:

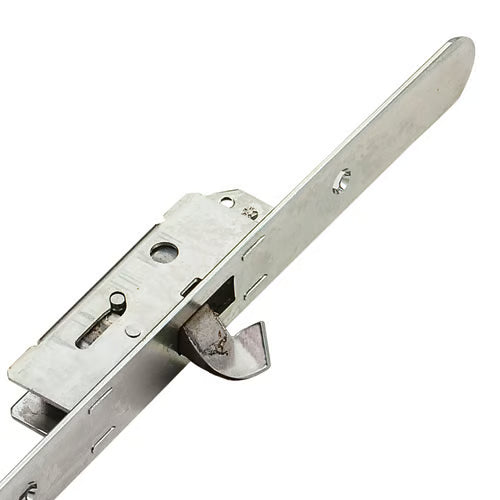

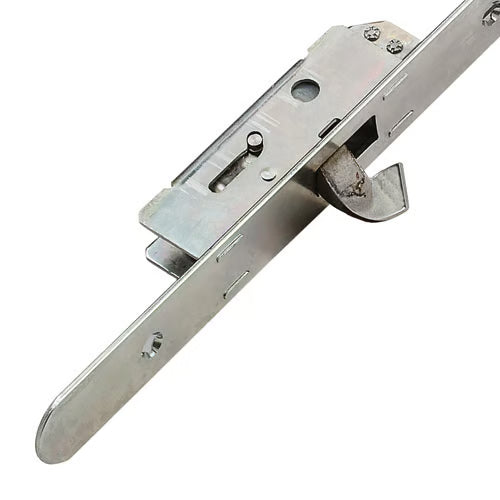

This lock serves as a replacement for the FIX2150 and FIX2151 models, with some necessary adjustments. Certain models may have specific hook positions, and custom orders are available for made-to-measure options. Note that earlier versions of this lock utilized wedgebolts instead of hooks.

Unique Features:

Manufactured in Sweden, FIX multipoint locks are known for their unique configurations. The 2025 series remains the only model currently available, featuring two hooks spaced 1445mm apart. Previous models may have different locking point positions, and Fix offers a bespoke service to accommodate various specifications, which may require some modifications to the door.

Specifications:

• Models: FIX 2025, 2150, 2151
• Fitting: Primarily for timber doors
• Backset: 50mm
• Centres: 105mm
• Faceplate: Flat 25mm with round ends
• Operation: Swedish oval cylinder

Locking Mechanism:

To Lock:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to secure the locking points and the main deadbolt (if applicable).

To Unlock:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Latch Reversal Instructions:

To reverse the latch, follow these steps:

1. Unscrew the 2 screws on the side of the lockcase nearest to the faceplate.
2. Remove the gearbox from the strip.
3. Twist the latch to reverse it.
4. Reconnect the case to the faceplate.

Associated Products:

We offer a variety of associated products for the FIX 2025 multipoint door locks, including keeps, spindles, handles, and other accessories.

This lock is suitable for various applications, including UPVC, aluminum, timber multipoint, and composite doors, ensuring a secure and reliable locking solution for your needs.

Product Specification

• Manufacturer: FIX
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1445mm
• Height: 1820mm
• Top Hook to Spindle: 770mm
• Bottom Hook to Spindle: 675mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines

Backset Measurement:
To measure the backset, take a ruler or tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring the lock fits properly.

Centres Measurement:
To measure the centres, measure the distance between the center of the keyhole and the center of the handle hole. This will help you determine the correct PZ measurement for your lock.

Faceplate Measurement:
To measure the faceplate, measure the width and length of the existing faceplate on your door. This ensures that the new faceplate will fit seamlessly into the door frame.

Operation:
The operation of the lock refers to how the locking mechanism is engaged and disengaged. This can vary based on the type of cylinder used and the specific design of the lock.
