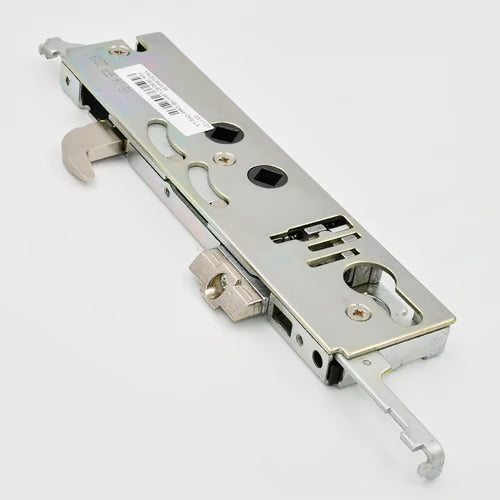

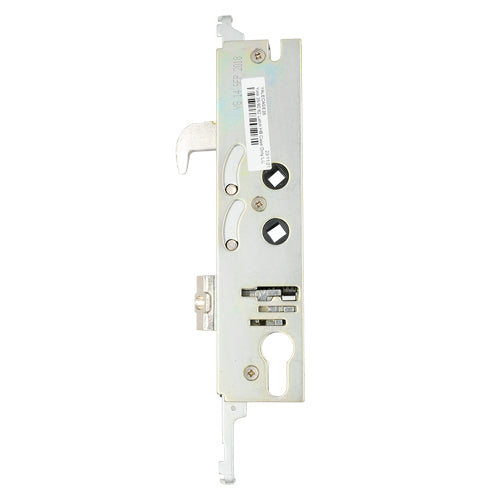

The Yale G2000 series gearbox is engineered with a unique hook configuration positioned above the latch, ensuring enhanced security and functionality. This gearbox is specifically designed for use with Yale cylinders, and compatibility with cylinders from other brands may be limited.
Key Features:
Snib Mechanism: The gearbox includes a snib that is activated by a cam when the key is turned, providing an additional layer of convenience and security.

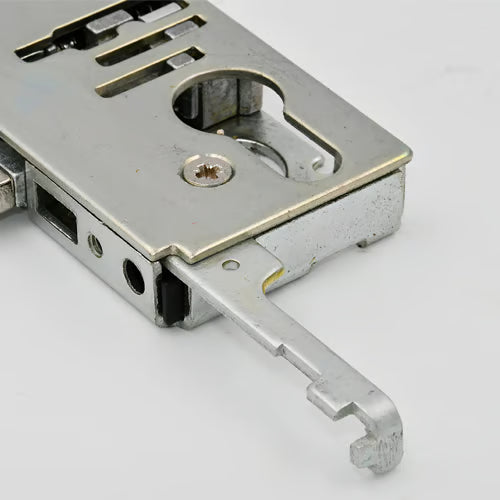

Distinctive Layout: The G2000 lock's distinctive design features the hook above the latch, a hallmark of Yale's innovative approach to locking mechanisms.
Replacement Options: As Yale no longer manufactures these locks, the most effective solution for maintenance is often to replace the gearbox.
Color Identification: If you are replacing a gearbox, note that the original gearboxes were typically yellow or gold due to yellow chromate plating. However, all replacement gearboxes, whether genuine or replicas, are now available in silver.
Specifications:
Dimensions: The G2000 gearboxes measure 194mm in height and 52mm in width. The latch measures 30mm high, with a distance of 55mm from the top of the latch to the bottom of the hook.
Additional Products:
We offer a comprehensive range of associated products for the Yale G2000 series, including:
Multipoint door locks
Keeps
Spindles
Handles
Accessories
Operation: The gearbox can be operated using a lift lever or a double spindle mechanism, providing versatility for various door configurations.
For any questions or to learn more about our products, don't hesitate to contact us!
