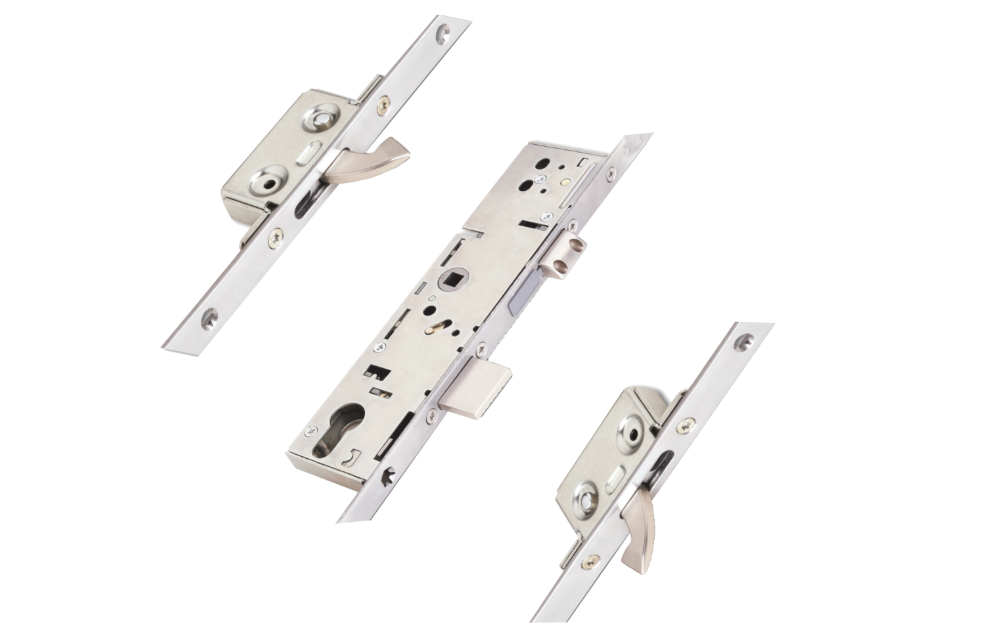

2 Small Hooks Split Spindle Latch & Deadbolt With 16mm Radius Faceplate

Introducing the ERA 2 Small Hooks Split Spindle Latch and Deadbolt Multipoint Lock, designed for enhanced security and versatility. This lock features a robust 35mm backset and is equipped with a 16mm radius faceplate, making it perfect for UPVC and composite doors.

Key Features:

• Accreditation: Complies with PAS24 for security standards.

• Distinctive Design: The faceplate is stamped with the ERA logo and includes small hook locking points for added security.

• Gearbox Specifications:

  • Case Height: 220mm
  • Case Width: 53mm
  • Split spindle operation for seamless functionality.

• Additional Locking Points: Incorporates 2 small hook locking points along the full-length strip for enhanced security.

• Locking Point Distances:

  • Distance A: 616mm
  • Distance B: 633mm

• Croppable: Note that this unit cannot be cropped on site; please verify the required length before purchasing.

• Handing: Easily reversible latch by removing screws and rotating the latch.

• Sprung Mechanism: The gearbox is sprung, featuring an internal spring mechanism that aids in lever return, eliminating the need for separate spring handles.

Operation Instructions:

1. To Lock: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn.

2. To Unlock: Turn the key one full turn and push down on the lever.

Additional Information:

• Suitable for: Timber and composite doors.
• Operated by: Euro cylinder (not included).
• Snib Facility: Offers convenience and ease of use.
• Non-handed: The lock is versatile and can be adjusted to fit either hand.

This multipoint lock combines security, functionality, and ease of installation, making it an ideal choice for your door locking needs.
